Summary of Contents for Toto WH173BT Series

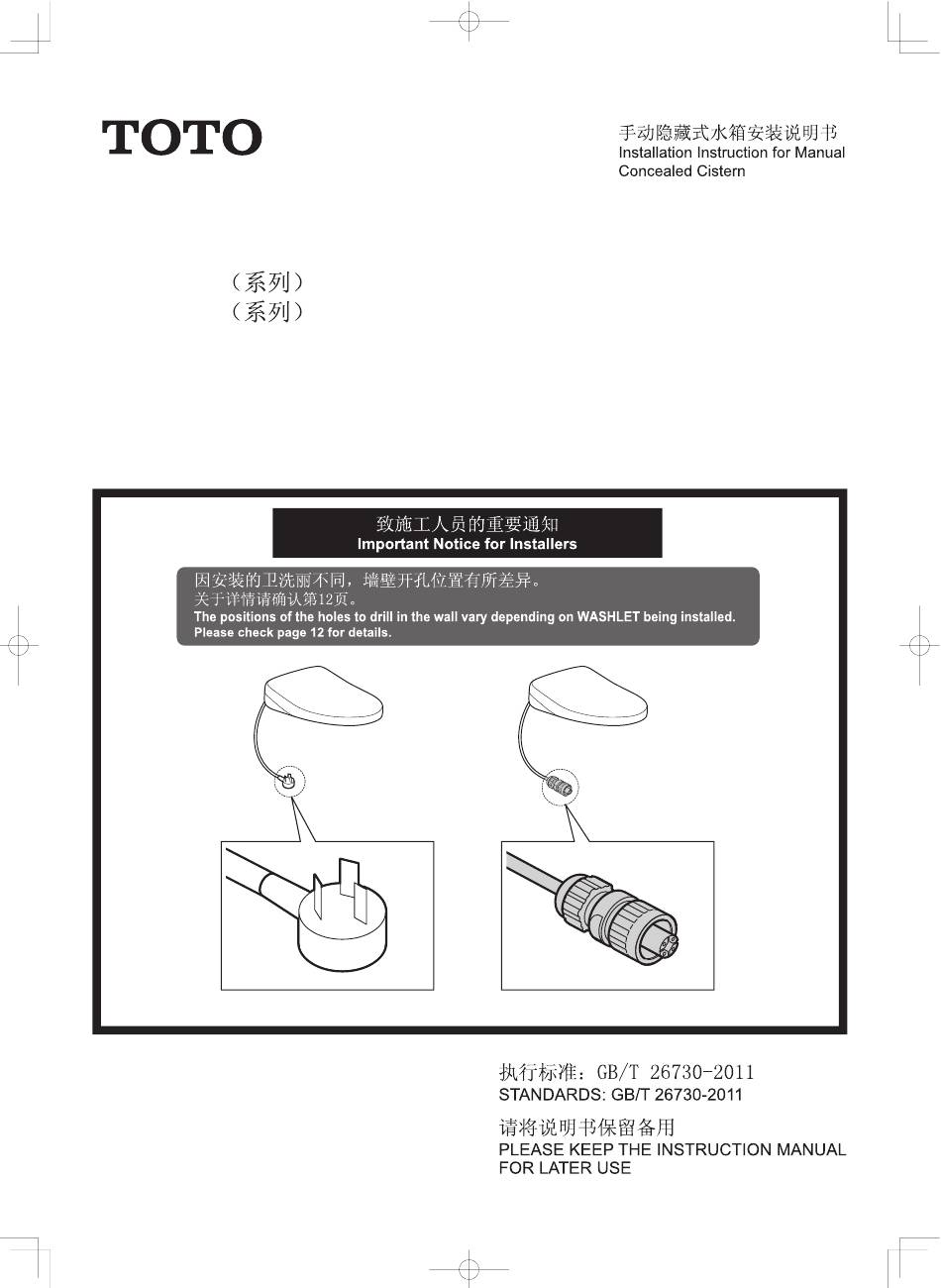

- Page 1 WH173BT WH172AT WH173BT series WH172AT series WH173SGT 563415-3 2021.08...
- Page 2 Cautions 提示: Caution: Neglecting this sign may result in misunderstanding of the installation instructions, which can lead to injuries or damage to property. 重要提示： Important: 1. Functions of the manual concealed cistern: storage water, inlet and outlet calve vessel, frame of wall-hung toilet, The function reflected in the manual actuator panel instructions.
-
Page 3: Self Diagnosis And Troubleshooting
Self diagnosis and troubleshooting 温馨提示： Note: Users may fix the problems on their own if the corrective action is to be taken by the user according to the chart below. Non-professionals are prohibited from disassembling and repairing the product. Please contact the relevant professionals for futher troubleshooting to avoid aggravating the problem. - Page 4 是否有配套与购买陶瓷的型号有关。 Optional. Depends on the Toilet No. being purchased.
-
Page 5: Included Parts
Included Parts Check to make sure you have all these parts from the package: Parts in Bag 1 In Wall Tank (Carrier) Installation Outlet Pipe Inlet Pipe Manual Mud Guard Mud Guard Push Plate Rough In Push Plate Rough In Installation Template Parts in Bag 2 Parts in Bag 3... - Page 6 * 便器安装高度请参阅便 器规格清单。 * WC height depends on the models, please check WC spec sheet. 410(400*)
-
Page 7: Installation Procedure
Installation procedure 安装排水管: Install the discharge pipe 安装墙脚固定块、调整地板固定支架: Install Angle Fixture and adjust floor-fixing bracket 170: Bolt length of 75 mm Horizontal 170: Bolt length of 120 mm 安装墙脚固定块。 Vertical Install Angle Fixture. 调整地板固定支架。 Adjust floor-fixing bracket. 安装分歧管。 Sealing Tape Install the branch pipe. - Page 8 安装上支架: Install the upper bracket 130mm 110mm 85mm 65mm 位置2 位置2 位置1 位置1 Position 2 Position 2 Position 1 Position 1 提示 : 排污管侧向安装角度一般不超过 45° ， 否则很可能会影响排污效果。 Note: The drainage function may be affected when the installation angle of drainage pipe exceed 45° 110/130...
- Page 9 在主墙和地板上标记:（ 10X深60） 膨胀螺栓的使用方法: Draw on the main wall and floor Install Anchors 4 9 0 10mm As shown on picture: 6 5 0 1. Drill 10*60; 2. Insert anchor; 1 1 6 5 深60mm Depth 60 mm F F L 调节支架的水平和垂直，并锁紧螺栓：...
- Page 10 安装角阀： Install the Angle valve Sealing Tape “Click” “Click’’ “Click’’ “Click” “Click’’ “Click’’ 安装供水管 Install the water supply pipe Sealing Tape...
- Page 11 预留推板安装： Install Plug For the fixing of the long screw, there are two groups of screw holes on the bracket which are of different distance. Please choose the right position according to the size of the toilet bowl. “Click’’ “Click’’ Important remind: When the concealed tank fixed completely, it is important to test leaking with water upon 12 hours before fixing wall.
- Page 12 因安装的卫洗丽不同，墙壁开孔位置有所差异。 The positions of the holes to drill in the wall vary depending on WASHLET being installed. 电源插头形状可能随国家/地 区不同而有差异。请确认现 有的电源插头的形状能否保 证正常安装。 Power plug shape may vary by country. Please confirm which Power plug shape you have for 如果是配有上述插头的卫洗丽， correct installation. 请前往第14页。...
- Page 13 2 2 6 m 2 2 2 ~ P l a t e P u s h 1 4 0 m 1 3 6 ~ >0...
- Page 14 2 2 6 m 2 2 2 ~ P l a t e P u s h 1 4 0 m 1 3 6 ~ >0...
- Page 15 是否有配套与购买陶瓷的型号有关。 Optional. Depends on the Toilet No. being purchased.
- Page 16 维修保养 Servicing procedures 更换冲水阀 Replacing the Flush Valve Remove the splash guard and pull it out. Close the shutoff valve in the tank, and then push the button on the actuator to flush the water. Push on the tab to remove the actuator. Tilt the two pull-up rods of the flush valve to the right.
- Page 17 清洁进水阀滤嘴 Cleaning the Filter of the Fill Valve 按上述操作，关闭进水角阀，然后拆下进水阀。 如图A所示，拆开进水阀，然后用水清洗图A过滤网， 或者用刷子清除污物。 按照与上述相反的步骤操作，便能将进水阀安装回原 来的位置。 1. Close the water shutoff valve, and then remove the fill valve as described above. 2. As shown in pic A, disassemble the fill valve and clean the filter screen in FIG.
- Page 18 墙壁面板详细尺寸。 Detail dimensions for wall Panel. 180mm Ø64mm Ø19mm Ø19mm 接线盒孔 Electrical Box Hole Ø114mm Ø40mm 78mm 最小340mm-最大460mm min.340mm-max.460mm...
- Page 19 墙壁面板详细尺寸。 Detail dimensions for wall Panel. 180mm Ø64mm Ø19mm Ø19mm Ø24mm Ø114mm Ø40mm 78mm...
- Page 20 101, Kamla Executive Park, Opp. Vazir Glass Works, PVT. LTD Off. Andheri Kurla Road, Andheri (East), Mumbai 400 059, India. Phone : +91-22-4022-3717 / 3718 Fax : +91-22-4022-3719 http://asia.toto.com/ TOTO VIETNAM R. 810, Daeha Business Centre, 360 Kim Ma St., Ba Dình Dist., Ha Noi City Co., Ltd.
