Toto EGO II TX442SESN Manual

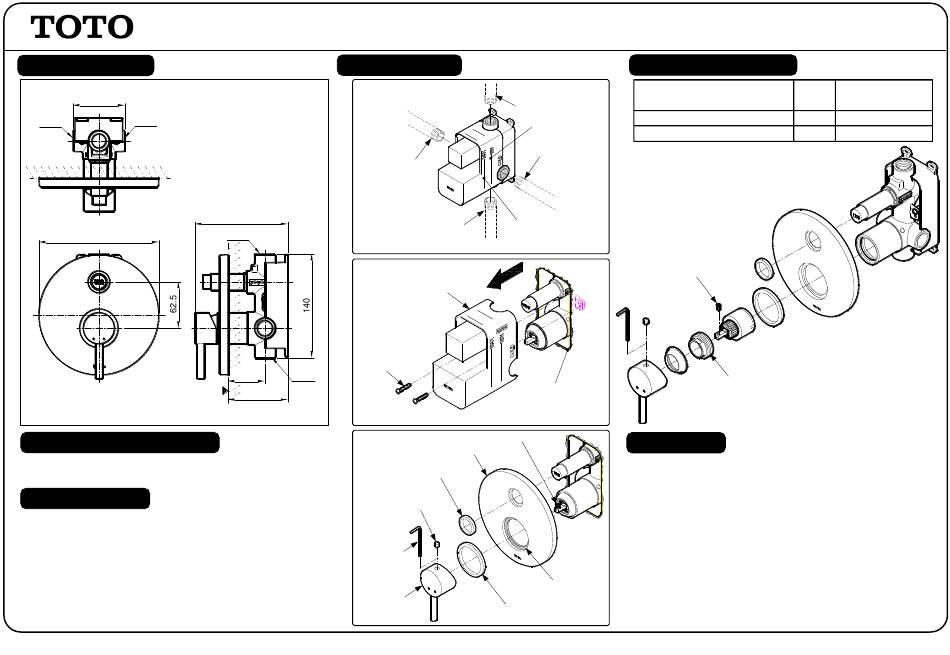

SPECIFICATIONS
70
G½
G½
Ø162
WALL
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and are
not recommended for cleaning
S06243S
INSTALLATION
1.
Hot Water
Supply *
126
To Bath Spout *
G½
* Pipe supplied by owner
2.
Bolt
0
50 G½
-20
0
81
-20
* Remove the cover after the mortar dry
3.
Ring w/ O-ring
Index
Hex. Key
Handle

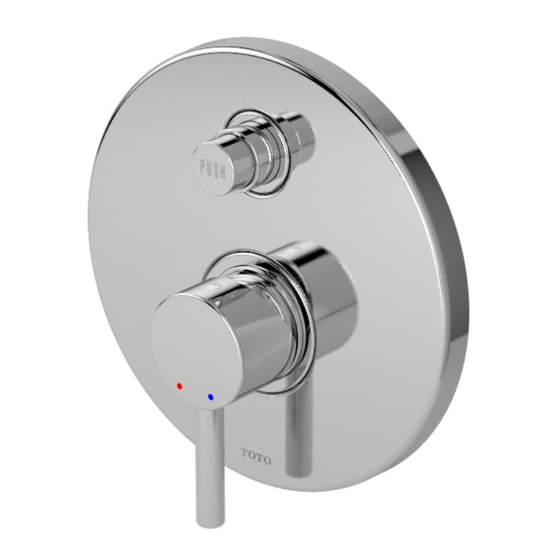

"EGO II" SINGLE LEVER BATH & SHOWER MIXER
To Shower Head *
Minimum
Mortar Level
Cold Water
Supply *
Maximum
Mortar Level
Cover *
Mortar
Bolt
Flange
Packing
Ring w/ O-ring
W/ DIVERTER
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Water leaks around the handle
Handle is loose
2. BOLT
1. CONNECTING NUT
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
TX442SESN
SOLUTION
1 Tighten
2 Tighten
R7
