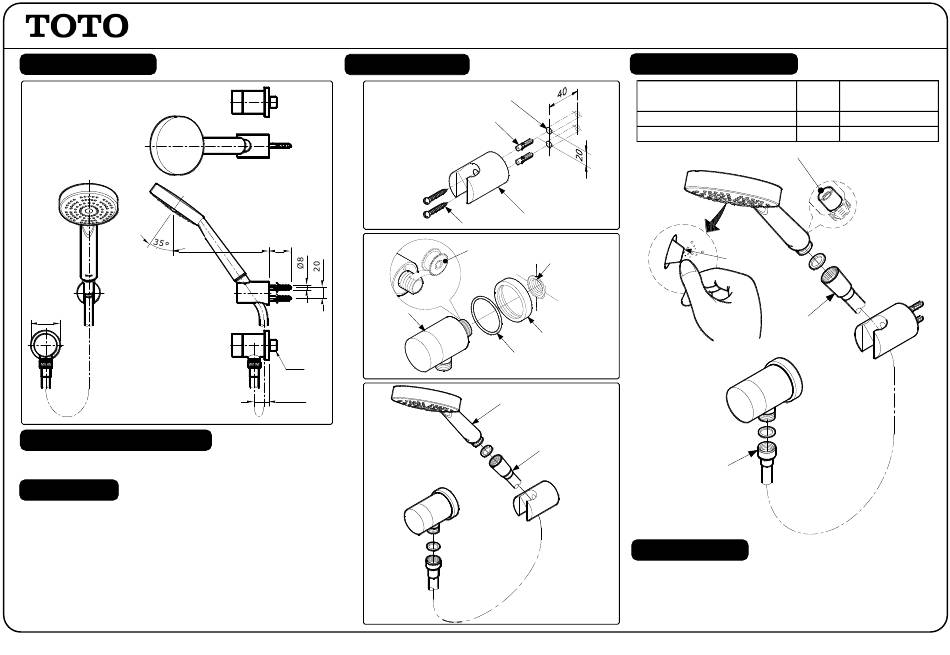

Toto JAZZ TX472SJZ Quick Start Manual

SPECIFICATIONS
Ø54
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. Flow Regulator should not be remove because it could
damage the system
As the product model is constantly updated, the actual
3.
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S060053Z
"JAZZ" HAND SHOWER W/ WALL OUTLET TX472SJZ
INSTALLATION
1
2
(177)
40
Elbow
G½
3
27.5
2 X Ø8
Holes
Sleeve Anchor
Hanger
Screw
Use Seal Tape
(Not Include)
Water Supply
Cover
O-Ring
Hand Shower
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
2
Water leaks around the hose
Flow Regulator Inside
(Don t remove)
1. NOZZLES
2. NUT
3. NUT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
SOLUTION
Clean
Tighten
R5
