Toto CONCEALED TANK Installation Instructions Manual

THE INSTALLING INSTRUCTION FOR CONCEALED TANK
80mm 300kgf
FFL
Accessories List:
8.1
9
NO.
NAME
1
Expansion bolt components
Protection frame
2
3
Protection cover
Clamp
4
5
Drainage pipe
6
Flush pipe
Drainage straight pipe components
7.1
7.2
Flush straight pipe components
Long bolt
8.1
8.2
Transparent long bolt shield
8.3 Long bolt components
9
Plug
Angle valve
10
5
4
8
8.2
7.1
8.3
Important remind:
Please read through this Instructions carefully prior to installation,
1.
and our company shall not be responsible for any loss caused by
not installating accrding with this Instructions. There are lubricants
in production for toilet bowl installation.
2. Please confirm the FFL according to the overall indoor fitment
method. Line out the FFL on the wall and always regard FFL as
datum line of 0 height.
Please confirm the wall is the main wall ,the thickness exceed
3.
80mm and it can bear more than 300kgf strength when the
strength act on the front of toilet bowl.
Note:
1.Please install the frame before paving the tiles. The dimensional unit
is millimeter.
2.Please subject to the object as right if it is not in conformity with the
components in picture.
FFL of finish face, all dimension is millimeter
B
7.2
A
A.B
Straight flush pipe of some products are
offered with two kinds of seal gaskets A.B
which can be selected according to toilet
bowl type during installation.
FUNCTION
QTY
4 To fix frame
1
For space reservation of push button plate when building the wall
1
To prevent sundries falling into the tank when fitment
1
To fix drainage pipe
1
To drain
1
To supply water to flush
1
To connect the bended pipes to toilet bowl
1
2

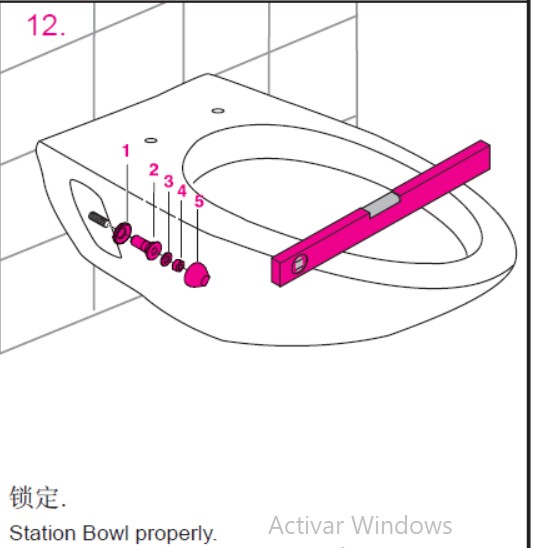

To fix toilet bowl
2
To shield long bolt
2 To fix toilet bowl
1
To reserve space for straight pipes when laying bricks
1 On-off For Filling Water
main wall
563303 13-1.0
300kgf
0
FFL
