Kusam-meco KM 076 Operation Manual

An ISO 9001:2008 Company
SPECIAL FEATURES :
TM
— AmpTip low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
—
MAX/MIN/AVG Recording mode (Auto ranging)
—
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
—
Display Hold & Non-Contact EF-Detection (NCV)
—
Back-lighted easy-to-read LCD display
—
Fast 80ms Peak-RMS mode to capture in-rush currents
— Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode
— 3-Phase Rotation-R for MAINS supply (Probe contact)
— 3-Phase Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)
GENERAL SPECIFICATIONS :
í Sensing : AC;
True RMS
í
Jaws Opening size & conductor diameter : 30mm Max.
í
Display : 3-5/6 digits 6000 counts
í
Update Rate : 5 per second nominal
í
Polarity : Automatic
í
Operating Temperature : 0ºC to 40ºC
í
Relative Humidity : Maximum relative humidity 80% for temperature up to 31ºC
decreasing linearly to 50% relative humidity at 40ºC
í Altitude : Operating below 2000m
í Storage Temperature : -20°C ~ 60°C, <80% R.H. (with battery removed)
í
Temperature Coefficient : Nominal 0.15 x (specified accuracy) / C @ (0 C –– 18 C or 28 C –– 40 C),
or otherwise specified
í
Power Supply : Standard 1.5V AAA Size Battery X 2
í Power Consumption : typical 4.3mA
í Low Battery : Below approx. 2.85V for Capacitance & Hz
Below approx. 2.5V for other functions
í APO timing : Idle for 32 minutes
í APO Consumption : typical 5mA
í
Dimension : 217(L) x 76(W) x 37(H)mm
í Weight : approx 186 gms.
SAFETY :
—
Safety : Double insulation per UL/IEC/EN61010-1 Ed. 3, IEC/EN61010-2-033 Ed. 1, CAN/CSA C22.2
No. 61010-1 Ed. 3, IEC/EN61010-2-032 Ed. 3 & IEC/EN61010-031 Ed. 1.1
—
Measurement Category : CAT III 600V AND CAT IV 300V AC & DC
— E.M.C. : Meets EN61326-1 : 2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) :
DCA and DC+ACA Functions, in an RF field of 1V/m :
Total Accuracy = Specified Accuracy + 20 digits at around 405MHz
DCmA and Ohm Functions, in an RF field of 1V/m : Total Accuracy = Specified Accuracy + 25 digits
Other Functions, in an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
— Overload Protection :
Current & Hz functions via jaws : 600ADC/AAC rms at <400Hz
Voltage & 3-Phase Rotation functions via terminals : 660VDC/ 920VAC rms
Other functions via terminals : 600VDC/ VAC rms
— Pollution Degree : 2
— Transient Protection : 6.0kV (1.2/50ms surge)
— Rugged Fire retarded casing.
— LVD EN61010-2-032/EN61010-2-032/EN61010-2-033 to CAT III 600V & CAT IV 300V
ACCESSORIES :
Test leads set, Users Manual, Soft carrying pouch, Bkp60 banana plug K-type thermocouple, Alligator Clip set,
BKB32 banana plug to type-K socket plug adaptor (for optional purchase)
®
An ISO 9001:2008 Company
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2013-2014/KM 076.cdr

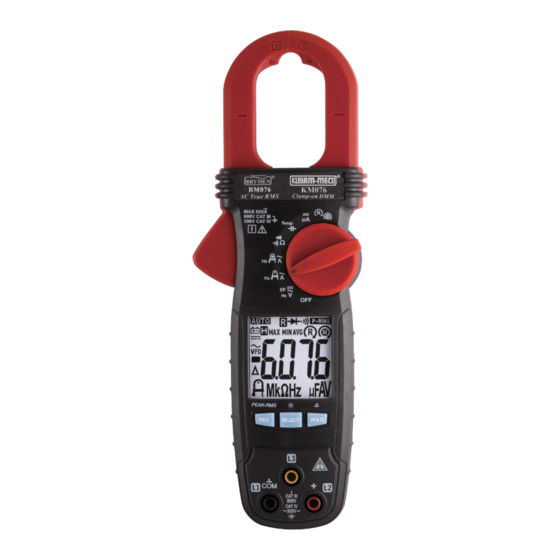

600A AC TRUE RMS DIGITAL CLAMPMETER WITH
®
VFD, EF-DETECTION, AMPTIP FUNCTION FOR LOW CURRENT
MEASUREMENT & 3 PHASE ROTATION CHECK FUNCTION &
o
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022-24156638,
Email : kusam_meco@vsnl.net,
3 PHASE SEQUENCE INDICATION
o o o o
All Specifications are subject to change without prior notice
Tel. : 022-24124540, 24181649,
MODEL KM 076
25 Functions 23 Ranges
Preliminary Data
