An ISO 9001:2008 Company
SPECIAL FEATURES :
TM
AmpTip low-current range calibrated at Jaw-tip for slim-conditions
MAX/MIN/AVG Recording mode (Auto ranging)
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
Display Hold & Non-Contact EF-Detection (NCV)
Back-lighted easy-to-read LCD display
Flashlight for easy operation in dim areas
Fast 80ms Peak-RMS mode to capture in-rush currents
Auto-ranging
Relative mode with DC-Zero mode &
5ms Crest (Instantaneous Peak-Hold) mode
GENERAL SPECIFICATIONS :
Sensing : AC;
True RMS
Jaws Opening size & conductor diameter : 51mm Max.
Display : 3-5/6 digits 6000 counts
Update Rate : 5 per second nominal
Polarity : Automatic
Operating Temperature :
-10ºC to 50ºC
Relative Humidity : Non condensing
decreasing linearly to 75% R.H. at 30-40°C & 45% R.H. at 40-50°C
Altitude : Operating below 2000m; Storage below 12000m
Storage Temperature : -20°C ~ 60°C, <80% R.H. (with battery removed)
Temperature Coefficient : Nominal 0.10 x (specified accuracy) / C @ (-10 C –– 18 C or 28 C –– 50 C),
or otherwise Specified
Power Supply : Standard 1.5V AA Battery x 2
Power Consumption : typical 13mA for Current Functions
Low Battery :
Below approx. 2.85V for Capacitance & Hz
Below approx. 2.5V for other functions
APO timing : Idle for 32 minutes
APO Consumption : typical 5 A
Dimension : 258(L) x 94(W) x 44(H)mm
Weight : approx 392 gms.
SAFETY :
Safety :
Double insulation per UL/IEC/EN61010-1 Ed. 3.0, IEC/EN61010-2-033 Ed. 1.0,
CAN/CSA C22.2 No. 61010-1 Ed. 3.0, IEC/EN61010-2-032 Ed. 3.0 & IEC/EN61010-031 Ed. 1.1
Measurement Category :
CAT III 1000V AND CAT IV 600V AC & DC
E.M.C. :
Meets EN61326-1 : 2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) :
ACA, DCA and DC+ACA Functions, in an RF field of 1V/m :
Total Accuracy = Specified Accuracy + 60 digits at around 200MHz~350MHz
DC A and Ohm Functions, in an RF field of 1V/m : Total Accuracy = Specified Accuracy + 80 digits
Other Functions, in an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
Overload Protection :
Current & Hz functions via jaws : 1000ADC/AAC rms at <400Hz
Other functions via terminals : 1000VDC/ VAC rms
Pollution Degree : 2
Transient Protection : 8.0kV (1.2/50 s surge)
Rugged Fire retarded casing.
LVD EN61010-2-032/EN61010-2-033 to CAT III 1000V & CAT IV 600V
ACCESSORIES :
Test leads set, Users Manual, Soft carrying pouch.
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2013-2014/KM 088.cdr
®

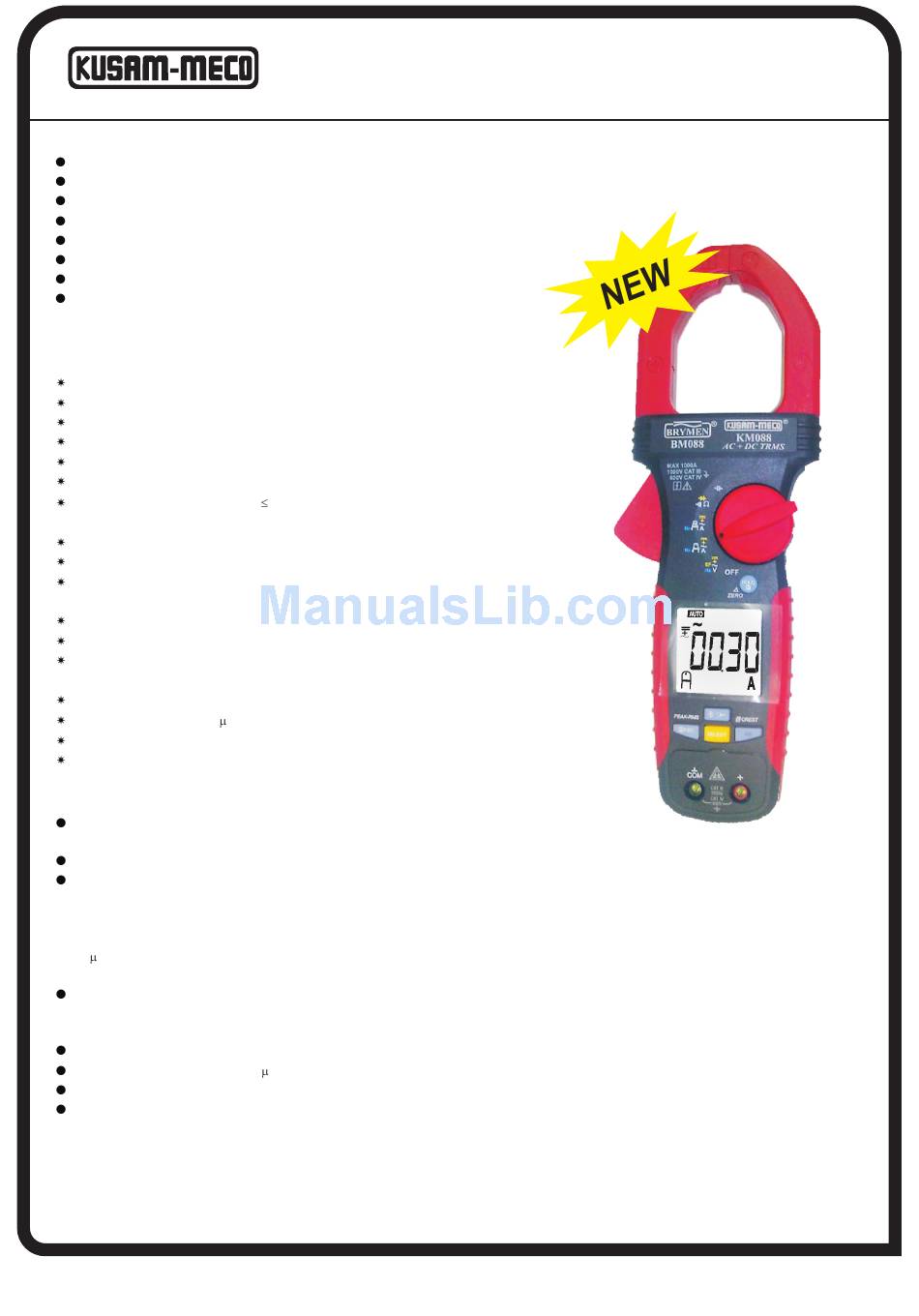

1000A AC/DC TRMS DIGITAL CLAMPMETER
( 10ºC)
Maximum 90%R.H. at 10-30°C
o
WITH VFD, EF-DETECTION
o
o
o
o
All Specifications are subject to change without prior notice.

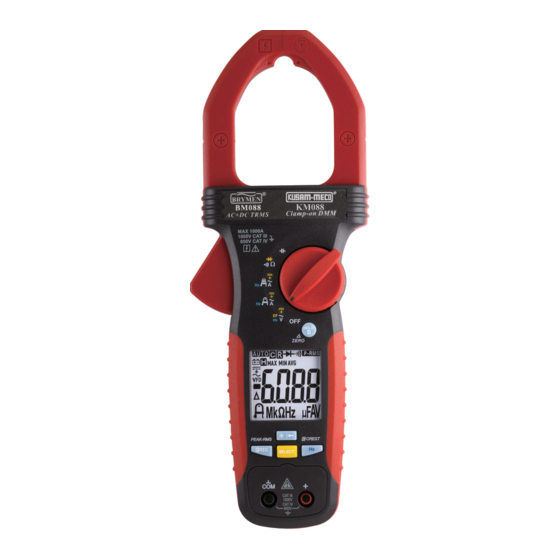

MODEL KM 088
27 Functions 46 Ranges
® ®
KM088
AC+DC TRMS
Preliminary Data
Advertisement
Table of Contents
Related Manuals for Kusam-meco KM 088
Summary of Contents for Kusam-meco KM 088
- Page 1 Transient Protection : 8.0kV (1.2/50 s surge) Rugged Fire retarded casing. LVD EN61010-2-032/EN61010-2-033 to CAT III 1000V & CAT IV 600V ACCESSORIES : Test leads set, Users Manual, Soft carrying pouch. All Specifications are subject to change without prior notice. Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2013-2014/KM 088.cdr...
- Page 2 ELECTRICAL SPECIFICATIONS : KM 088 Accuracy is ± (% of reading digits + number of digits) or otherwise specified, at 23 C ± 5 C Maximum Crest Factor <2.5:1 at full scale & <5:1 at half scale or otherwise specified, and with frequency spectrum not exceeding the specified frequency bandwidth for non-sinusoidal waveforms.
- Page 3 ELECTRICAL SPECIFICATIONS : KM 088 RESISTANCE CAPACITANCE Range Accuracy Resolution Range Accuracy Resolution 600.0 200.0 F 0.1 F ±(2.0%rdg + 4dgts) ±(1.0%rdg + 5dgts) 6.000K 2500 F 60.00K Accuracies with film capacitor or better Open Circuit Voltage : 1.0VDC typical...
- Page 4 ® WHAT IS DC + AC TRUE RMS DC AC TRUE RMS AC True RMS is a term which identifies a DMM that responds accurately to the total effective RMS value regardless of the waveform, and is given by the expression : DC + AC True RMS voltage is the total effective voltage having the same heating value corresponding a DC voltage.
- Page 5 ® USE TRUE RMS WHEN MEASURING AC WAVEFORMS The waveforms on today’s AC power lines are anything but clean. Electronic equipment such as office computers, with their switching power supplies, produce harmonics that distort power-line waveforms. These distortions make measuring AC voltage inaccurate when you use an averaging DMM.
