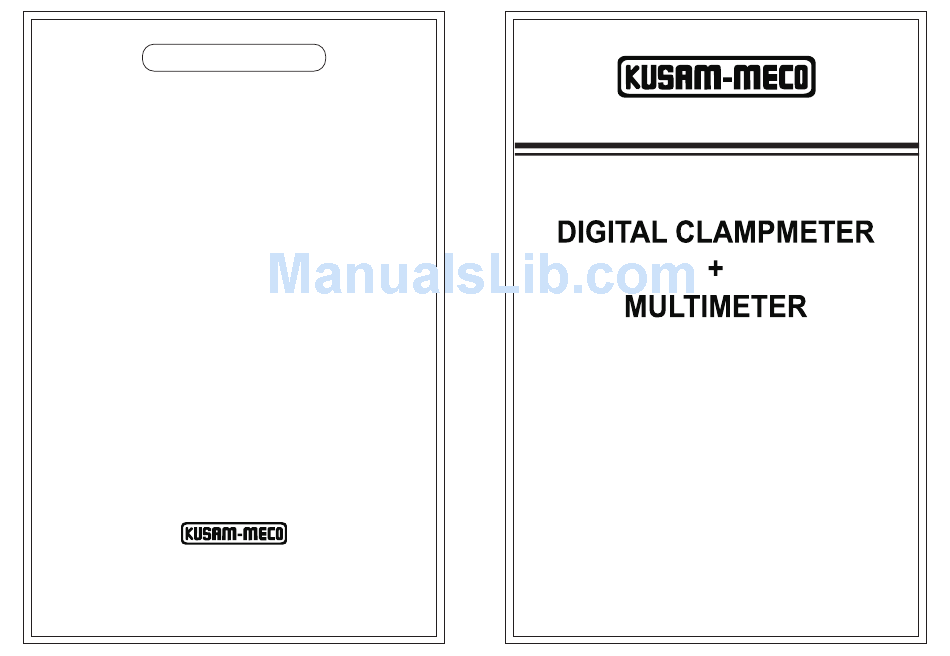

Kusam-meco KM 061 Operation Manual

Digital clampmeter and multimeter
Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version
LIST OF PRODUCTS
* Digital Multimeter
* Digital AC & AC/DC Clampmeter
* AC Clamp Adaptor
* AC/DC Current Adaptor
* Thermo Anemometer
* Thermo Hygrometer
* Distance Meter
* Digital Lux Meter
* Network Cable Tester
* Power Factor Regulator
* Earth Resistance Tester
* Digital Panel Meters
* DC Power Supplies
* High Voltage Detector
* Calibrators
* Gas Analysers
* Frequency Counter
* Function Generator
* Phasing Sticks
* Battery Tester
* Waterproof Pen Testers
* Solar Power Meter
* EMF Detector
* Wood, Paper & Grain Moisture Meter
* Transistorised Electronic Analog & Digital Insulation
Resistance Testers(upto 10 KV)
* Digital Sound Level Meter & Sound Level Calibrator
* Digital contact & Non-contact Type Tachometer
* Digital Non-contact (infrared) Thermometer
* Maximum Demand Controller/Digital Power Meter
* Digital Hand Held Temperature Indicators
17, Bharat Industrial Estate, T. J. Road, Sewree (W),
Mumbai-400015. INDIA
Sales Direct: (022)24156638 Tel.:(022) 2412 4540, 2418 1649
Fax: 2414 9659
Website : www.kusamelectrical.com;
E-mail : kusam_meco@vsnl.net,
www.kusam-meco.co.in
AN ISO 9001:2008 COMPANY
MODEL
KM 061 / KM 062
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the KM 061 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kusam-meco KM 061

Summary of Contents for Kusam-meco KM 061

  • Page 1 Resistance Testers(upto 10 KV) MODEL * Digital Sound Level Meter & Sound Level Calibrator * Digital contact & Non-contact Type Tachometer KM 061 / KM 062 * Digital Non-contact (infrared) Thermometer * Maximum Demand Controller/Digital Power Meter * Digital Hand Held Temperature Indicators 17, Bharat Industrial Estate, T.

  • Page 2: Table Of Contents

    TAKE MEASUREMENT CAREFULLY AND YOU’LL SPARE YOUR METER AND YOURSELF, SOME PAIN Nearly every electrical engineer has a hand held digital clamp meter Safety ..................01 (Tongtester). We sometimes take them for granted, until we damage them or “burn them out”. If you incorrectly connect your clamp meter to a circuit, Terms in this Manual ..............02 or if you have the clamp meter on wrong setting, you damage the meter and possibly hurt yourself.

  • Page 3: Safety

    SAFETY This manual contains information & warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired.
  • Page 4 Average sensing (KM 061) True RMS sensing (KM 062) Safety : Meets IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed., CAN/CSA 2006/95/EC and Electromagnetic compatibility directive 2004/108/EC C22.2 No. 61010.1-0.92, IEC61010-2-032, EN61010-2-032 & UL61010B-2-032 & CAN/CSA C22.2 No. 61010-2-032-04: Category III 600 Volts AC &...
  • Page 5 50Hz ~ 60Hz APO Timing : Idle for 30 minutes 4.000 ±(1.0%rdg + 4dgts) 40.00 APO Consumption : typical 10 A (KM 061) & 190 A (KM062) 400.0 100 mV 60Hz ~ 500Hz Dimension : 188(L) x 63(W) x 40(H) mm 4.000 Weight : 218gm approx.
  • Page 6 DCA Current (Clamp-on) Resistance (Ohms) 1) 2) Range Accuracy Range Accuracy Resolution Resolution ±(0.8%rdg + 6dgts) 400.0 400.0 A 4.000 k 0A ~ 50.0A 100 mA ±(1.0%rdg + 4dgts) ±(0.6%rdg + 4dgts) ±(1.5%rdg + 5dgts) 40.00 k 50.0A ~ 200.0A 100 mA 100 mA ±(2.0%rdg + 5dgts)

  • Page 7: Product Discription

    Hz Frequency 3) PRODUCT DESCRIPTION Range Sensitivity (Sine wave) Function Note : Top of the line model is used as representative for illustration purposes. 400.0 mV 350 mV 10Hz ~ 1kHz 1. Hall-effect Clamp Jaw for 5Hz ~ 20kHz 4.000 AC &...

  • Page 8: Operation

    4) OPERATION Set slide-switch to Voltage function position. Inputs are made through the test leads terminals. CAUTION : Before and after hazardous voltage measurements, test the Voltage function on a known source such as line voltage to determine proper meter functioning. Press the Hz button momentarily to activate Hz Frequency.
  • Page 9 Note : In DCA measurements, hysteresis of the jaws (after measuring ACA & DCA Current Clamp-on function high DC currents) may introduce non-zero residual readings. Relative Zero mode should be used each time to offset the residual readings, if any, for more accurate measurements. Adjacent current-carrying devices such as transformers, motors &...
  • Page 10 The Hold feature freezes the display for later viewing. Press the HOLD button momentarily to toggle to the Hold feature. annunciator “ ” turns on. The max feature compares and displays the measured maximum value as fast as 30ms with auto-ranging capability. It allows the meter to capture INRUSH currents in current functions.
  • Page 11 The meter uses standard 1.5V AAA size battery x 2; or 1.5V AAA size Alkaline battery x 2. Loosen the 2 captive screws from the battery cover case. Lift the battery cover case. Replace the batteries. Replace battery cover case. Re-fasten the screws.

  • Page 12: Test Certificate

    WARRANTY MUMBAI Each “KUSAM-MECO” product is warranted to be free from defects in TEST CERTIFICATE material and workmanship under normal use & service. The warranty period is one year (12 months) and begins from the date of despatch of DIGITAL CLAMPMETER + goods.

This manual is also suitable for:

Km 062
