Kusam-meco KM 088 Operation Manual

An ISO 9001:2008 Company
SPECIAL FEATURES :
TM
˜
AmpTip low-current range calibrated at Jaw-tip for slim-conditions
˜
MAX/MIN/AVG Recording mode (Auto ranging)
˜
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
˜
Display Hold & Non-Contact EF-Detection (NCV)
˜
Back-lighted easy-to-read LCD display
˜
Flashlight for easy operation in dim areas
˜ Fast 80ms Peak-RMS mode to capture in-rush currents
˜ Auto-ranging Relative mode with DC-Zero mode &
5ms Crest (Instantaneous Peak-Hold) mode
GENERAL SPECIFICATIONS :
í Sensing : AC;
True RMS
í
Jaws Opening size & conductor diameter : 51mm Max.
í Display : 3-5/6 digits 6000 counts
í
Update Rate : 5 per second nominal
í Polarity : Automatic
í Operating Temperature : -10ºC to 50ºC
í Relative Humidity : Non condensing
decreasing linearly to 75% R.H. at 30-40°C & 45% R.H. at 40-50°C
í
Altitude : Operating below 2000m; Storage below 12000m
í Storage Temperature : -20°C ~ 60°C, <80% R.H. (with battery removed)
í Temperature Coefficient : Nominal 0.10 x (specified accuracy) / C @ (-10 C –– 18 C or 28 C –– 50 C),
or otherwise Specified
í
Power Supply : Standard 1.5V AA Battery x 2
í Power Consumption : typical 13mA for Current Functions
í Low Battery : Below approx. 2.85V for Capacitance & Hz
Below approx. 2.5V for other functions
í
APO timing : Idle for 32 minutes
í
APO Consumption : typical 5mA
í Dimension : 258(L) x 94(W) x 44(H)mm
í
Weight : approx 392 gms.
SAFETY :
˜ Safety : Double insulation per UL/IEC/EN61010-1 Ed. 3.0, IEC/EN61010-2-033 Ed. 1.0,
CAN/CSA C22.2 No. 61010-1 Ed. 3.0, IEC/EN61010-2-032 Ed. 3.0 & IEC/EN61010-031 Ed. 1.1
˜ Measurement Category : CAT III 1000V AND CAT IV 600V AC & DC
˜
E.M.C. : Meets EN61326-1 : 2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) :
ACA, DCA and DC+ACA Functions, in an RF field of 1V/m :
Total Accuracy = Specified Accuracy + 60 digits at around 200MHz~350MHz
DCmA and Ohm Functions, in an RF field of 1V/m : Total Accuracy = Specified Accuracy + 80 digits
Other Functions, in an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
˜ Overload Protection :
Current & Hz functions via jaws : 1000ADC/AAC rms at <400Hz
Other functions via terminals : 1000VDC/ VAC rms
˜
Pollution Degree : 2
˜
Transient Protection : 8.0kV (1.2/50ms surge)
˜ Rugged Fire retarded casing.
˜
LVD EN61010-2-032/EN61010-2-033 to CAT III 1000V & CAT IV 600V
ACCESSORIES :
Test leads set, Users Manual, Soft carrying pouch.
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2013-2014/KM 088 Revised.cdr

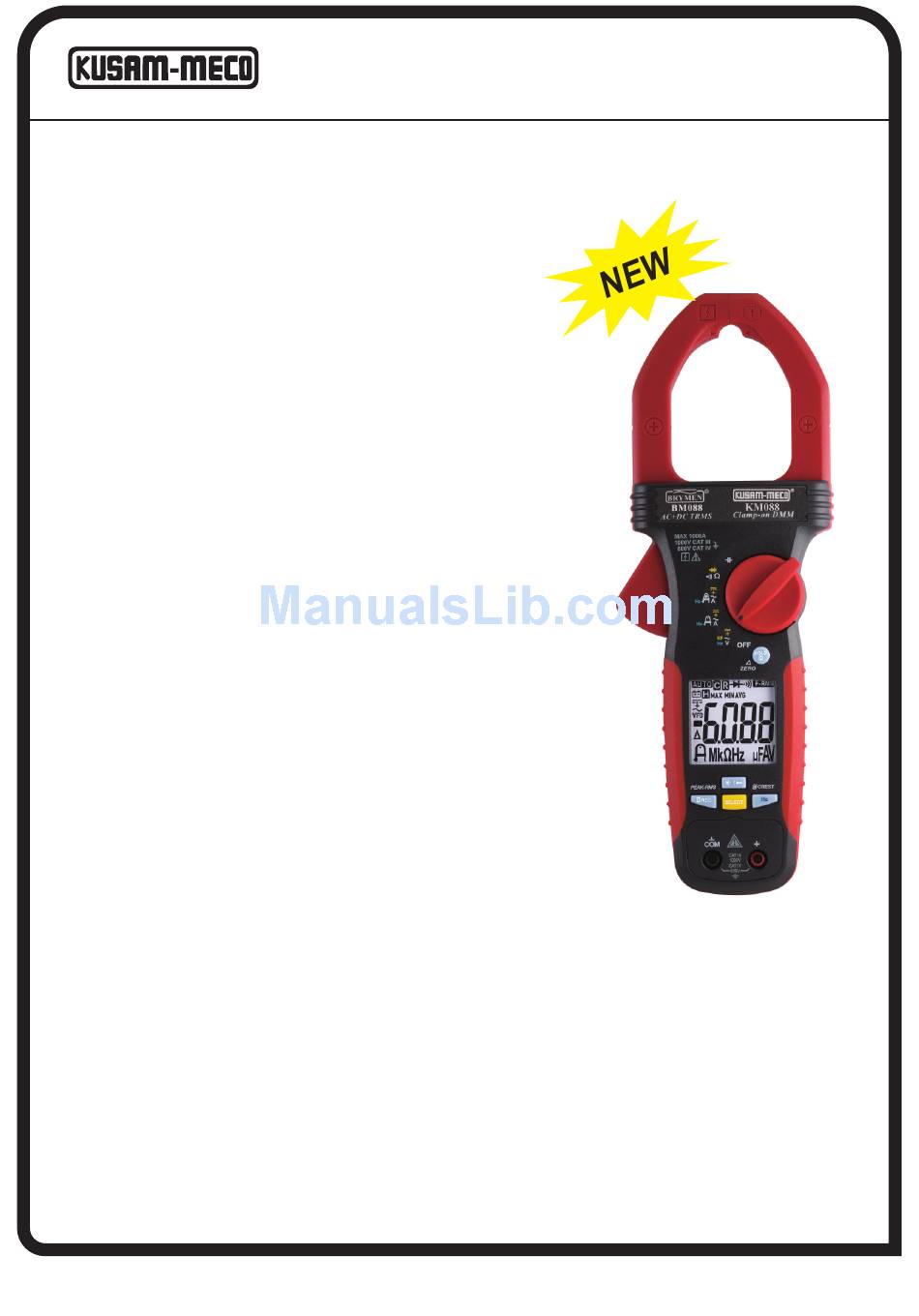

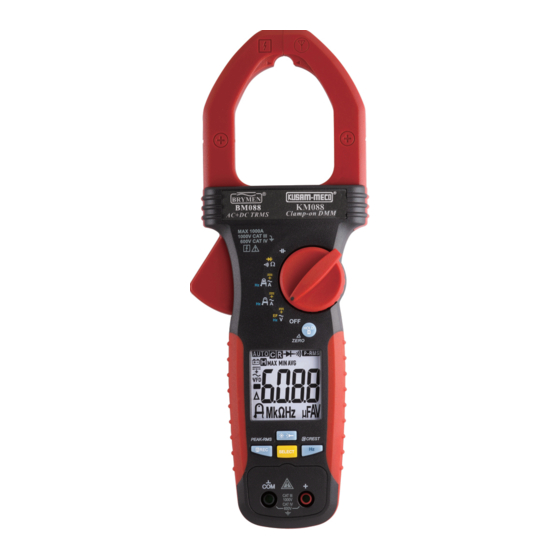

® 1000A AC/DC TRMS DIGITAL CLAMPMETER
(£ 10ºC) Maximum 90%R.H. at 10-30°C
o
WITH VFD, EF-DETECTION
o o o o
All Specifications are subject to change without prior notice.
MODEL KM 088
27 Functions 46 Ranges
Preliminary Data
