Hans Grohe Allegro E 04076860 Installation/User Instructions/Warranty
Hans Grohe Allegro E 04076860 Installation/User Instructions/Warranty

Hans Grohe Allegro E 04076860 Installation/User Instructions/Warranty

2-spray pull-out kitchen faucet

Advertisement

Quick Links

EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía
Allegro™ E 2-Spray Pull-Out
Kitchen Faucet
04076XX0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Allegro E 04076860 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hans Grohe Allegro E 04076860

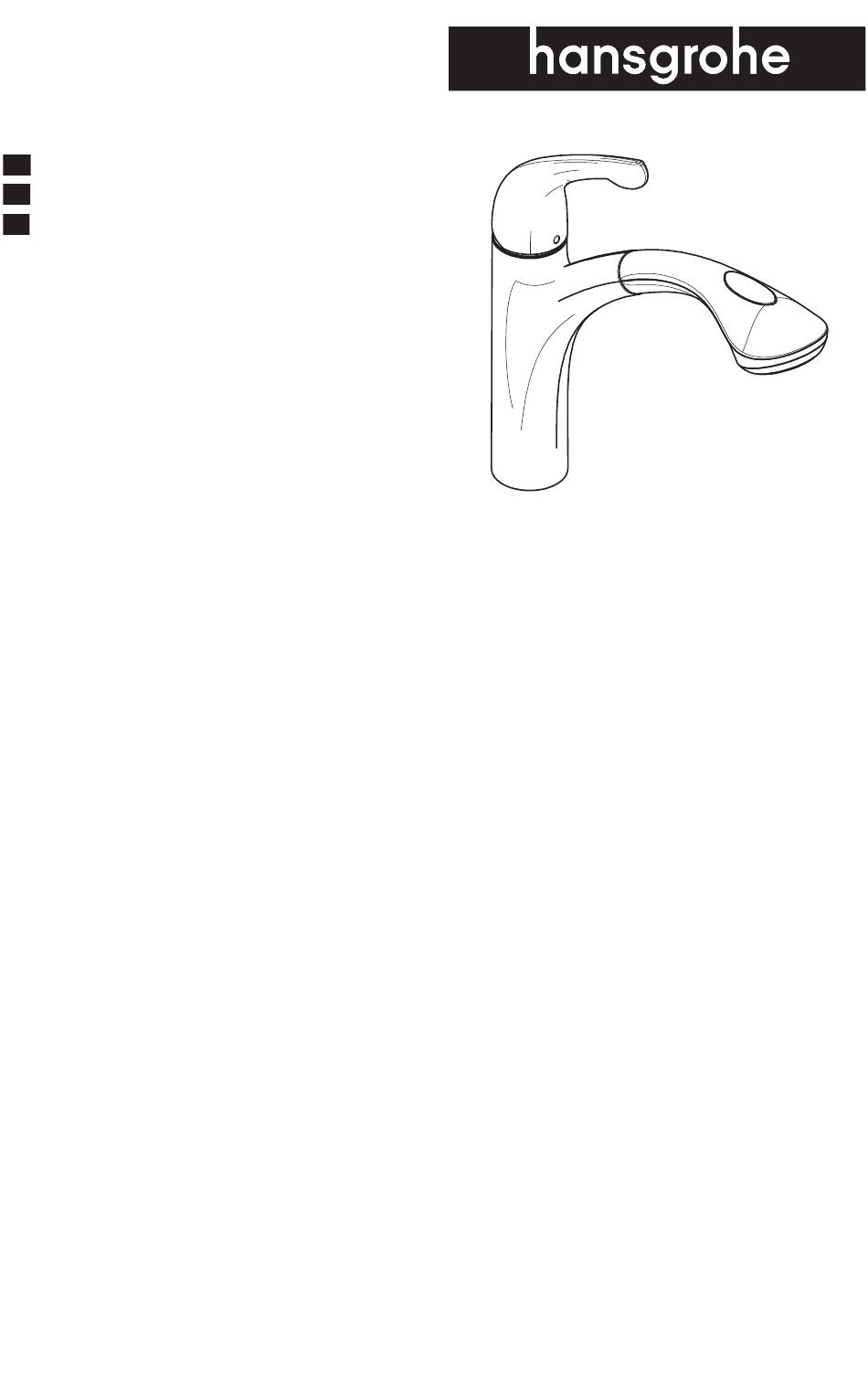

  • Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Allegro™ E 2-Spray Pull-Out Kitchen Faucet 04076XX0...
  • Page 2: Technical Information

    English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140°...
  • Page 3 Español Datos tecnicos Tools Required / Outils Requis / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* max. 158°F (70°...
  • Page 4 Allegro E 04076XX0 10" (254 mm) Ø2⅛" (54 mm) Ø1¼" (33 mm) ⅜...
  • Page 5: Installation / Installation / Instalación

    Installation / Installation / Instalación Place the faucet and sealing ring on the mounting surface. Install the friction washer, metal washer, and mount- ing nut. Placez l'anneau d'étanchéite et le robinet sur la surface de montage. Installez la rondelle en fibre, la rondelle de friction, et l'écrou de montage.
  • Page 6 Connect the handspray hose to the connection hose: • Open the quick connect by pushing it upwards. • Insert the handspray hose. • Lock the quick connect by pulling down on it. Raccordez le tuyau de la douchette au tuyau d'arrivée de la douchette: •...
  • Page 7 Connect the hot and cold supply hoses to the stops. Use two wrenches. Do not allow the supply hoses to twist. Connectez les tuyaux d'arrivée d'eau chaude et d'eau froide aux tuyau d'alimentation. Servez-vous de deux clés. Assurez-vous que les tuyaux n'sentortillent pas.
  • Page 8 Flush the faucet for at least two minutes. Rincez le robinet pour un minimum de deux minutes. > 2 min Enjuague el grifo durante un mínimo de dos minutos. Reinstall the hose filter and sprayhead. Installez le filtre et la douchette. Instale el filtro y la ducha.
  • Page 9 Replacement Parts / Pièces détachées / Repuestos Allegro E 04076XX0 95318XX0 96338000 97995XX0 97996000 93218000 95008000 92730000 97350000 97735000 98598XX1 96316001 92264000 95049000 88624000 XX = Colors / Couleurs / Acabados 00 = Chrome 80 = Steel Optik...
  • Page 10 User Instructions / Instructions de service / Manejo fermé ouvert cerrar abierto cold chaud froid caliente frío...
  • Page 11 Cleaning, Check valve maintenance / Nettoyage, Entretien de les clapets anti-retour/ Limpieza, Mantenimiento de las válvulas antirretornos...
  • Page 12 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
  • Page 13: Para Obtener Mejores Resultados

    Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
  • Page 15 Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We of- installation, maintenance or repair, including the use of fer consumers a limited warranty on our hansgrohe and AXOR abrasive or caustic cleaning agents or “no-rinse”...
  • Page 16 TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN PRODUCT I NSTRUC TIONS A ND QUE STIONS THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED...
