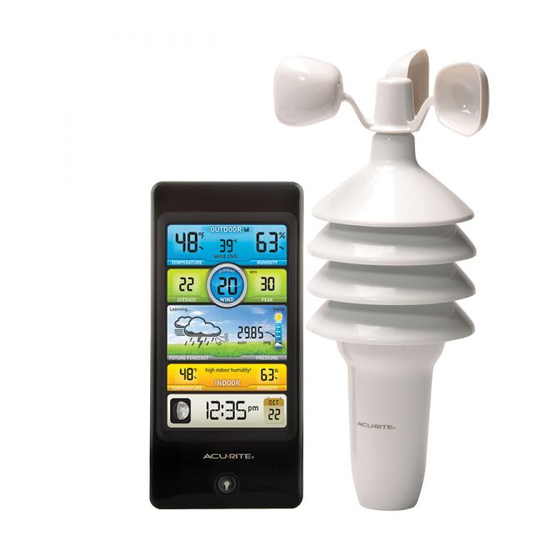

ACU-RITE 01604 Instruction Manual

Weather center
Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
Unpacking Instructions................2
Package Contents.......................2
Product Registration....................2
Setup ........................................6
3-in-1 Sensor Setup....................6
Display Setup.............................7
Placement Guidelines .................9
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Troubleshooting........................13
Care & Maintenance ................15
Calibration ..............................15
Specifcations...........................17
FCC Information.......................17
Customer Support ....................18
Warranty.................................18
Contact Customer Support at
Instruction Manual
Weather Center
model 01604 / 01645
Battery......16
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01604 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACU-RITE 01604

Summary of Contents for ACU-RITE 01604

  • Page 1: Table Of Contents

    Instruction Manual Weather Center model 01604 / 01645 CONTENTS Unpacking Instructions....2 3-in-1 Sensor Installation ..10 Package Contents.......2 Using the Weather Center ..11 Product Registration....2 Troubleshooting......13 Features & Benefts: 3-in-1 ..3 Care & Maintenance ....15 Features & Benefts: Display ..4 Calibration ......15 Setup ........6...

  • Page 2: Unpacking Instructions

    Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective flm that is applied to the LCD screen prior to using this product.

  • Page 3: Features & Benefts: 3-In-1

    Features & Benefits 3-in-1 SENSOR 5. Mounting Hardware Includes anchors and screws. 1. Temperature & Humidity Sensors Diameter Length (internal) 1” 2. Release Lever for Battery Access #6 or #8 1/4” or 3/8” 3. Mounting Point 6. Mounting Bracket 4. Wind Speed Anemometer 7.

  • Page 4: Features & Benefts: Display

    Features & Benefits...
  • Page 5 FRONT OF DISPLAY 16. AUTO DIM Mode Indicator (page 8) 17. Display Low Battery Indicator 1. Sensor Low Battery Indicator 18. Date 2. Current Outdoor Temperature Arrow icon indicates the direction 19. Current Indoor Humidity the temperature is trending. Arrow icon indicates the direction the humidity is trending.

  • Page 6: Setup

    SETUP 3-IN-1 Sensor Setup Set the A-B-C Switch 1. Press the release lever and pull off the lower housing of the The A-B-C switch is located inside sensor. the battery compartment. It can be set to A, B or C. However, 2.

  • Page 7: Display Setup

    Display Setup Set the A-B-C Switch 2. Insert 3 x AAA alkaline batteries into the battery Locate the A-B-C switch inside compartment, as shown. the battery compartment. Set Follow the polarity (+/–) the A-B-C switch to A, B or C. diagram in the battery You must select the same letter compartment.

  • Page 8: Set The Time, Date & Units

    Set the Time, Date & Units Press the “ ” button, located on the back of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “ or “...

  • Page 9: Placement Guidelines

    Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents.

  • Page 10: 3-In-1 Sensor Installation

    3-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet high! MOUNTING OPTIONS The included mounting bracket it designed to screw directly onto wooden posts or surfaces that are 2x4 or larger.

  • Page 11: Using The Weather Center

    OPERATION Using The Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction.
  • Page 12 High & Low Records Today’s high and low records are displayed for indoor and outdoor temperature, humidity and wind speed. Today’s records automatically clear at 12:00am midnight every day. To manually clear all of today’s LOW recorded values, press and hold the “...

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Solution • Relocate the display and/or the 3-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).
  • Page 14 Troubleshooting Problem Possible Solution • Make sure both the display and 3-in-1 sensor are placed away from any heat sources or vents (see page 9). • Make sure both units are positioned away from moisture Inaccurate sources (see page 9). temperature or •...

  • Page 15: Care & Maintenance

    Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 3-in-1 Sensor Care Clean the Sensor Clean with a soft, damp cloth.

  • Page 16: Replace Intelli-Time ® Battery

    *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “ ” button for at least 10 seconds. The display indicates the current pressure mode selected,“AUTO” or “MANUAL”. After 20 seconds of inactivity, the display will save the adjustments and exit calibration mode.

  • Page 17: Specifcations

    Specifications Outdoor: -40ºF to 158ºF; -40ºC to 70ºC TEMPERATURE RANGE Indoor: 32ºF to 122ºF; 0ºC to 50ºC Outdoor: 1% to 99% HUMIDITY RANGE Indoor: 1% to 99% 0 to 99 mph; 0 to 159 kph WIND SPEED 330 ft / 100 m depending on home construction materials WIRELESS RANGE 433 mhz OPERATING FREQUENCY...

  • Page 18: Customer Support

    Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 AcuRite Visit us at www. .com Installation Videos Register your Product...
  • Page 20 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented technology. Printed in China 01604 INST 071217 Visit www.AcuRite.com/patents for details.
