ACU-RITE 01193M Quick Setup Manual

SETUP REQUIRES:
• Weather display with wireless charging pad
• Power Adapter (2 x AA backup batteries recommended)
• Temperature & Humidity Sensor
• 2 x AA alkaline or lithium batteries for sensor (not included)
1
INSTALL SENSOR BATTERIES
2
PLUG IN DISPLAY WITH THE POWER ADAPTER, AND
INSTALL BACKUP BATTERIES
3
CONFIGURE DISPLAY SETTINGS BY USING THE ARROWS TO CHANGE
A SETTING AND PRESSING "SET" TO SAVE AND CONTINUE TO THE
NEXT SETTING.
• Clock Hour/Minute
• Month/Day/Year
• Units Preference (*F/*C)
You can edit your settings at any time by pressing the "SET" button.
4
PLACE SENSOR OUTSIDE
Hang the sensor in a suitable location, like a well-covered tree branch, by using
the integrated hang holes or string (string not included).
• At least 5 feet (1.5 meters) off the ground
• Out of direct sunlight
• Away from heat and humidity sources
• Within 165 feet (50 meters) of display
AT
LEAST
TV
3
(.91 m)
APART
(165 feet maximum)
ONLINE PRODUCT REGISTRATION
Register your product online within 30 days from the date of purchase at
www.acurite.com/product-registration
Set up your Wireless Charging Weather Forecaster
(optional, recommended)
.
(50 meters)
SENSOR
Qi CHARGING PAD
WEATHER FORECAST LEARNING MODE
The Self-Calibrating Forecast uses a unique algorithm to analyze changes in pressure
over a time period (called Learning Mode) to determine your altitude. After 14 days, the
self-calibrated pressure is tuned in to your location and the unit is ready for superior
weather prediction.
SET ALARM CLOCK
1. Press and hold the "ALARM" button until the Alarm time flashes.
2. Adjust the alarm hour and minute using the up/down arrows, pressing "SET" to save
and continue.
TURN ALARM CLOCK ON OR OFF
Press the "ALARM" button once to turn the alarm on or off. When alarm is turned on, the
screen will flash the currently set alarm time for 3 seconds.
ADJUST DISPLAY BRIGHTNESS
Press the "SNOOZE / LIGHT" button to adjust the brightness off the screen, or to set to
auto-dimming at night.
WIRELESSLY CHARGE PHONE
This Weather Display with charging pad is Qi Certified. Products marked as Qi Certified
have passed rigorous, independent laboratory tests for safety, interoperability and
energy efficiency. This wireless charging pad will deliver a safe and reliable wireless
charging experience.
For phones able to be charged wirelessly, place your device on the wireless charging pad
with the charging location lined up, and confirm your device begins to charge. A charging
icon will also appear on the weather display.
*NOTE: Weather display must be powered by power adapter to use wireless charging.

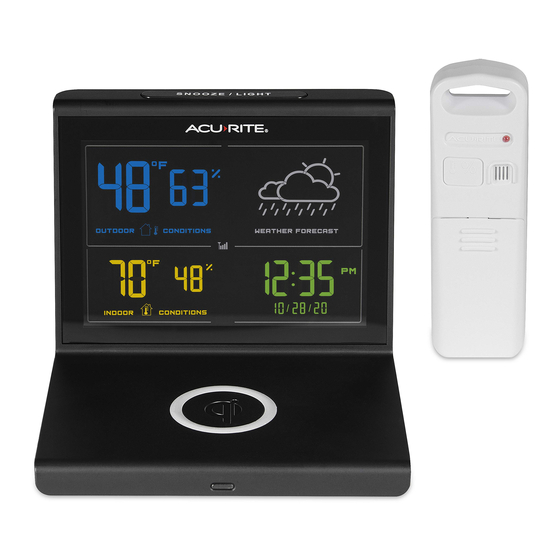

01193M
OUTDOOR CONDITIONS
INDOOR CONDITIONS
WEATHER FORECAST
TIME/DATE
SNOOZE/LIGHT
BUTTON
SETTINGS
BUTTONS
MICRO USB PORT
www.acurite.com
