CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benefits: 5-in-1 ....... 3
Features & Benefits: Display .... 4
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Setup ........................ 8
Set the Time, Date & Units ...... 9
Backlight Settings ................... 9
Placement Guidelines ............10
5-in-1 Sensor Installation ........ 11
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

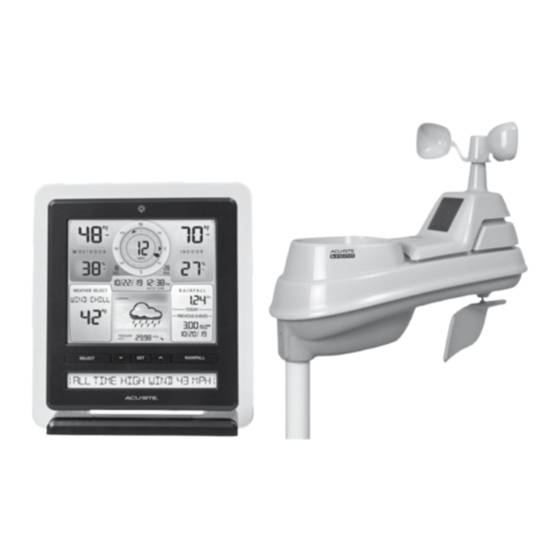

Professional Weather Center
Using the Weather Center .....12
PC Connect ..........................13
Rainfall Tracking ...................14
Weather Ticker .....................15
Troubleshooting ....................16
Care & Maintenance .............19
Calibration ...........................19
Specifications ........................21
FCC Information ...................21
Customer Support ................ 22
Warranty............................. 22
Contact Customer Support at
Instruction Manual
model 02032
Advertisement
Table of Contents
Related Manuals for ACU-RITE 02032
Summary of Contents for ACU-RITE 02032
-
Page 1: Table Of Contents
Instruction Manual Professional Weather Center model 02032 CONTENTS Using the Weather Center ..12 Unpacking Instructions ... 2 PC Connect ......13 Package Contents ....2 Rainfall Tracking ....14 Product Registration ....2 Weather Ticker .....15 Features & Benefits: 5-in-1 ..3 Troubleshooting ....16... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -
Page 4: Features & Benefits: Display
Features & Benefits Display... - Page 5 1. Previous 2 Wind Directions Button For setup preferences. 2. Backlight Button 20. SET Button For momentary backlight and dimmer settings. For setup preferences. 3. Current Wind Speed Button For setup preferences. 4. Current Wind Direction 22. SELECT Button 5. Current Indoor Temperature Press to change the WEATHER Arrow icon indicates direction SELECT category data being...
- Page 6 Back of Display DISPLAY BACK Reset Button 1. Plug-in for Power Adapter Press and release to clear data 2. Plug-in for USB Cable recorded since 12:00 am. Press 3. Integrated Hang Hole and HOLD for full reset to factory For easy wall mounting. defaults.
-
Page 7: Setup
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch Cold temperatures can cause alkaline batteries to function improperly. Use Locate the A-B-C switch inside the lithium batteries in the 5-in-1 sensor for battery compartment. Set the A-B-C temperatures below -4ºF / -20ºC. switch to A, B or C. -
Page 8: Display Setup
Display Setup Set the A-B-C Switch Write Down the DEVICE ID The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and Install or Replace Backup... -
Page 9: Set The Time, Date & Units
Set the Time, Date & Units Press the “ SE T ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... -
Page 10: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 11: 5-In-1 Sensor Installation
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”... -
Page 12: Using The Weather Center
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 13: Pc Connect
PC Connect PC Connect works with PCs to provide access to your Weather Center data in the following ways: • Data File: The display logs (or stores) data so that you can download it to a CSV (comma separated values) data file on your PC. •... -
Page 14: Rainfall Tracking
Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. Press the “RAINFALL” button to review rainfall records. The icon is shown on the display while historical data is being viewed. -
Page 15: Weather Ticker
Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display screen. The “ ” and “ ” buttons can be used to scroll through available ticker messages when the display is in normal viewing mode (NOT during setup). -
Page 16: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100m) of each other. • Make sure both units are placed at least 3 ft (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 17 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 10). Inaccurate • Make sure both units are positioned away from moisture sources (see page 10). temperature or humidity •...
- Page 18 Troubleshooting Problem Possible Solution • Verify under Status that data was received from the indoor display. The timestamp should update every 18-36 seconds. • Verify that you created an account or logged into an existing account at www.MyAcuRite.com or in the AcuRite app, and that you input the display’s DEVICE ID as a part of the account setup.
-
Page 19: Care & Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth. - Page 20 The preference set order is as follows: OUTDOOR TEMPERATURE OUTDOOR HUMIDITY INDOOR TEMPERATURE INDOOR HUMIDITY BAROMETRIC PRESSURE (must be set to MANUAL mode to calibrate)* *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “SET” button for at least 10 seconds. The display indicates the current pressure mode selected,“AUTO”...
-
Page 21: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0.01 inches (0.25 mm) and up... -
Page 22: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 AcuRite Visit us at www. .com Installation Videos Register your Product... - Page 24 Weather Temperature Weather Kitchen Clocks Stations & Humidity Alert Radio Thermometers & Timers It’s More than Accurate, it’s AcuRite offers an extensive assortment of precision instruments, designed to provide you with information you can depend on to Plan your day with confidence ™...
