Professional Weather Center
5-in-1 Sensor Installation ........ 11
Using the Weather Center .....12
Programmable Alarms ...........13
Troubleshooting ....................14
Care & Maintenance .............16
Calibrate the Rain Gauge ......17
Specifications ........................18
FCC Information ...................18
Customer Support .................19
Warranty..............................19
Contact Customer Support at
Instruction Manual
model 01141
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACU-RITE 01141
Summary of Contents for ACU-RITE 01141
-
Page 1: Table Of Contents
Instruction Manual Professional Weather Center model 01141 CONTENTS Unpacking Instructions ... 2 5-in-1 Sensor Installation ..11 Package Contents ....2 Using the Weather Center ..12 Product Registration ....2 Programmable Alarms ...13 Features & Benefits: 5-in-1 ..3 Troubleshooting ....14 Features &... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1

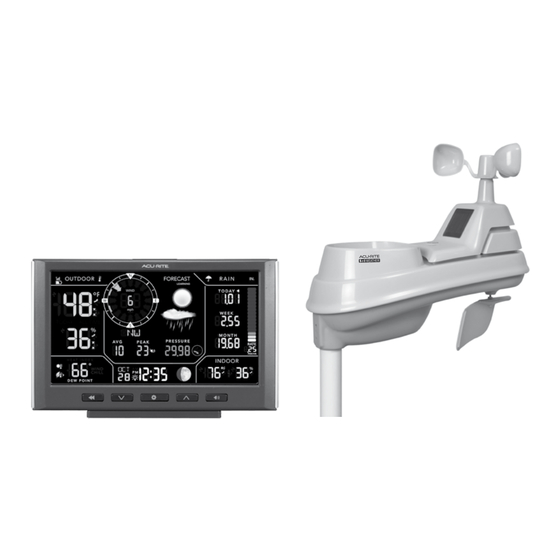

Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run 7. Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -
Page 4: Features & Benefits: Display
Features & Benefits Display 12 13 15 16 24 25 20 28 29... - Page 5 DISPLAY FRONT 1. Sensor Low Battery Indicator Button For viewing all-time high and 2. Outdoor Sensor Signal Strength low records. 3. Current Outdoor Temperature Icon Arrow icon indicates direction the Indicates low records are being temperature is trending. viewed. Icon 18.
- Page 6 Features & Benefits DISPLAY BACK 1. Backlight Button 5. Plug-in for Power Adapter For momentary backlight and dimmer 6. Battery Compartment Cover settings. 7. Power Adapter 2. Integrated Hang Holes 8. RESET Button For easy wall mounting. Press and release to clear historical 3.
-
Page 7: Setup
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch improperly. Use lithium batteries in the 5-in-1 sensor for temperatures Locate the A-B-C switch inside the below -4ºF/-20ºC. battery compartment. Set the A-B-C switch to A, B or C. You must select 1. -
Page 8: Display Setup
Display Setup Set the A-B-C Switch Install or Replace Backup Batteries (optional) The A-B-C switch is located inside the battery compartment. It can Insert 3 x AAA alkaline batteries be set to A, B or C. However, you into the battery compartment, must select the same letter choices as shown. -
Page 9: Set The Time, Date & Units
Set the Time, Date & Units Press the “ ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... -
Page 10: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 11: 5-In-1 Sensor Installation
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - The National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket it designed to screw directly onto wooden posts or surfaces that are 2 x 4 (4.5 cm x 9.5 cm) or larger. -
Page 12: Using The Weather Center
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 13: Programmable Alarms
Programmable Alarms This display features programmable alarms that sound an alert to notify you when a value (for outdoor temperature, humidity, wind speed or rainfall) has been reached or exceeded. When an alarm is triggered, the display emits an audible beep and flashes data in the affected category. -
Page 14: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 15 Troubleshooting Problem Possible Solution • Check that the power adapter is plugged into the display and an electrical outlet. • Check that the batteries are installed correctly. Display screen Batteries may need to be replaced. not working • Reset the display by pressing and HOLDING the “RESET”...
-
Page 16: Care & Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth. -
Page 17: Calibrate The Rain Gauge
The preference set order is as follows: OUTDOOR TEMPERATURE OUTDOOR HUMIDITY INDOOR TEMPERATURE INDOOR HUMIDITY BAROMETRIC PRESSURE (must be set to MANUAL mode to calibrate)* *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “ ”... -
Page 18: Specifications
Specifications Outdoor: -40ºF to 158ºF; -40ºC to 70ºC TEMPERATURE RANGE Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% 0 to 99 mph; 0 to 159 kph WIND SPEED WIND DIRECTION 16 points INDICATORS 0.01 inches (0.25 mm) and up RAINFALL... -
Page 19: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (262) 729-4852 AcuRite Visit us at www. .com Installation Videos Register your Product... - Page 20 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 01141 INST 011618 Visit www.AcuRite.com/patents for details.
