Case controller, type EKC 223 and EKC 224

Applications

EKC 223 and 224 are developed for refrigerated plug-in cabinets with one compressor or for remote cabinets
controlling the liquid line solenoid valve. 3 sensors can be connected; Sair, S5 (Defrost termination), and Sc
(Condenser temperature).
The configuration of the relays is done via the parameter "o61 Application mode"

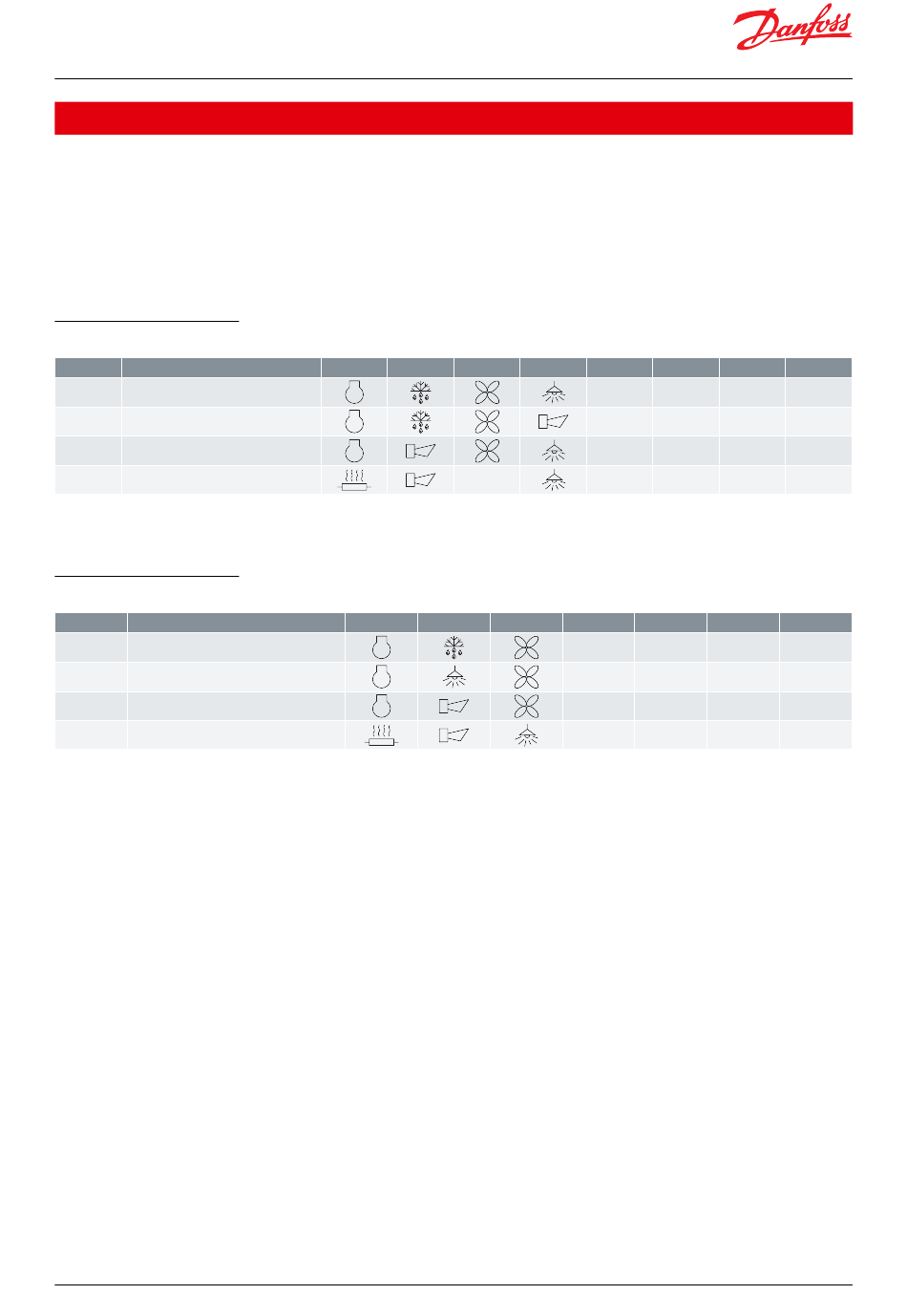

The Table 1 and Table 2 shows the application modes for EKC 224 and 223 respectively.

EKC 224 applications

Table 1: EKC 224 applications
o61 Applications
1 MT/LT, electrical defrost, light
2 MT/LT, electrical defrost, alarm
3 MT, natural defrost, light, alarm
4 Heating thermostat
(1) (1)
The digital inputs DI1 and DI2 can be configured for multiple functions and DI1 can also be configured for a condenser temperature sensor Sc. The digital inputs DI1 and DI2 can be configured for multiple functions and DI1 can also be configured for a condenser temperature sensor Sc.

EKC 223 applications

Table 2: EKC 223 applications
o61 Applications
1 MT/LT, electrical defrost
2 MT, natural defrost, light
3 MT, natural defrost, alarm
4 Heating thermostat
(1) (1) The digital inputs DI1 and DI2 can be configured for multiple functions and DI1 can also be configured for a condenser temperature sensor Sc. The digital inputs DI1 and DI2 can be configured for multiple functions and DI1 can also be configured for a condenser temperature sensor Sc.
© Danfoss | Climate Solutions | 2023.05
DO1 DO2 DO3
DO1 DO2
DO4 AI1 AI2
Sair S5
Sair S5
Sair S5
Sair S5
DO3 AI1 AI2
Sair S5
Sair S5
Sair S5
Sair S5
BC432222569027en-000201 | 11
DI1 DI2
(1) (1)
DI1/Sc DI2
DI1/Sc DI2
DI1/Sc DI2
DI1 DI2
DI1 DI2
(1) (1)
DI1/Sc DI2
DI1/Sc DI2
DI1/Sc DI2
DI1 DI2
