EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía
S
04231xx0

Advertisement

Table of Contents
loading
Need help?

Need help?

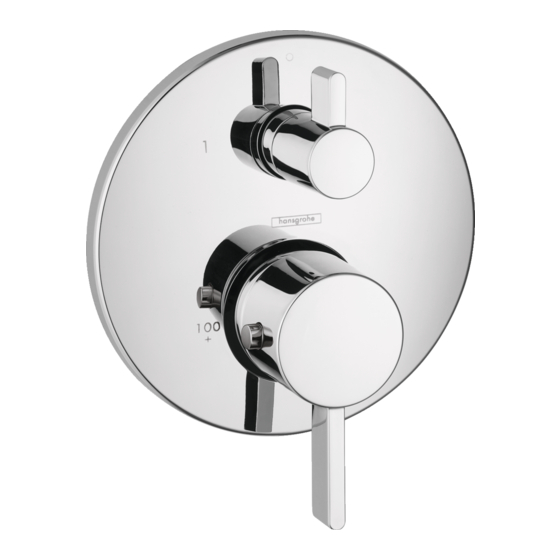

Do you have a question about the S 04231000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hans Grohe S 04231000

  • Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía 04231xx0...
  • Page 2: Technical Information

    English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140°...
  • Page 3 Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* max. 158°F (70°...
  • Page 4 04231xx0 ⅝" Service Stops / Butées d’arrêt d’isolation / Cierres de servicio closed ferme cerrado open ouvert 4 mm abierto 4 mm...
  • Page 5 Flush the hot and cold supplies / Rincez les conduites d’alimentation de l’eau chaude et de l’eau froide / Lave los suministros frío y caliente 4 mm > 5 min. > 5 min. English Français Español Remove the dust cover. Retirez l’étiquette.
  • Page 6: Installation / Installation / Instalación

    Installation / Installation / Instalación 4 mm 5 mm English Français Español Close the stops. Fermez l’eau à les butées d’arrêt Cierre el paso del agua en la d’isolation. entrada del suministro o los Cut the plaster shield so that cierres de servicio.
  • Page 7 4 mm English Français Español Insert the function block. Tighten Insérez le bloc de fonction. Inserte el bloque de función. the screws. Serrez les vis. Apriete los tornillos. Measure the distance from the Mesurez la distance entre la Mida la distancia entre la front of the plaster shield to one surface du mur et la bride du superficie de la pared y la brida...
  • Page 8 4 mm ½ " English Français Español Add ½" to this measurement. Ajoutez ½ po à cette longueur Agregue ½" a X. Anote esta « X ». Notez cette nouvelle medida. Cut each screw so that it is X + longueur.
  • Page 9 English Français Español Install the thermostatic mixer Installez la douille thermosta- Instale el casquillo de manera sleeve so that the indexing mark tique de façon à ce que la que la marca indicadora quede is at the 12:00 position. marque de repère soit à la posi- en posición de 12:00.
  • Page 10 2 mm 2.5 mm 3 mm English Français Español Lubricate the stems with a small Lubrifiez la tige de manoeuvre Lubrique el vástago de la vál- amount of white plumber's avec une petite quantité de vula con una pequeña cantidad grease.
  • Page 11 Set the high temperature limit stop / Réglage de la butée limite d’eau chaude / Ajuste el tope de límite de alta temperatura **To prevent scald injury, the maximum output tem- perature of the shower valve must be no higher than 120°F (49°C).
  • Page 12 Justify the handle / Réglez la poignée / Ajuste la manija 2.5 mm 2.5 mm...
  • Page 13 Replacement Parts / Pièces détachées / Repuestos 04231xx0 97350000 96447000 98283000 95181000 98133000 98540000 88767xx0 95253xx0 95037000 29x3 94282000 88772000 96454000 95550xx0 48x3 96552xx1 96435000 88770xx0 13595000 95181000 13596xx0 xx = Finishes / Couleurs / Acabados 00 = chrome 82 = brushed nickel 83 = polished nickel...
  • Page 14 Modify the diverter to allow simultaneous use of both functions / Modifiez l'inverseur pour permettre l’usage simultané des deux fonctions / Modifique el diverter para permitir el uso simultáneo de ambas funciones English Français Español Do not carry out this modifica- Ne pas exécuter cette modifica- No lleve a cabo esta modifi- cación si:...
  • Page 15 Cleaning / Nettoyage / Limpieza 4 mm 4 mm 24 mm 4 mm 24 mm...
  • Page 16 User Instructions / Instructions de service / Manejo fermé ouvert cerrar abierto ouvert abierto cold froid chaud chaud frío caliente caliente 100° F >100° F...
  • Page 17: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Insufficient water — Supply pressure inadequate — Check water pressure — Cartridge filters dirty — Clean the filters — Showerhead or handshower filter — Clean the filter dirty Crossflow: hot water forced into — Check valves dirty or worn —...
  • Page 18: Dépannage

    Dépannage Dysfonctionnement Origine Solution Pas assez d´eau — Pression d´alimentation insuffisante — Contrôlez la pression — Filtre de l´élément thermostatique — Nettoyez les filtres encrassé — Joint-filtre de douchette encrassét — Nettoyez le joint-filtre entre la douchette et le flexible Circulation opposée, l´eau chaude —...
  • Page 19: Localización De Fallas

    Localización de fallas Problema Causa Solución Sale poca agua — presión insuficiente — comprobar presión — filtro del termoelemento sucio — limpiar filtro — filtro de la ducha sucio — limpiar / cambiar filtros entre flexo y ducha Flujo de agua cruzada agua cali- —...
  • Page 20 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
  • Page 21 Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
  • Page 24: Limited Consumer Warranty

    Limited Consumer Warranty This warranty is limited to products manufactured by Hansgrohe, conditions in the home such as excessive water pressure Inc. (“Hansgrohe”) that are purchased by a consumer in the United or corrosion. States or Canada after March 1, 1996, and installed in either the Labor and other expenses for disconnection, deinstallation, United States or in Canada.

This manual is also suitable for:

S 04231 0 series
