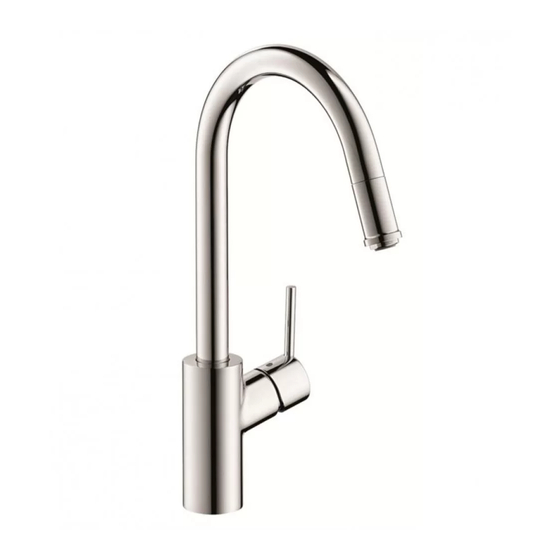

Hans Grohe Talis S 14872 1 Series Manual
  1. Manuals
  2. Brands
  3. Hans Grohe Manuals
  4. Kitchen & Bath Fixtures
  5. Talis S 14872 1 Series
  6. Manual

Hans Grohe Talis S 14872 1 Series Manual

Hide thumbs Also See for Talis S 14872 1 Series:

Advertisement

Quick Links

Download this manual
EN
Installation / User Instructions / Warranty
FR
Instructions de montage / Mode d'emploi / Garantie
ES
Instrucciones de montaje / Manejo / Garantía
Talis S
14872xx1
Talis S
14877xx1
04310xx1
04286xx0
Focus
31815xx1
04505xx0
04506xx1
Talis S
04247xx0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Talis S 14872 1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hans Grohe Talis S 14872 1 Series

Summary of Contents for Hans Grohe Talis S 14872 1 Series

  • Page 1 Installation / User Instructions / Warranty Instructions de montage / Mode d'emploi / Garantie Instrucciones de montaje / Manejo / Garantía Talis S Focus 14872xx1 31815xx1 04505xx0 04506xx1 Talis S Talis S 14877xx1 04247xx0 04310xx1 04286xx0...

  • Page 2: Technical Information

    English Français Technical Information Données techniques Recommended water pressure 15 - 75 PSI Pression d’eau recommandée 15 - 75 PSI Max. water pressure 145 PSI Pression d’eau maximum 145 PSI Recommended hot water temp. 120° - 140° F* Température recommandée 120°...

  • Page 3: Consideraciones Para La Instalación

    Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión recomendada en servicio 15 - 75 PSI Presión en servicio max. 145 PSI Temperatura recomendada del 120° - 140° F* agua caliente Temperatura del agua caliente max. 176°F* Caudal máximo - 04310xx1 1.5 GPM Caudal máximo - 04505xx0...
  • Page 4 1⅛" 3⅛" 2⅛" 8¾" 5¼" 3¾" 2" 1⅜" ⅜" 14877xx1 04310xx1 1⅛" 1⅛" 5¼" 8¼" 3¾" 7⅜" 5¼" 3¾" 2" 2" 1⅜" 1⅜" ⅜" ⅜" 04286xx0 14872xx1...
  • Page 5 9¼" 1⅛" 1⅛" 3¾" 5⅜" 2½" 3⅞" 7⅜" 2" 2" 8⅝" 1⅜" 1⅜" ⅜" ⅜ 31815xx1 04506xx1 04505xx0 4⅛" 3⅝" 1¼" 2" 1⅜" 9" 10" ⅜ 04247xx0...

  • Page 6: Installation / Installation / Instalación

    Installation / Installation / Instalación English Français Español Place the faucet and sealing ring Placez l'anneau d'étanchéite Coloque el oro de sellado y on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage.
  • Page 7 CLICK! English Français Español Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- hoses to the stops. d'eau chaude et d'eau froide aux nistro de agua caliente y fría a tuyau d'alimentation. las alimentaciones de la red. Use two wrenches.
  • Page 8 English Français Español Install the hose weight on the Installez le contrepoids sur le Instale el contrapeso. handshower side of the hose, tuyau. near the loop. Test the handspray hose. If it Tirez sur la douchette. Elle Tire del rociador de mano. Debe does not retract smoothly, reposi- devrait coulisser facilement et se moverse con facilidad y retraerse...
  • Page 9 > 2 min English Français Español Remove the sprayhead. Retirez la douchette. Retire la ducha. Remove the hose filter. Retirez le filtre. Retire el filtro. Flush the faucet for at least two Rincez le robinet pour un mini- Enjuague el grifo durante un minutes.
  • Page 10 Do not over- tighten! Ne serrez pas avec une force excessive! No apriete en exceso. English Français Español Flush the hose filter. Rincez le filtre. Enjuague el filtro. Reinstall the hose filter and Installez le filtre et la douchette. Instale el filtro y la ducha. sprayhead.
  • Page 11 Set the High Temperature Limit Stop (optional) / Réglage de la butée limite d’eau chaude (en option) / Ajuste el tope de límite de alta temperatura (opcional) 140°F 50° F 44 PSI...
  • Page 12 Replacement Parts / Pièces détachées / Repuestos 14877xx1 04310xx1 95562xx0 (14877/14872 / 04310) 04286xx0 14872xx1 95560xx0 97735000 96338000 95498xx0 95140000 37x2 97209000 88658xx0 2.2 gpm 92730000 88658xx1 1.5 gpm 96316001 97523000 41x2 88659xx0 13913xx0 97350000 95340000 14877/ 04286 / 14872 95376000 04310xx1 95561000 95049000...
  • Page 13 Replacement Parts / Pièces détachées / Repuestos 04247xx0 95560xx0 95340000 94074000 95140000 95008000 96468xx0 97209000 97999xx1 92730000 96316001 95561000 97523000 95049000 88624000 98551000 xx = Colors / Couleurs / Acabados 00 = Chrome 82 = Steel Optik...
  • Page 14 Replacement Parts / Pièces détachées / Repuestos 31815xx1 04505xx0 04506xx1 95562xx0 98193000 (31815xx1, 04505xx0) (32x2) 98460xx0 98127000 (11x2) 96338000 95498xx0 97209000 92730000 97735000 95340000 (31815xx1, 04506xx1) 97350000 98231000 (18x1,5) 95140000 98459xx1 95008000 96316001 98140000 95909000 (20x1) 95910000 97523000 95561000 95049000 88624000 98551000 xx = Colors / Couleurs / Acabados...
  • Page 15 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold froid chaud frío caliente 14877xx1, 04310xx1, 04286xx0...
  • Page 16 User Instructions / Instructions de service / Manejo 04247xx0 31815xx1 / 04505xx0 / 04506xx1 Cleaning / Nettoyage / Limpieza...
  • Page 17 Cleaning / Nettoyage / Limpieza - 31815xx1/04505xx0/04506xx1 Maintenance / Entretien / Mantenimiento...
  • Page 18 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
  • Page 19 Conseil de nettoyage pour les produits Hansgrohe Les robinets pour les salles de bains et les cuisines modernes ainsi que les produits récents pour les douches se com- posent de matériaux différents afin de satisfaire aux besoins du marché en termes de conception et de fonctionnalité. Afin d'éviter d'endommager le produit, il est nécessaire d'en prendre soin.

  • Page 20: Limited Consumer Warranty

    Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza.
  • Page 21 Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only.
  • Page 22 EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
  • Page 24 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 800-334-0455 • Fax 770-360-9887 www.hansgrohe-usa.com...
