Owner's Manual
Flex Insight Desk
38979

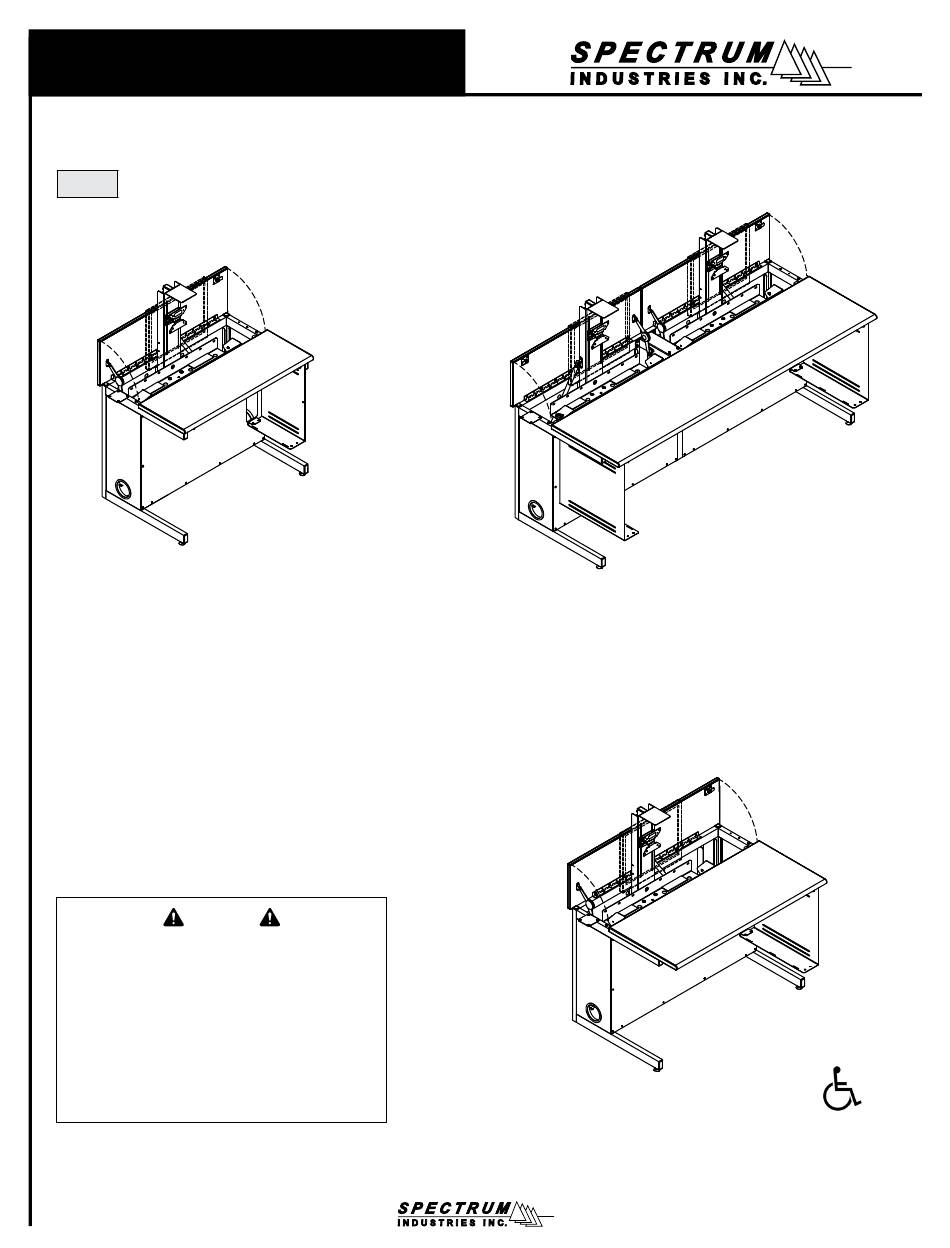

36"W x 24"D Single desk
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 5 days of receipt. To report information regarding
missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
72"W x 30"D Double desk
42"W x 30"D
Single ADA desk
0107821R8 Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Spectrum Industries Flex Insight Desk 38979
Summary of Contents for Spectrum Industries Flex Insight Desk 38979
- Page 1 42”W x 30”D Thank you for purchasing Spectrum products! Single ADA desk Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
-
Page 2: Assembly & Set-Up
If servicing is • Do not step on, drive over, drag, or place objects on power cords. necessary, please contact Spectrum Industries for assistance. • For added safety, plug into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker. - Page 3 2. Install glides Glide wrench 1. Carefully lift one side of the desk and place a short wooden 4x4 or 2x4 block (or equivalent support) under the leg. This may require two people. Figure 2. 2. Thread the two glides into the leg, tighten securely, and remove block. 3.
-
Page 4: Monitor Installation
4. Monitor installation Phillips screwdriver 1. Attach the VESA mount (butterfly-shaped portion) to the back of your flat panel monitor with (4) M4 x 12mm PHM screws. (Holes on top, slots on bottom). Figure 4A. Note: On most flat panel monitors, it 4mm Hex will be necessary to remove the standard base that comes with the wrench... - Page 5 5. CPU installation (Note-some desks do not include CPU slings) 1. Set the CPU unit into the CPU sling. 2. Make sure the CPU will be supported by both straps. Tighten the straps around the CPU while keeping the buckles positioned as high as possible to avoid interference. Figure 5A. Note: The center slot can be used for better support of smaller profile CPU’s.
-
Page 6: Cord Management
6. Cord management Flat head screwdriver 1. With the back panel removed, connect the necessary monitor, keyboard, and mouse cords above the worksurface. 2. Position the keyboard as shown approximately 6” from the front edge of the worksurface with the mouse on the opposite side of the CPU as shown. - Page 7 4. With the loom removed, feed the monitor, keyboard, and mouse cords through the sliced opening of the loom to the bottom of the desk as shown. Figure 6D. 5. Split the CPU wires out of loom approximately 3/4 of the way down the loom and plug into the CPU. 6.
-
Page 8: Operation
Operation For computer use: 1. Open the monitor compartment lid. 2. Raise the monitor by pulling up on the lift bracket until fully extended. Lift bracket 3. Take out the keyboard and mouse and set on the worksurface. Monitor compartment lid Monitor compartment lid For classroom (worksurface) use:... - Page 9 Accessories Note: 1 sling is required on single desks, 2 on double desks CPU Sling for 24”D desks - 38981 Cover Plate - 38978 1” [2.54 cm] Bell Glide Riser Kit - 98513 • 4-8”W [10.2-20.3 cm] x 12”D [30.5 cm] x 18”H [45.7 cm] •...
-
Page 10: Warranty
• 10 Years • Cart Chassis • Lectern Chassis DESIGNED AND ASSEMBLED IN CHIPPEWA FALLS WISCONSIN.USA 925 FIRST AVENUE, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2016 Spectrum Industries Inc., All rights reserved. 0107821R8 Page 10 of 10...
