Owner's Manual
Flex Insight Desk
38955
36" single desk
38957

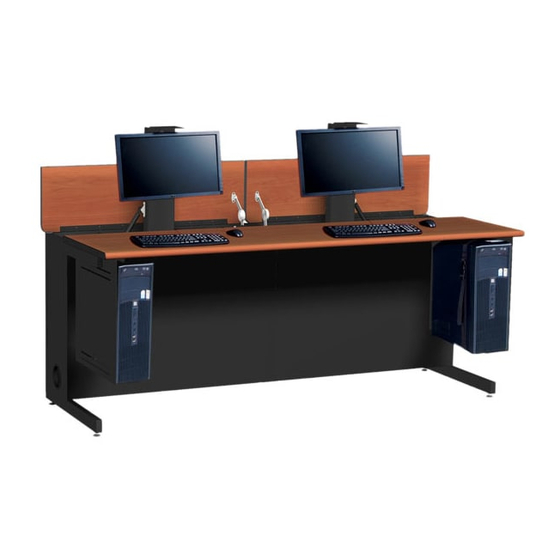

72" double desk
38956
42" single desk with ADA clearance
38958
36" single desk with lock
38960
72" double desk with lock
38959
42" single desk with ADA clearance and lock
36" single desk
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
72" double desk
42" single desk with ADA clearance
0107821R5 Page 1 of 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries Flex Insight Desk 38955
Summary of Contents for Spectrum Industries Flex Insight Desk 38955
- Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
-
Page 2: Assembly & Set-Up
If servicing is necessary, please • Do not step on, drive over, drag, or place objects on the power cord. contact Spectrum Industries for assistance. • For added safety, plug the cart into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker. - Page 3 2. Install glides glide wrench 1. Carefully lift one side of the desk and place a short wooden 4x4 or 2x4 block (or equivalent support) under the leg. This may require two people. Figure 2. 2. Thread the two glides into the leg, tighten securely, and remove block. 3.
-
Page 4: Monitor Installation
4. Monitor installation Phillips screwdriver 1. Attach the VESA mount (butterfly-shaped portion) to the back of your flat panel monitor with (4) M4 x 12mm PHM screws. (Holes on top, slots on bottom). Figure 4A. Note: On most flat panel monitors, it 4mm hex will be necessary to remove the standard base that comes with the wrench... -
Page 5: Cpu Installation
5. CPU installation 1. Set the CPU unit into the CPU sling. 2. Make sure the CPU will be supported by both straps. Tighten the straps around the CPU while keeping the buckles positioned as high as possible to avoid interference. Figure 5A. Note: The center slot can be used for better support of smaller profile CPU’s. -
Page 6: Cord Management
6. Cord management flat head screwdriver 1. With the back panel removed, connect the necessary monitor, keyboard, and mouse cords above the worksurface. 2. Position the keyboard as shown approximately 6” from the front edge of the worksurface with the mouse on the opposite side of the CPU as shown. - Page 7 4. With the loom removed, feed the monitor, keyboard, and mouse cords through the sliced opening of the loom to the bottom of the desk as shown. Figure 6D. 5. Split the CPU wires out of loom approximately 3/4 of the way down the loom and plug into the CPU. 6.
-
Page 8: Operation
Operation For computer use: 1. Open the monitor compartment lid. 2. Raise the monitor by pulling up on the lift bracket until fully extended. lift bracket 3. Take out the keyboard and mouse and set on the worksurface. monitor compartment lid monitor compartment lid For classroom (worksurface) use:... - Page 9 Options 1” Bell Glide Riser Kit raises worksurface height from 29” to 30” (set of 4) 98513 EP8 Kits and Accessories EP8 Kit for 30” Desk - 99014 In-Line Surge Suppressor 36” Desk - 99008 99016 44” Desk - 99009 48”...
-
Page 10: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
