Pay Channels - ProScan PSVR83 User Manual

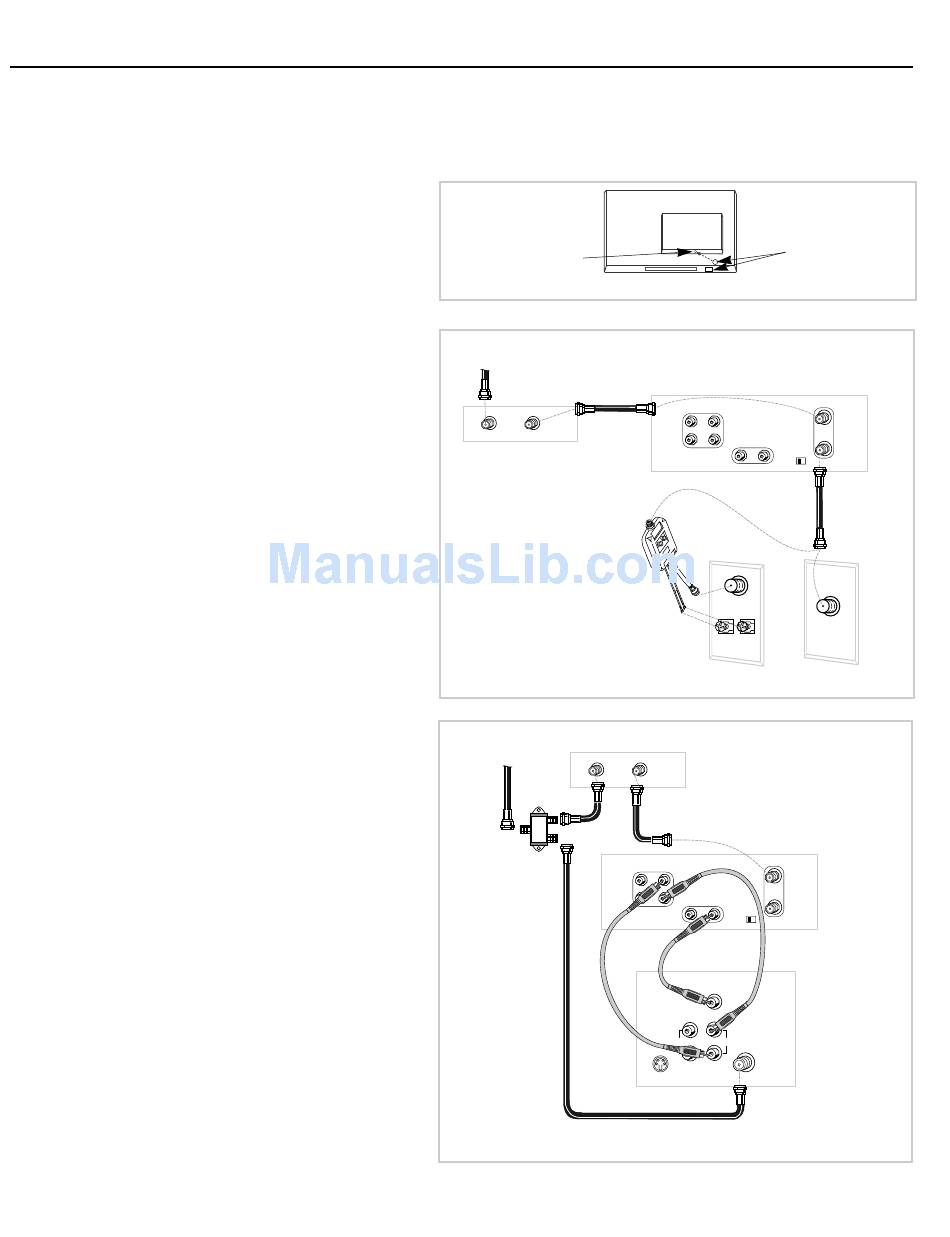

Cable System with Cable Box to Unscramble Only Pay Channels
(such as HBO, Showtime, Pay-Per-View, etc.)
Position Cable Box
Position the remote-controllable cable box on top
of the VCR. You may need to position it at
different angles before the VCR can control it.
Make sure the cable box does not cover the
transmitting window on top of the VCR.
Basic Hookup
Use this hookup for a basic connection which
requires fewer accessories.
1. Set the CH3 CH4 switch on back of VCR to
either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR, TV, and
cable box.
4. Go to page 10 for VCR setup information.
Advanced Hookup
Use this hookup for slightly improved picture
quality, hi-fi stereo playback, and more convenient
operation Ñ use of TV¥VCR button not required.
1. Connect as shown.
This connection requires additional
accessories not provided.
If your TV is not stereo, a Y-adapter may be
required to hear sound from both channels.
2. Plug in power cords of VCR, TV, and
cable box.
3. Go to page 10 for VCR setup information.
You will tune the TV to its video input to
watch the VCR. All pay channels are viewed
through the VCR.
Cable System with Cable Box to Unscramble Only Pay Channels
Remote Sensor
From Cable
IN
From Cable
Cable Box
RF Coaxial
Cable Box
Cable
MONO
L
OUT
R
75 to 75/300 Ohm
Separator
Cable Box
IN OUT
Signal
Splitter
MONO
L L
R R
IN OUT
AUDIO
Audio/Video Cables
RF Coaxial
Cable
(supplied)
OUT
S-VIDEO
Back of TV
Transmitting
Windows
Back of VCR
IN
FROM
L
ANTENNA
VIDEO
R
OUT
IN OUT
TO
IN OUT
CH
TELEVISION
AUDIO
3 4
RF Coaxial Cable
(supplied)
VHF
OR
Cable/
Antenna
UHF
Back of TV
Back of VCR
IN
FROM
ANTENNA
VIDEO
OUT
IN OUT
TO
CH
TELEVISION
3 4
VIDEO
INPUT
RIGHT
AUDIO IN
CABLE /
L /
ANTENNA
MONO
5
