Digital Satellite Receiver

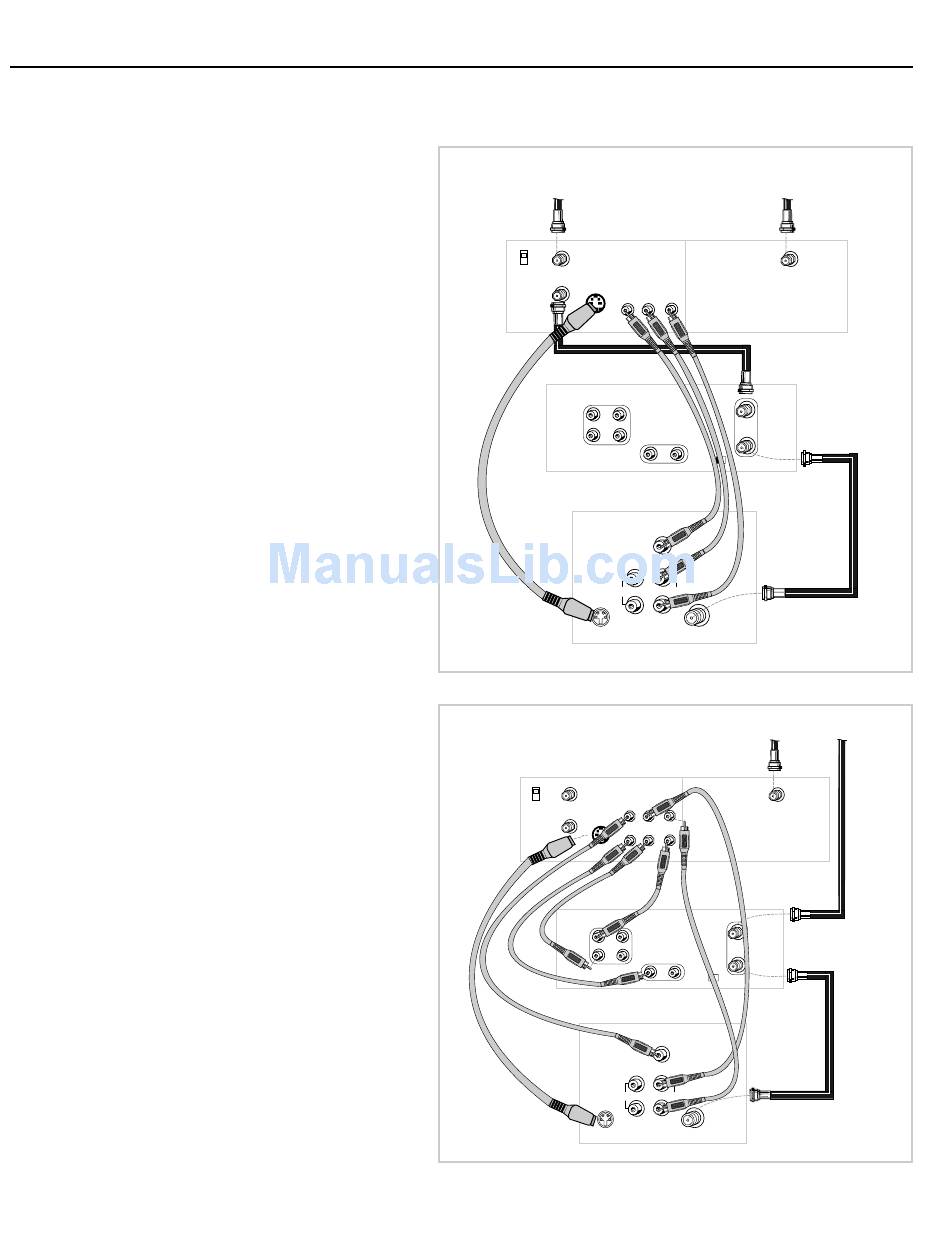

Advanced Hookup with Basic
Receiver
Use this hookup if your TV has audio/video jacks
and your receiver has one set of AUDIO/VIDEO
jacks.
1. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the VCR to this channel to
record from the satellite receiver.
To watch the satellite receiver, tune your TV
to its video input channel.
If you want to watch or record the signal
from your antenna, cable, or cable box, make
sure the satellite receiver is turned off.
2. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCR, TV, and
receiver.
5. Go to page 10 for VCR setup information.
Advanced Hookup with Deluxe
Receiver
Use this hookup if your TV has audio/video jacks
and your receiver has two sets of AUDIO/VIDEO
jacks.
1. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
To record from the satellite receiver, you will
tune the VCR to its line input
To watch the satellite receiver, tune your TV
to its video input channel.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR, TV, and
receiver.
4. Go to page 10 for VCR setup information.
(L1).
Digital Satellite Receiver
From
Cable, Cable Box
or Antenna
Back of Satellite Receiver
CH3
CH4
IN FROM ANT
OUT TO TV
S-VIDEO
VIDEO R AUDIO L
RF Coaxial Cable
Back of VCR
MONO
L L
VIDEO
R R
IN OUT
IN OUT
AUDIO
Audio/Video Cables
(supplied)
VIDEO
INPUT
RIGHT
OUT AUDIO IN
S-VIDEO
L /
MONO
Back of TV
Back of Satellite Receiver
CH3
CH4
IN FROM ANT
OUT TO TV
S-VIDEO
VIDEO R AUDIO L
Audio/Video Cables
(supplied)
MONO
L L
VIDEO
R
R
IN OUT
IN OUT
AUDIO
Audio/Video Cables
VIDEO
INPUT
RIGHT
OUT AUDIO IN
S-VIDEO
L /
MONO
Back of TV
From
Satellite
Dish
SATELLITE IN
IN
FROM
ANTENNA
OUT
TO
CH
TELEVISION
3 4
RF Coaxial Cable
(supplied)
CABLE /
ANTENNA
From
From
Satellite Cable Box
Dish or Antenna
SATELLITE IN
Back of VCR
IN
FROM
ANTENNA
OUT
TO
CH
TELEVISION
3 4
RF Coaxial Cable
(supplied)
CABLE /
ANTENNA
7
