Hooking Up the VCR

Digital Satellite Receiver

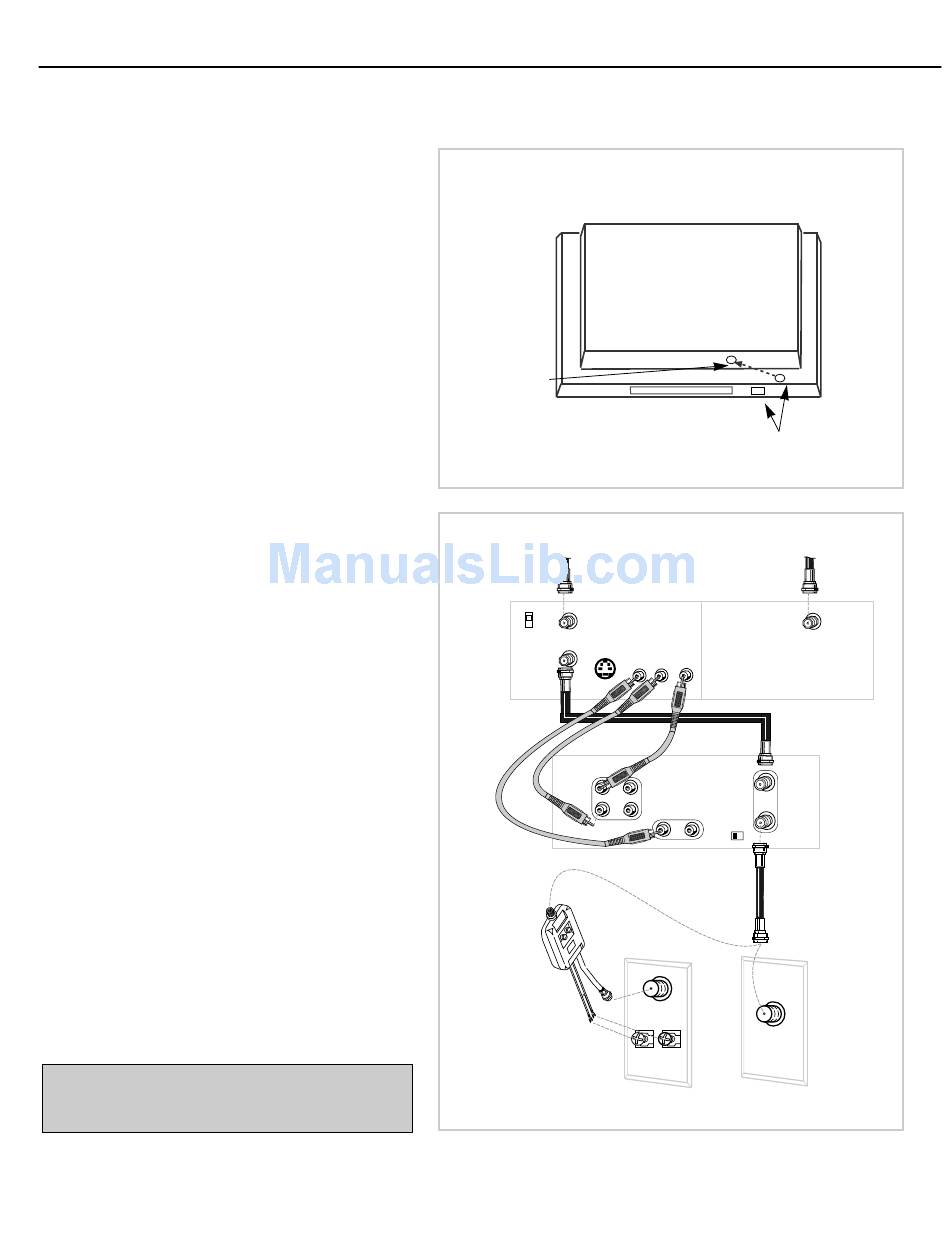

Position the Receiver
Position the receiver above the VCR. You may need
to position it at different angles before the VCR can
control it. Make sure the receiver does not cover the
transmitting window on top of the VCR.
Do not stack electronic components or other objects
on top of the satellite receiver. The slots on top of
the receiver must be left uncovered to allow proper
airflow to the unit. Blocking the airflow to the unit
could impair performance or damage your receiver
and other components. Also, do not stack the
satellite receiver on top of a Òhot componentÓ such
as an audio power amplifier.
Basic Hookup
Use this hookup if your TV does not have
audio/video jacks.
1. Set the CH3 CH4 switch on the back of the
satellite receiver to either channel 3 or 4.
You will tune the VCR to this channel or its
line input (L1) to record from the receiver.
To watch the satellite receiver, turn off the
VCR.
If you want to watch or record the signal from
your antenna, cable, or cable box, make sure
the satellite receiver is turned off.
2. Set the CH3 CH4 switch on back of VCR to
either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCR, TV, and
receiver.
5. Go to page 10 for VCR setup.
Caution: The unauthorized recording of satellite broadcasts,
television programs, or other materials may infringe upon the
rights of others.
6
Remote Sensor
From
Cable, Cable Box
or Antenna
Back of Satellite Receiver
CH3
CH4
IN FROM ANT
OUT TO TV
S-VIDEO
VIDEO
Audio/Video Cables
(supplied)
MONO
L
R
IN OUT
AUDIO
Back of VCR
75 to 75/300 Ohm
Separator
Satellite Receiver
Transmitting
Windows
From
Satellite
Dish
SATELLITE IN
R AUDIO L
RF Coaxial Cable
IN
FROM
L
ANTENNA
VIDEO
R
OUT
IN OUT
TO
CH
TELEVISION
3 4
RF Coaxial Cable
(supplied)
VHF
OR
Cable/
Antenna
UHF
Back of TV
