Connecting a Stereo Amplifier/Receiver

Record on the VCR from an
amplifier/receiver.
Connect your VCR to a stereo amplifier/
receiver to record stereo audio.
1. Select a hookup from pages 2 through 5
and then modify with this connection.
2. Connect as shown.
This connection requires additional
accessories not provided.
3. Plug in power cords of amplifier/
receiver, VCR, and TV.
4. Turn to page 46 for ÒRecording Audio
Only.Ó
You will select the L1 input
(audio/video) on the VCR to receive the
audio signal from the
amplifier/receiver.
5. Go to page 10 for VCR setup
information.
Play back stereo tapes or
receive a stereo broadcast
through an amplifier/receiver.
Connect your VCR to a stereo
amplifier/receiver to receive stereo
broadcasts or play back stereo tapes.
1. Select a hookup from pages 2 through 5
and then modify with this connection.
2. Connect as shown.
This connection requires additional
accessories not provided.
3. Plug in power cords of amplifier/
receiver, VCR, and TV.
4. Turn to page 33 for ÒTape Playback .Ó
5. Go to page 10 for VCR setup
information.

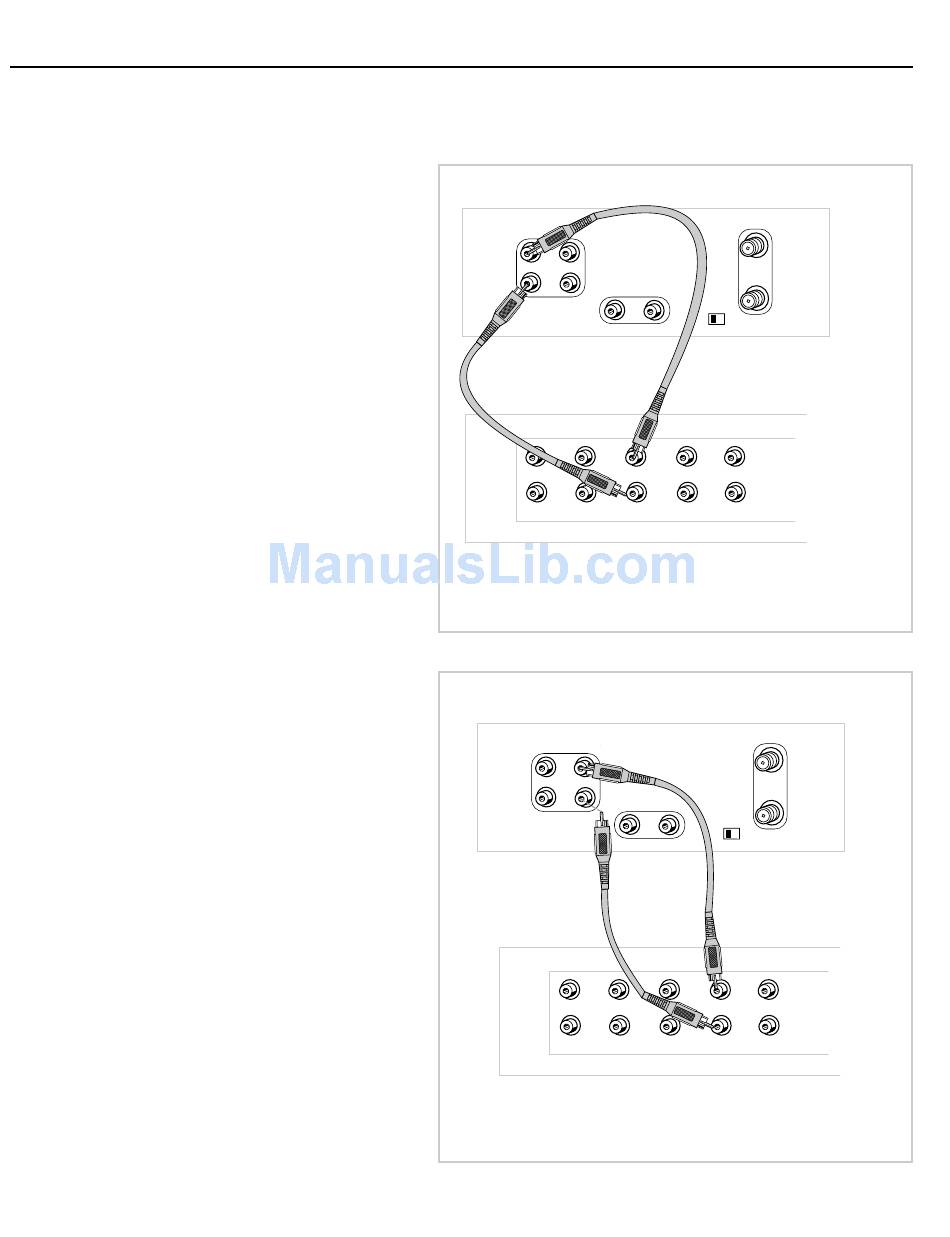

Connecting a Stereo Amplifier/Receiver
Back of VCR
MONO
L L
VIDEO
R R
IN OUT
IN OUT
AUDIO
Audio/Video Cables
LEFT
RIGHT
REC
PHONO TUNER TAPE
Back of Amplifier/Receiver
Back of VCR
MONO
L L
VIDEO
R R
IN
IN OUT
AUDIO
Audio/Video
Cables
LEFT
RIGHT
PHONO TUNER
Back of Amplifier/Receiver
IN
FROM
ANTENNA
OUT
TO
TELEVISION
CH
3 4
PLAY
AUX
IN
FROM
ANTENNA
OUT
OUT
TO
TELEVISION
CH
3 4
REC PLAY
TAPE AUX
9
