All Channels; Position Cable Box - ProScan PSVR83 User Manual

Hooking Up the VCR

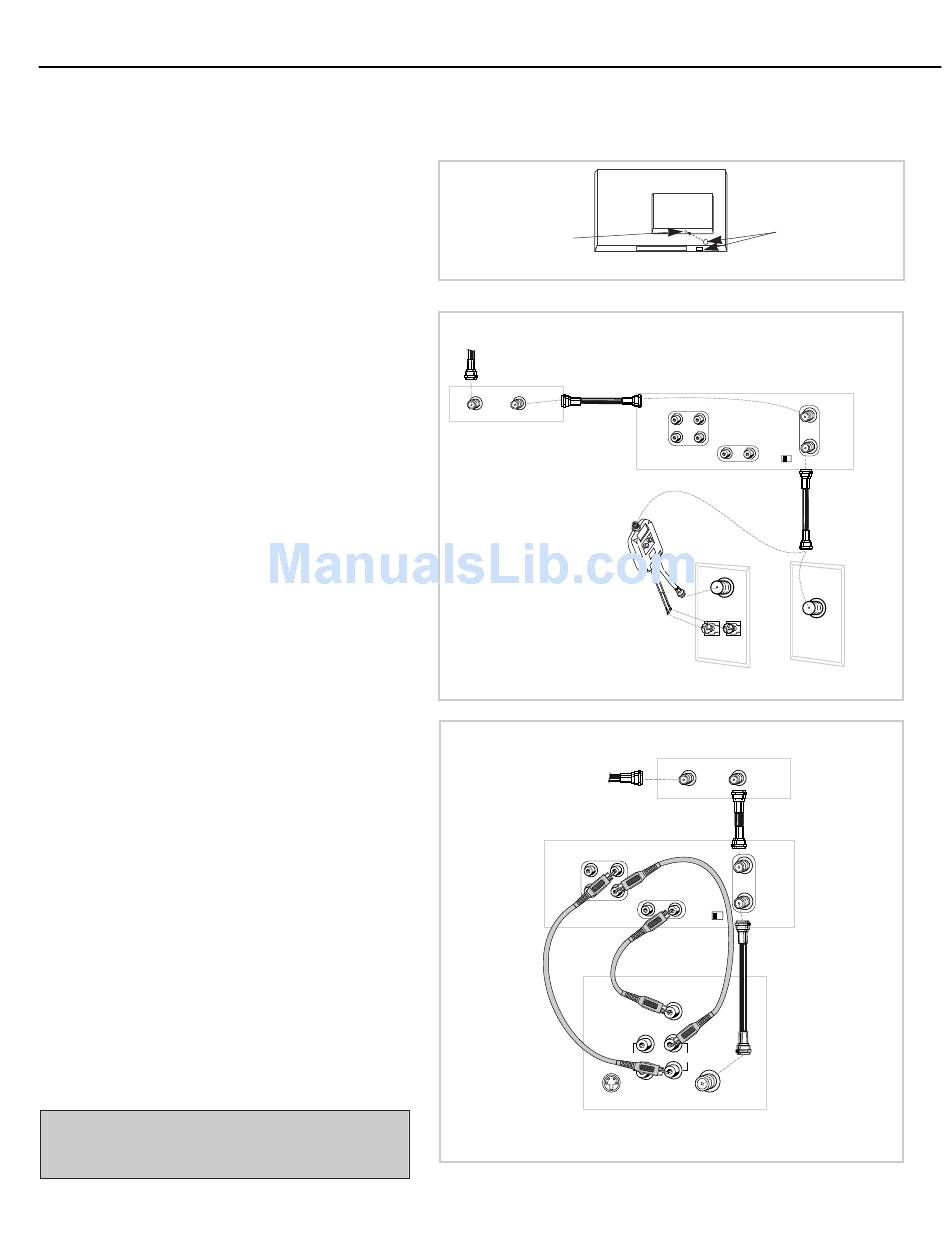

Cable System with Cable Box to Unscramble All Channels

Position Cable Box

Position the remote-controllable cable box on top of
the VCR. You may need to position it at different
angles before the VCR can control it. Make sure the
cable box does not cover the transmitting window
on top of the VCR.
Basic Hookup
Use this hookup for a basic connection which
requires fewer accessories.
1. Set the CH3 CH4 switch on back of VCR to
either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR, TV, and
cable box.
4. Go to page 10 for VCR setup information.
Advanced Hookup
Use this hookup for slightly improved picture
quality, hi-fi stereo playback, and more convenient
operation Ñ use of TV¥VCR button not required.
1. Connect as shown.
This connection requires additional
accessories not provided.
If your TV is not stereo, a Y-adapter may be
required to hear sound from both channels.
2. Plug in power cords of VCR, TV, and
cable box.
3. Go to page 10 for VCR setup information.
You will tune the TV to its video input to
watch the VCR.
Set the Auto TV/VCR feature to OFF.
(See page 18.)
Caution: The unauthorized recording of satellite broadcasts,
television programs, or other materials may infringe upon the
rights of others.
4
Remote Sensor
From Cable
RF Coaxial
Cable
IN OUT
Cable Box
75 to 75/300 Ohm
Separator
From Cable
Back of VCR
MONO
L
R
IN OUT
AUDIO
OUT
S-VIDEO
Back of TV
Cable Box
Transmitting
Windows
Back of VCR
MONO
L L
VIDEO
R
R
IN OUT
IN OUT
CH
AUDIO 3 4
RF Coaxial Cable
(supplied)
VHF
OR
Cable/
Antenna
UHF
Back of TV
Cable Box
IN OUT
RF Coaxial
Cable
IN
FROM
L
ANTENNA
VIDEO
R
OUT
IN OUT
TO
CH
TELEVISION
3 4
Audio/Video Cables RF Coaxial Cable
(supplied)
VIDEO
INPUT
RIGHT
AUDIO IN
CABLE /
L /
ANTENNA
MONO
IN
FROM
ANTENNA
OUT
TO
TELEVISION
