Hooking Up the VCR

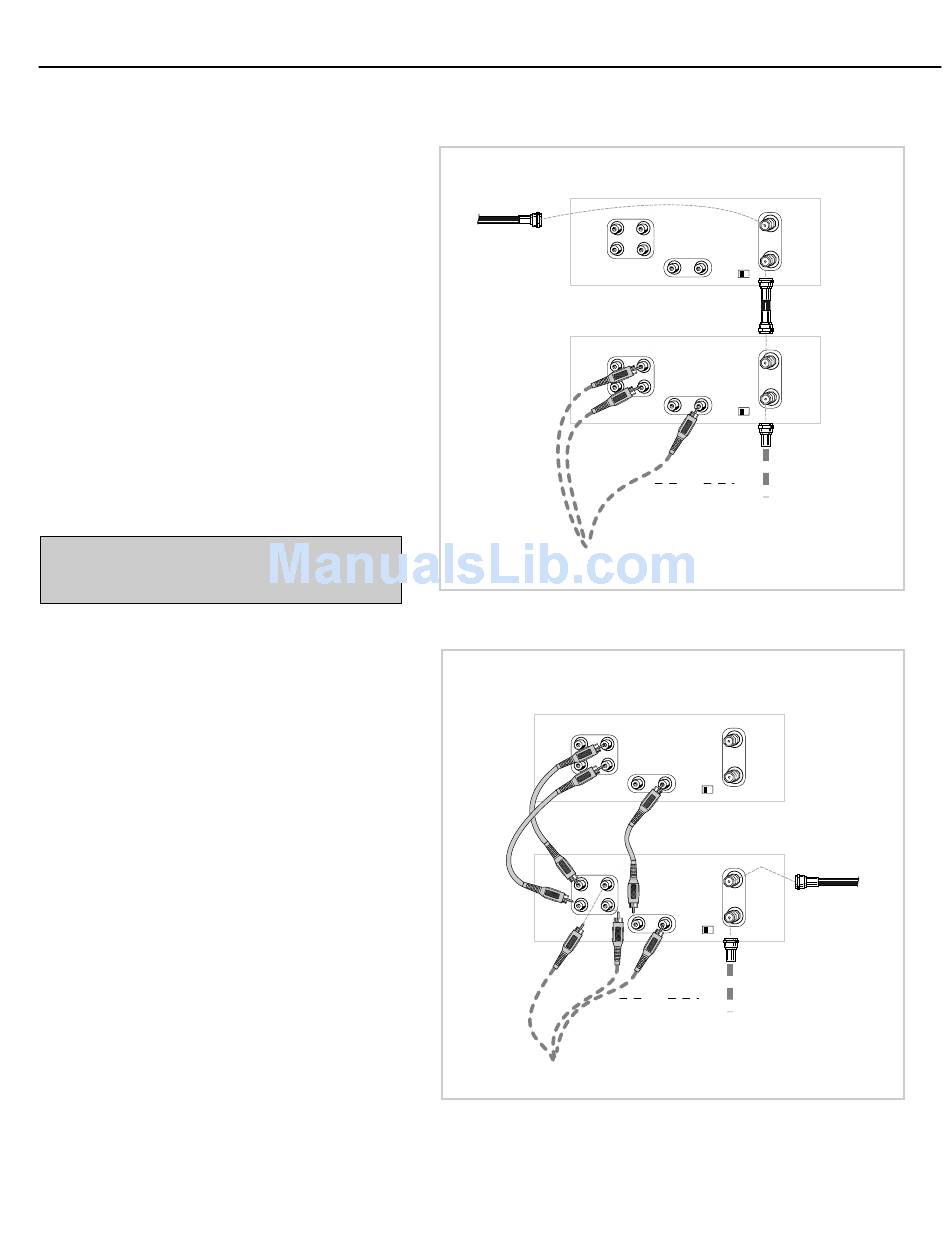

Connecting Two VCRs for Copying Tapes

Basic Hookup
Use this hookup for a basic connection which
requires fewer accessories.
1. Select a hookup from pages 2 - 5, and then
modify with this connection.
2. Set the CH3 CH4 switch on the playback
VCR to either channel 3 or 4.
You will tune the recording VCR to this
channel to receive the signal from the
playback VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCRs and TV.
5. Go to page 10 for VCR setup information.
Caution: The unauthorized recording of satellite
broadcasts, television programs, or other materials may
infringe upon the rights of others.
Advanced Hookup
Use this hookup for slightly improved copy
quality and more convenient operation Ñ use of
TV¥VCR button not required.
1. Select a hookup from pages 2 - 5, and then
modify with this connection.
2. Connect as shown.
This connection requires additional
accessories not provided.
If your other VCR is not stereo, plug this
VCR into the AUDIO L MONO jack of the
other VCR to hear sound from both channels.
3. Plug in power cords of VCRs and TV.
4. Go to page 10 for VCR setup information.
You will select the line input (audio/video)
on the recording VCR to receive the signal
from the playback VCR.
8
Playback VCR
From Antenna, Cable
or Cable Box
MONO
L
R
IN
AUDIO
Recording VCR
MONO
L
R
IN
AUDIO
Audio/Video
Cables
Use the previously selected
Playback VCR
MONO
L L
R
R
IN
IN OUT
AUDIO
MONO
L L
R R
IN OUT
AUDIO
Audio/Video
Cables
Use the previously selected
hookup to the TV.
IN
FROM
L
ANTENNA
VIDEO
R
OUT
IN OUT
OUT TO
CH
TELEVISION
3 4
RF Coaxial Cable
(supplied)
IN
FROM
L ANTENNA
VIDEO
R
OUT
IN OUT
TO
OUT
CH TELEVISION
3 4
RF Coaxial
Cable
or
hookup to the TV.
IN
FROM
ANTENNA
VIDEO
OUT
OUT
TO
CH
TELEVISION
3 4
Recording
Audio/Video
VCR
Cables
From Antenna, Cable
or Cable Box
IN
FROM
ANTENNA
VIDEO
OUT
IN OUT
TO
CH
TELEVISION
3 4
RF Coaxial
Cable
or
