Antenna or Cable System Without a Cable Box

Basic Hookup

Use this hookup for a basic connection which
requires fewer accessories.
1. Set the CH3 CH4 switch on back of VCR to
either channel 3 or 4.
Tune the TV to this channel and use the
TV¥VCR button to watch the VCR.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR and TV.
4. Go to page 10 for VCR setup information.

Advanced Hookup

Use this hookup for slightly improved picture
quality, hi-fi stereo playback, and more convenient
operation Ñ use of TV¥VCR button not required.
1. Connect as shown.
This connection requires additional
accessories not provided.
If your TV is not stereo, a Y-adapter may be
required to hear sound from both channels.
2. Plug in power cords of VCR and TV.
3. Go to page 10 for VCR setup information.
You will tune the TV to its video input to
watch the VCR.
Set the Auto TV/VCR feature to OFF.
(See page 18.)

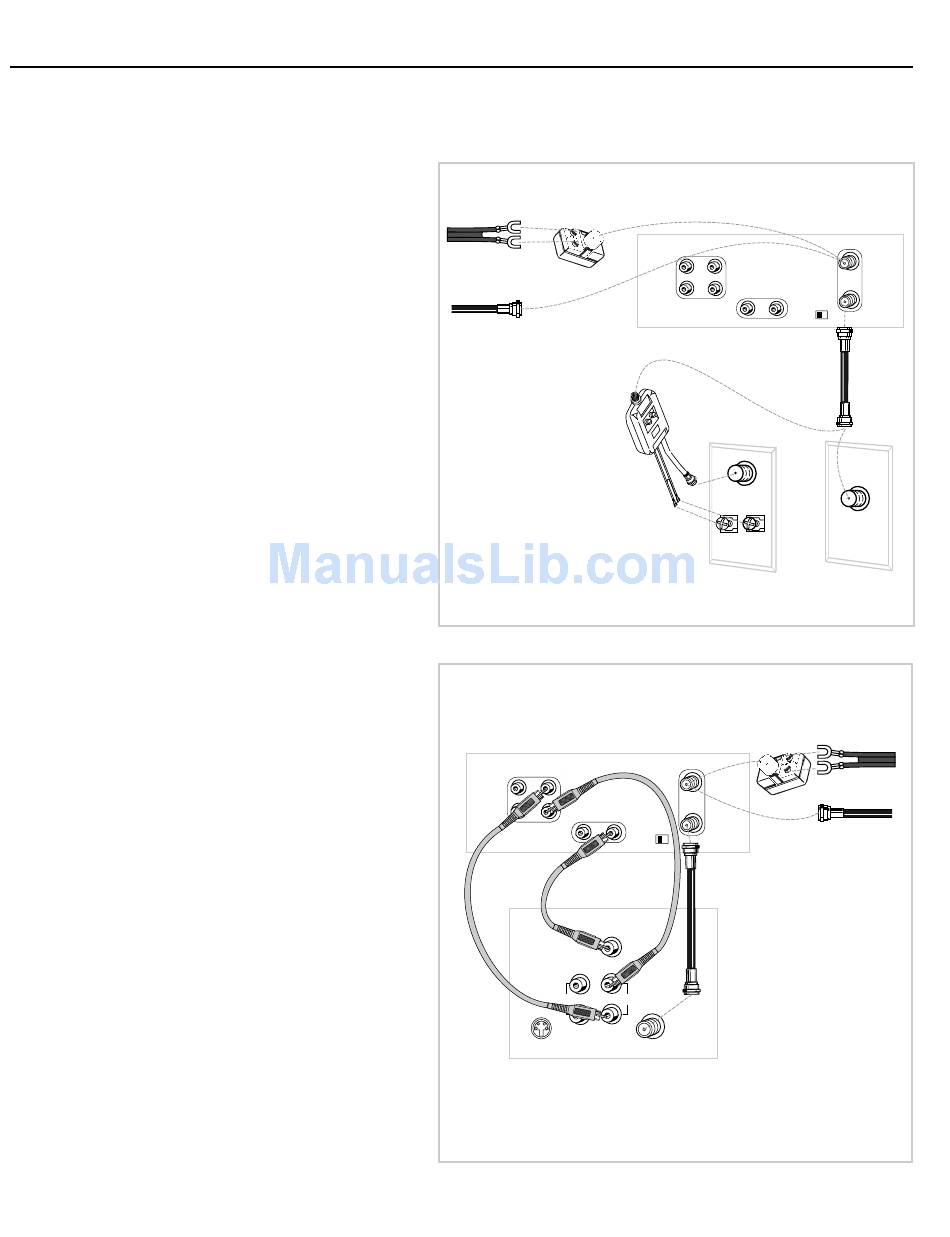

Antenna or Cable System Without a Cable Box
From Antenna
300/75 Ohm
or Cable
Adapter
OR
75 to 75/300 Ohm
Separator
Back of VCR
MONO
L L
VIDEO
R R
IN OUT
IN OUT
AUDIO
Audio/Video Cables
VIDEO
INPUT
RIGHT
OUT AUDIO IN
S-VIDEO
L /
MONO
Back of TV
Back of VCR
MONO
L L
VIDEO
R
R
IN OUT
IN OUT
CH
AUDIO
3 4
RF Coaxial Cable
(supplied)
VHF
OR
Antenna
UHF
Back of TV
From Antenna
300/75 Ohm
Adapter
IN
FROM
ANTENNA
OUT
TO
CH TELEVISION
3 4
RF Coaxial Cable
(supplied)
CABLE /
ANTENNA
IN
FROM
ANTENNA
OUT
TO
TELEVISION
Cable/
or Cable
OR
