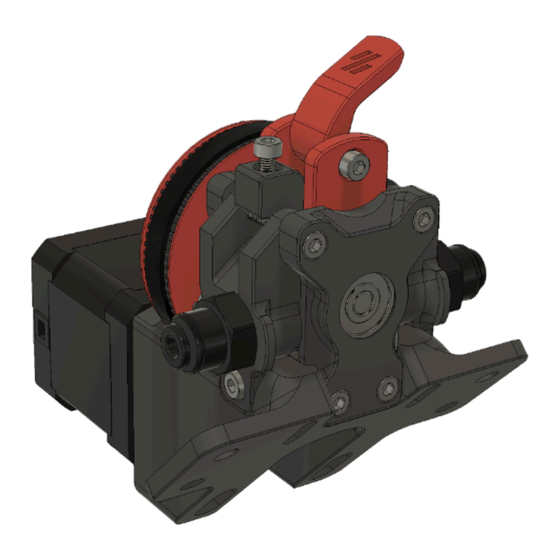

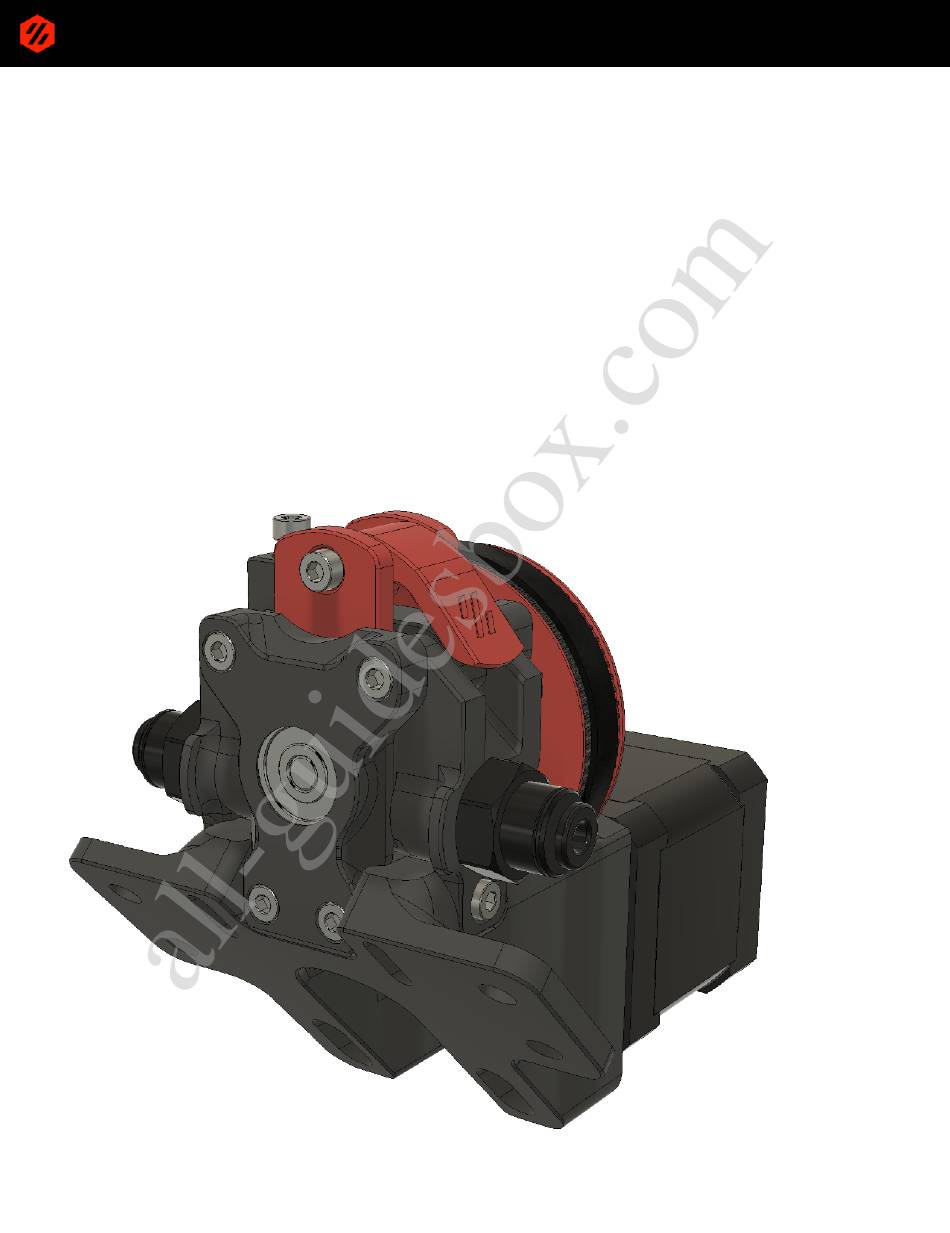

- Page 1 All manuals and user guides at all-guidesbox.com VORON Mobius2 ...
-
Page 2: Bill Of Materials
All manuals and user guides at all-guidesbox.com BILL OF MATERIALS Part 625-2RS Ball bearing BondTech Extruder Gears set 20T GT2 (5mm bore) Drive Pulley 40T GT2 (5mm bore) Drive Pulley 188mm 2GT 6mm belt loop 5mm x 50mm shaft M3 x 6mm hex screws M3 x 8mm hex screw M3 x 10mm hex screw M3 x 12mm hex screw... - Page 3 All manuals and user guides at all-guidesbox.com ASSEMBLY 40T GT2 Pulley [ Remove flanges ] M3 x 10mm M3 hex nut...
- Page 4 All manuals and user guides at all-guidesbox.com ASSEMBLY M3 x 12mm M3 hex nut M3 hex locknut M3 hex nut...
- Page 5 All manuals and user guides at all-guidesbox.com ASSEMBLY 625-2RS Ball Bearing [ Both sides ] BondTech Drive gear 5mm x 50mm shaft...
- Page 6 All manuals and user guides at all-guidesbox.com ASSEMBLY M3 hex locknut BondTech Idler gear M3 x 20mm Ensure filament can move freely...
- Page 7 All manuals and user guides at all-guidesbox.com ASSEMBLY M3 x 30mm 188mm GT2 Belt loop...
- Page 8 All manuals and user guides at all-guidesbox.com ASSEMBLY M3 x 8mm M3 x 6mm Astrosyn Dampener M3 x 30mm...
- Page 9 All manuals and user guides at all-guidesbox.com ASSEMBLY GT2 20t pulley Bowden connector [1/8 BSP] M3 x 12mm...
-
Page 10: Operation
All manuals and user guides at all-guidesbox.com OPERATION Lock / Unlock for filament loading Adjust filament tension... - Page 11 All manuals and user guides at all-guidesbox.com OPERATION Open sides to clear jams and clean gear teeth 560 steps / mm is a good starting point...
- Page 12 All manuals and user guides at all-guidesbox.com Enjoy!
