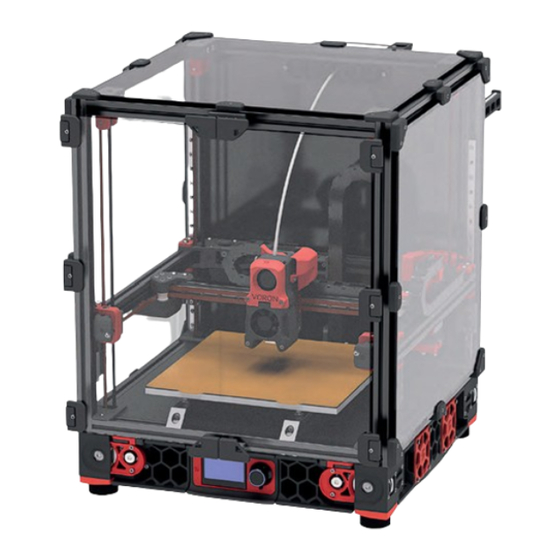

- Page 1 VORON 2.4 KIT 5 ∙GANTRY FRAME ∙RAIL...
- Page 2 Please do not become the first VORON fatality. There is no special Reddit flair for that. Please, read the entire manual before you start assembly. As you begin wrenching, please check our Discord channels for any tips and questions that may halt your progress.
- Page 3 GANTRY WWW.VORONDESIGN.COM...
- Page 4 OVERVIEW WWW.VORONDESIGN.COM B Drive A Drive XY Bridge Left XY Joint Right XY Joint B Idler X Linear Rail A Idler...
- Page 5 PREPARATION WWW.VORONDESIGN.COM GENERIC CABLE CHAINS IGUS CABLE CHAINS The 3 hole pattern is usually IGUS chains have 2 mounting found on generic cable chains. holes. WHICH TO CHOOSE? Pick the style that matches the mounting pattern of your cable chains.
- Page 6 GANTRY WWW.VORONDESIGN.COM M5 T-Nut T-NUT ORIENTATION Insert the t-nuts as shown in the highlight. E Extrusion...
- Page 7 GANTRY WWW.VORONDESIGN.COM M5x10 BHCS...
- Page 8 GANTRY WWW.VORONDESIGN.COM M5x10 BHCS...
- Page 9 Y AXIS WWW.VORONDESIGN.COM CENTRED RAIL INSTALLATION GUIDE Use the MGN9 guides to position the rail in the centre of the extrusion prior to fastening the screws. MGN9 Rail T-NUT ORIENTATION Insert the t-nuts as shown in the highlight. M3x8 SHCS M3 T-Nut MIND THE CARRIAGE C Extrusion...
- Page 10 Y AXIS WWW.VORONDESIGN.COM M5 T-Nut T-NUT ORIENTATION Insert the t-nuts as shown in the highlight.
- Page 11 Y AXIS WWW.VORONDESIGN.COM M5 T-Nut T-NUT ORIENTATION Insert the t-nuts as shown in the highlight. M3 T-Nut M3 T-Nut M5 T-Nut...
- Page 12 Y AXIS WWW.VORONDESIGN.COM 5MM HOLES ON TOP Make sure to use the idler that has 2 holes for M5 bolts in the top when oriented as shown. M5x16 BHCS...
- Page 13 Y AXIS WWW.VORONDESIGN.COM NOTCH ORIENTATION The indentation along the part is designed to clamp on the belt. The notch points away from the idler assembly. FLUSH INSTALL Make sure the plastic part sits flush with the end of the extrusion. If you can’t; check if you installed the correct idler.
- Page 14 Y AXIS WWW.VORONDESIGN.COM FLUSH INSTALL Make sure the plastic part sits flush with the end of the extrusion. M5x16 BHCS...
- Page 15 GANTRY WWW.VORONDESIGN.COM...
- Page 16 GANTRY WWW.VORONDESIGN.COM M5x16 BHCS NOTCH ORIENTATION The indentation along the part is designed to clamp on the belt. The notch points away from the drive assembly. FLUSH INSTALL Make sure the plastic part sits flush with the end of the extrusion.
- Page 17 XJ JOINTS WWW.VORONDESIGN.COM M5 Nut...
- Page 18 RIGHT XY JOINT WWW.VORONDESIGN.COM CABLE PATH The printed parts for the right XY joint have a small channel to guide the end stop wires.. M5 Shim F695 Bearing M5x40 SHCS...
- Page 19 RIGHT XY JOINT WWW.VORONDESIGN.COM SYNCHRONOUS PULLEYS For synchronous pulleys with a low flange, add 2 SHIM M5 in order to align the belt properly. M5x40 SHCS M5x40 SHCS SHIM M5 DON’T OVER TIGHTEN GT2 20 Tooth Pulley The bolt is used to position the idler and is screwed directly into plastic.
- Page 20 LEFT XY JOINT WWW.VORONDESIGN.COM M5 Shim F695 Bearing M5x40 SHCS...
- Page 21 LEFT XY JOINT WWW.VORONDESIGN.COM M5x40 SHCS DON’T OVER TIGHTEN The bolt is used to position the idler and is screwed directly into plastic. The idler must spin freely. M5x40 SHCS SHIM M5 GT2 20 Tooth Pulley SYNCHRONOUS PULLEYS For synchronous pulleys with a low flange, add 2 SHIM M5 in order to align the belt properly.
- Page 22 X AXIS WWW.VORONDESIGN.COM M3 T-Nut T-NUT ORIENTATION CENTRED RAIL INSTALLATION GUIDE Insert the t-nuts as shown in the highlight. Use the MGN12 guides to position the rail in the centre of the extrusion prior to fastening the screws. M3x8 SHCS D Extrusion MIND THE CARRIAGE Temporarily secure the carriage with a piece of sticky...
- Page 23 X AXIS WWW.VORONDESIGN.COM M5 T-Nut T-NUT ORIENTATION Insert the t-nuts as shown in the highlight. M5 T-Nut...
- Page 24 X AXIS WWW.VORONDESIGN.COM...
- Page 25 X AXIS WWW.VORONDESIGN.COM M5x16 BHCS M5x10 BHCS LEAVE SLIGHTLY LOOSE Lightly tighten the bolts. M5 Shim M5x30 BHCS...
- Page 26 X AXIS WWW.VORONDESIGN.COM CHECK YOUR WORK Compare your assembled part to the graphic shown here. Pay attention to the pulley orientation and alignment with the bearing stack ups.
- Page 27 GANTRY WWW.VORONDESIGN.COM FLIP GANTRY Turn the gantry around for the next step. INSERT AT AN ANGLE Tilt the X axis to install it onto the gantry. 2X BOLT ONLY The remaining bolts will be installed in a later step. M3x16 SHCS...
