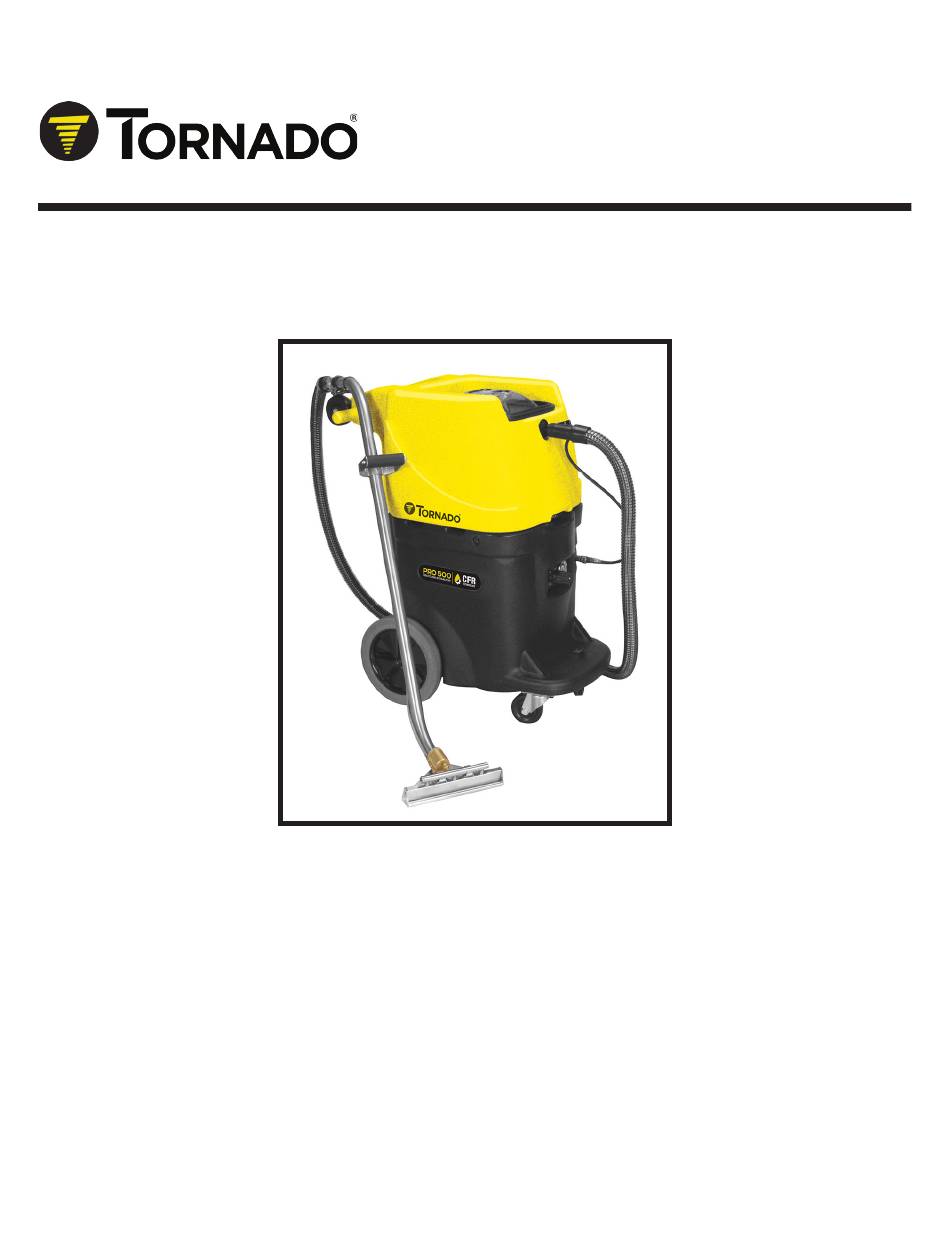

Operations & Maintenance Manual
For Commercial Use Only
MODEL NO: 98820 PRO500
MODEL NO: 98822 PRO 500 w/Wand and Combo Tool, and 33' hose
MODEL NO: 98824 PRO 500 w/Wans and Hose
MODEL NO: 98826 PRO 500 OZ
MODEL NO: 98828 PRO 500 OZ w/Wand and 33' Hose
MODEL NO: 98821 PRO 500 230V
MODEL NO: 98823 PRO 500 230V w/Perfect Heat
MODEL NO: 98830 PRO 500 w/Heat and Perfect Heat
MODEL NO: 98832 PRO 500 w/Heat and Perfect Heat w/Hand Tool, and 33' Hose
MODEL NO: 98818 PRO750
MODEL NO: 98836 PRO 750 w/Wand and Combo Tool, and 33' Hose
Form No. L8820 CA 07/20 ©Tornado Industries, LLC. All rights reserved

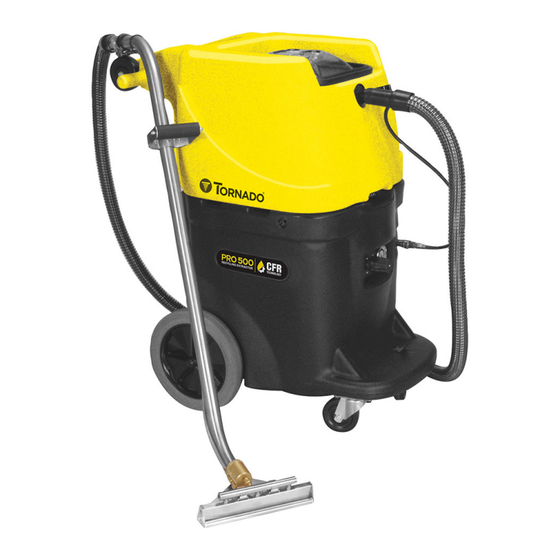

PRO SERIES RECYCLING EXTRACTOR
Save These Instructions
TORNADO INDUSTRIES, LLC
3101 WICHITA COURT
FORT WORTH, TX 76140
PHONE 800-VACUUMS
FAX 817-551-0719
WWW.TORNADOVAC.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Tornado PRO 500

Summary of Contents for Tornado PRO 500

  • Page 1 MODEL NO: 98823 PRO 500 230V w/Perfect Heat MODEL NO: 98830 PRO 500 w/Heat and Perfect Heat MODEL NO: 98832 PRO 500 w/Heat and Perfect Heat w/Hand Tool, and 33’ Hose MODEL NO: 98818 PRO750 MODEL NO: 98836 PRO 750 w/Wand and Combo Tool, and 33’ Hose Form No.
  • Page 2 NOTES Serial Number The serial number of the machine is located on the nameplate, located next to pressure regulator. This information is needed when ordering parts or scheduling repairs. Fill in the information below for future reference: Serial Number _____________________________________________________________ Part Number ______________________________________________________________ Purchase Date _______________________________________________________ Within 30 days, to activate the warranty, go to;...

  • Page 3: Grounding Instructions

    GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 4: Important Safety Instructions

    Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.
  • Page 5 PRO SERIES Technical Specifications Model 98820 98822 98824 98826 Tank Size 13 Gallon 13 Gallon 13 Gallon 13 Gallon Heater Perfect Heat Ozone Tools* Yes** Power 115V/20A 115V/20A 115V/20A 1115V/20A Power Cords (1) 25’ (1) 25’ (1) 25’ (1) 25’ Detachable Detachable Detachable...
  • Page 6 PRO SERIES Technical Specifications Model 98828 98821 98823 98830 Tank Size 13 Gallon 13 Gallon 13 Gallon 13 Gallon Heater Perfect Heat Ozone Tools* Power 115V/20A 230V/20A 230V/20A 115V/20A Power Cords (1) 25’ (1) 25’ (1) 25’ (2) 25’ Detachable Detachable Detachable Detachable...
  • Page 7 PRO SERIES Technical Specifications Model 98832 98818 98836 Tank Size 13 Gallon 13 Gallon 13 Gallon Heater Perfect Heat Ozone Tools* Power 115V/20A 115V/20A 115V/20A Power Cords (1) 25’ (1) 25’ (1) 25’ Detachable Detachable Detachable Vacuum Motor Dual 2 Stage Single 3 Stage Single 3 Stage Waterlift...

  • Page 8: Set Up Instruction

    SET UP INSTRUCTION Filter Installation There are three filters in the Pro 500/750: inlet filter, main filter and pump protection filter. It is imperative to the efficient operation of the Pro 500/750 that the filters are installed properly. Pump Protection Filter – Position on brass fitting on the filter mound. Slide it down.
  • Page 9 Valve Perfect Heat System WARNING! The Perfect Heat Plus System can produce very hot water that could damage some delicate fabrics and fibers. Please ensure the surface being cleaned will not be damaged by applying hot water up to 200 F (93 This machine is equiped with the Perfect Heat Plus System for heating the cleaning solution.

  • Page 10: Maintenance

    MAINTENANCE Daily Maintenance To maintain optimum performance, the equipment, tools and filters should be cleaned after each use. Replace any filters that cannot be cleaned or are damaged. Nozzles that cannot be cleared should be discarded. Wipe down the equipment with a damp cloth to keep clean and preserve the appearance.

  • Page 11: Periodic Maintenance

    6. Check pump performance occasionally against built-in pressure gauge. Pump running pressure on the PRO 500 should be 500 + 10 p.s.i, PRO 750 should be 750+ 15 p.s.i. If the pressure is outside of this range, call your dealer or authorized service center. After 400 hours, the pump valves should be replaced.
  • Page 12 Check machine for excess foaming. Add Defoam to tool hose and Water dripping from bottom of machine tank. Open machine top cover and let vacuum run for 10 minutes exhaust. to dry out vacuum motor, then close lid and resume cleaning. Vacuum hose or tool leaks.
  • Page 13 PRO Series Chemicals Name Part Number A Excell (4 x 1 gallon) Light acid based cleaner 78006 Excell (4 x 1 gallon) Alkaline based cleaner 78004 Excell (5 gallon) Alkaline based cleaner 78005 Perform-All (4 x 1 gallon) Neutral pH cleaner 78007 Perform-All (5 gallon) Neutral pH cleaner...
  • Page 14 Form No. L8820 CA 07/20...
