Summary of Contents for Tornado TE310-G15-U

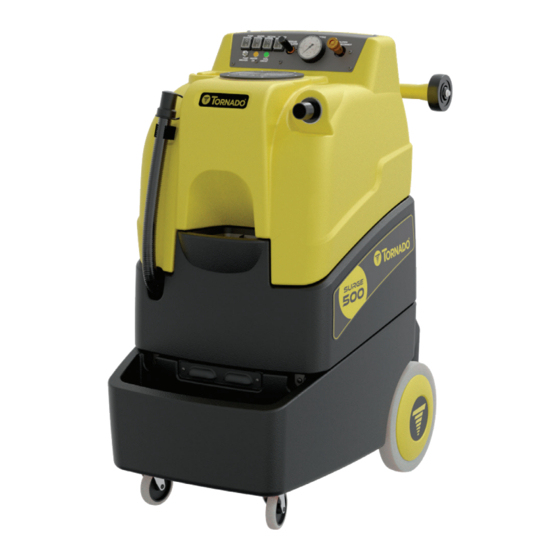

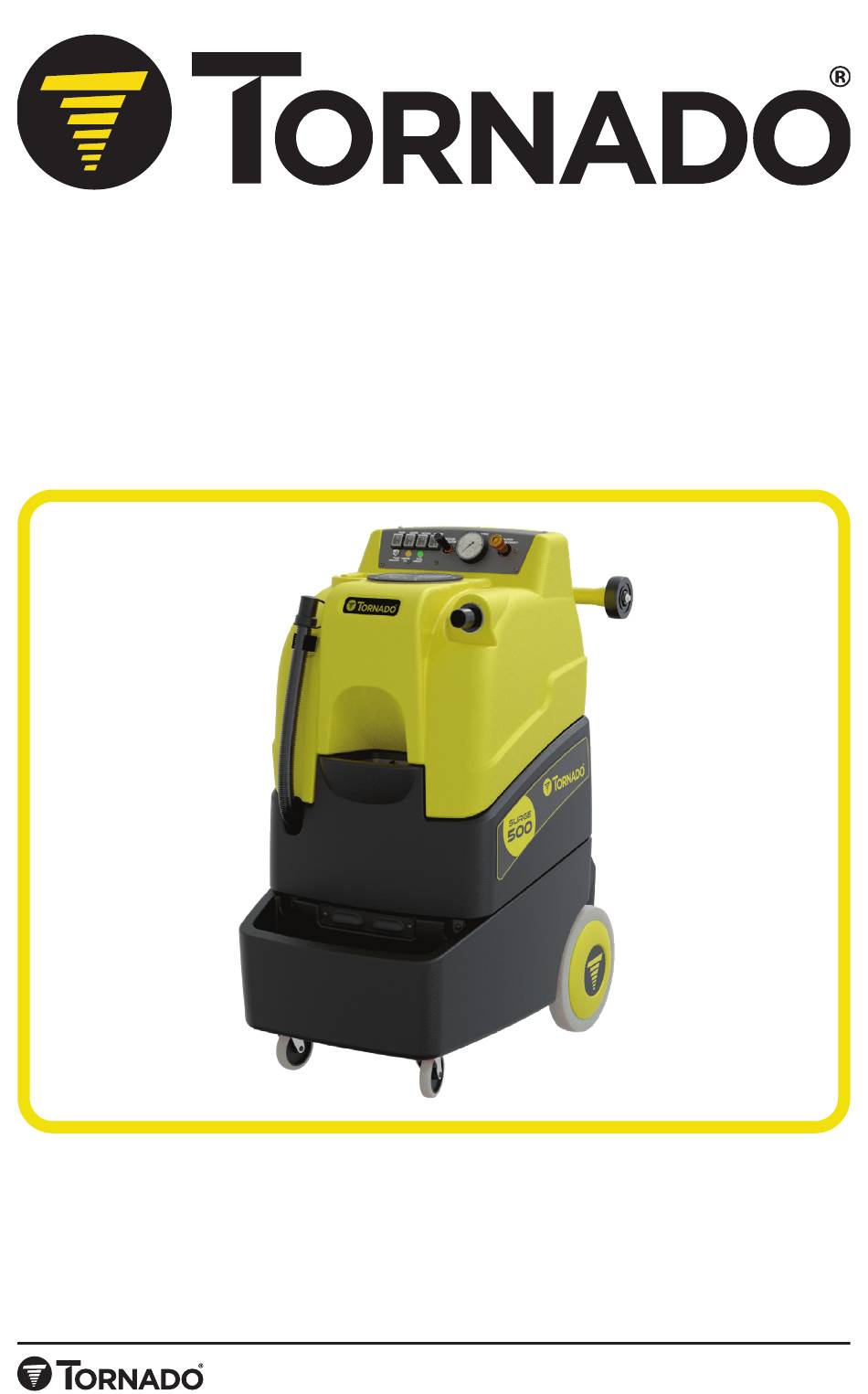

- Page 1 SURGE 500 UPRIGHT EXTRACTOR OPERATIONS AND MAINTENANCE MANUAL FOR COMMERCIAL USE ONLY Model No. TE310-G15-U...
-
Page 2: Table Of Contents
CONTENTS Getting Started Introduction Warranty Grounding Instructions Important Safety Instructions Cleaning Agents Technical Specifications Operating Instructions Controls Operation Warnings Transport and Storage Maintenance Troubleshooting... -
Page 3: Introduction
INTRODUCTION Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt/invoice given at the time of purchase. If you experience any problems with your unit during the warranty period, the original receipt/invoice will act as proof of purchase. -
Page 4: Warranty
Warranty Within 30 days of purchase, to activate product warranty, go to: https://tornadovac.com/services/warranty-registration-form.aspx For warranty information go to www.tornadovac.com. Warning Labels Prior to operating the unit, read and understand completely this owner’s manual paying special attention to warning labels. These labels indicate a potentially hazardous situation that could result in death or serious injury if not avoided. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for the current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment grounding conductor and grounding plug. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert, and knowing how your unit works. To reduce the risk of personal injury or damage to your unit use only as indicated in this manual. FOR COMMERCIAL USE ONLY To reduce the risk of fire, electrical shock, or injury, the instructions below must be read and understood... - Page 7 If in any service agent or a similar qualified person in order to avoid a hazard. doubt about the condition of the machine, contact Tornado or the dealer/agent who • Only replace the power cord with original supplied the machine. OEM equipment.
-
Page 8: Cleaning Agents
CLEANING AGENTS • When using cleaning and care agents, the manufacturer’s danger warnings must be followed, and proper PPE must be worn per manufacturer’s instruction. • Only use low-foaming, non-combustible cleaning agents which DO NOT contain generally health-hazardous substances. • Please ensure that after each use, any chemical residue is rinsed out with clean water. The manufacturer cannot accept responsibility for damage caused when the appliance is not used in accordance with the instructions provided or for uses other than those for which it was intended. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Specification Value Voltage Hertz Front Wheels (Casters) 4 in / 102 mm Rear Wheels 12 in / 305 mm Length 36.5 in / 927 mm Width 23.5 in / 597 mm Height 45.5 in / 1156 Vacuum Motor (Airwatt) 625 Watts Pump 50 - 500 p.s.i. -
Page 10: Controls
CONTROLS PRESSURE SETTINGS HEATER PUMP VACUUM VACUUM PRESSURE REGULATOR SOLUTION QUICK DISCONNECT PUMP HEATER DUAL BREAKER CIRCUIT PUMP VACUUM SOLUTION QUICK DISCONNECT Fig. 1 Fig. 2 Fig. 3... -
Page 11: Operation
OPERATION General Instructions for the TE310-G15-U Extractor Follow these easy step by step instructions to ensure proper operating performance. If you are not pre-spraying the chemical on the carpet, fill up the fresh water solution tank with tap water that is 120... -
Page 12: Warnings
WARNINGS • DO NOT break off or pull the grounding prong on the plug. • DO NOT attempt repair on a machine that is under warranty unless instructions to perform it by an authorized shop are obtained from the factory. •... -
Page 13: Transport And Storage
TRANSPORT AND STORAGE Transport: • Take extreme care when moving the machine up or down steps or stairs. • Incorrect lifting techniques may result in personal injury. • As stated earlier in this manual, this machine is heavy. Do not attempt to lift the machine without assistance. -
Page 14: Maintenance
When the unit is not in use, leave the tank lids open. At the end of each day, run the vacuum for 3 minutes with lid open. Fig. 4 Besides those outlined above, all additional servicing and repairs should only be performed by an Authorized Tornado Servicing Agent. -
Page 15: Troubleshooting
TROUBLESHOOTING The following checks may be performed by the operator. Any other service or attempt to service by the operator will void the warranty. PUMP SYSTEM PROBLEM POSSIBLE CAUSE SOLUTION Pump motor runs but 1. Clogged or faulty 1. Check filter and remove lint no spray through jets. - Page 16 TROUBLESHOOTING ELECTRICAL SYSTEM PROBLEM POSSIBLE CAUSE SOLUTION No electrical power. 1. Defective power cord. 1. Replace 2. Circuit breaker off or 2. Turn circuit breaker on or fuse blown. replace fuse. 3. Unplug any equipment using the same circuit. Switch is turned on. 1.
- Page 17 NOTES...
- Page 18 Tornado Industries, LLC 3101 Wichita Court Ft. Worth, TX 76140-1755 Phone: 800-VACUUMS Fax: 1-817-551-0719 WWW.TORNADOVAC.COM Record of Purchase Serial Number: Purchase Date: Dealer: Phone Number: T-OMTE310-G15-U 04/2022...
