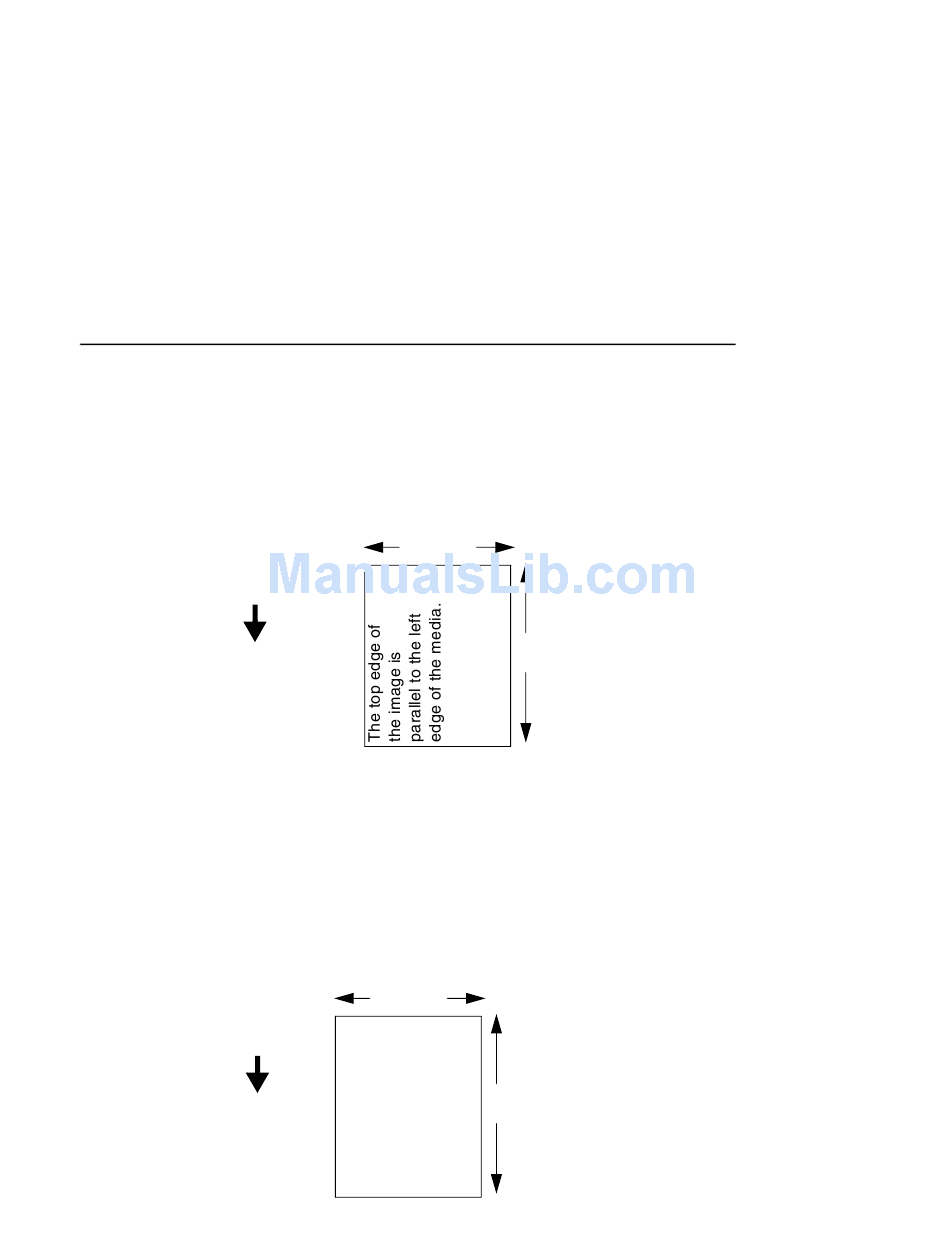

Landscape. Landscape refers to horizontal orientation, where
the width of a page is greater than its height. The top edge of
the image is parallel to the left edge of the media. The following
example is viewed from the front of the printer.
NOTE: Landscape orientation applies to PGL and VGL emulations.
This is regarded as Inverse Landscape using PPI1.
4 inches
FEED
Leading Edge
•
Inv. Portrait. Inverse Portrait refers to vertical page orientation,
where the height of a page is greater than its width. The top
edge of the image is parallel to the trailing edge of the media.
The following example is viewed from the front of the printer.
NOTE: Inverse Portrait orientation applies to PGL and VGL
emulations. This is regarded as Portrait using PPI1.
Trailing Edge
4 inches
The top edge of
FEED
the image is
parallel to the
trailing edge of the
media.
Leading Edge
QUICK SETUP Menu Items
6 inches
6 inches
