QUICK SETUP Menu
the image is not affected by this parameter. The allowable range is
–1.00 inches to the current Label Length value setting, up to a
maximum of 12.80 inches, in 0.01 inch increments.
The default value is 0.00 inches.
Hor Image Shift
This menu item specifies the amount to shift an image left (–) or
right (+) for precise positioning on the label. The actual width of the
image is not affected by this parameter. The allowable range is
–1.00 to +1.00 inches in 0.01 inch increments.
The default value is 0.00 inches.
Orientation
Specifies the image orientation to be used when printing the label.
•
NOTE: Portrait orientation applies to PGL
FEED
42
Portrait. The default. Portrait refers to vertical page orientation,
where the height of a page is greater than its width. The top
edge of the image is parallel to the leading edge of the media.

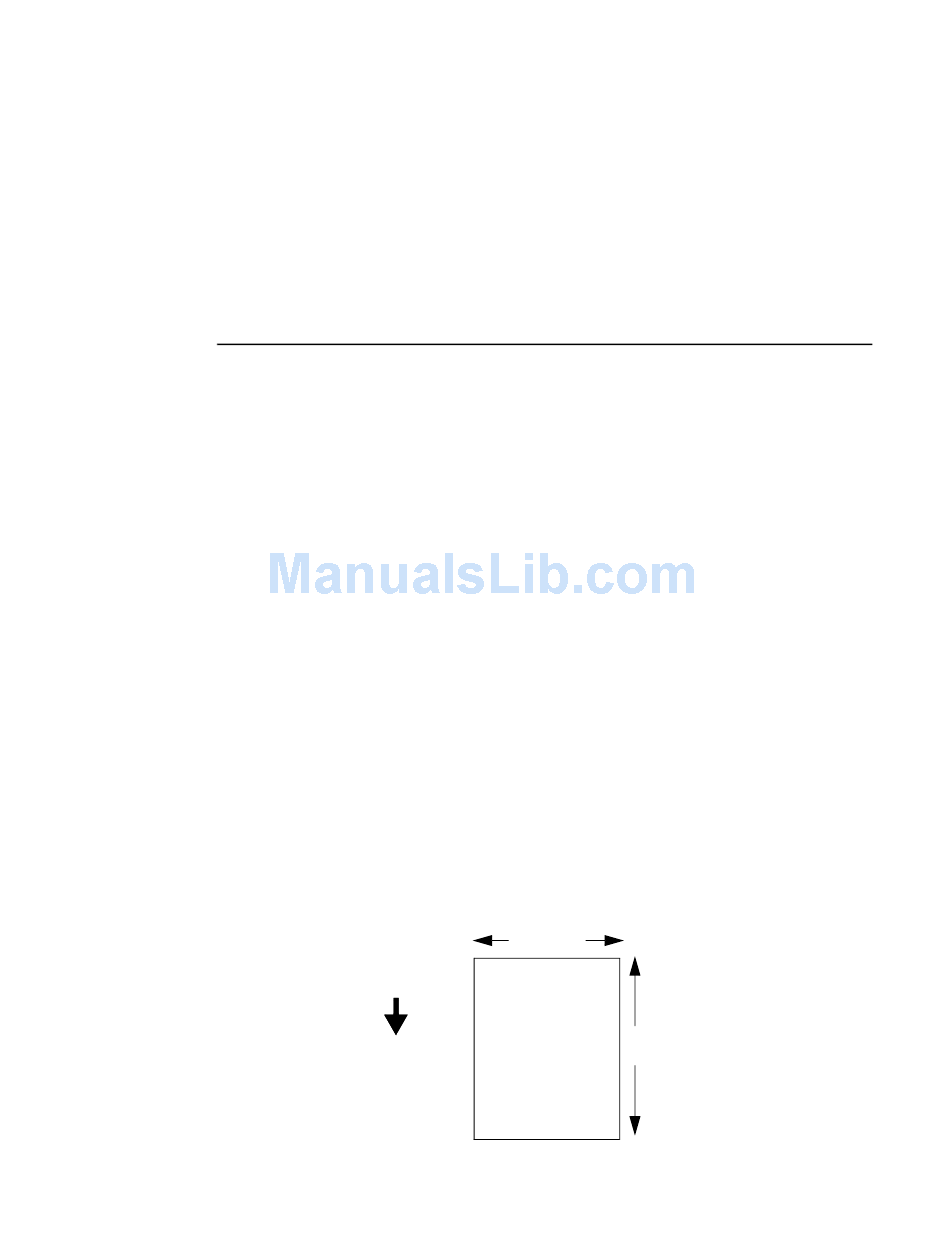

The following example is viewed from the front of the printer.
This is regarded as Inverse Portrait using PPI1.
4 inches
media.
of edge leading
the to parallel
is image
of edge top
Leading Edge
®
and VGL emulations.
6 inches
the
the
The
