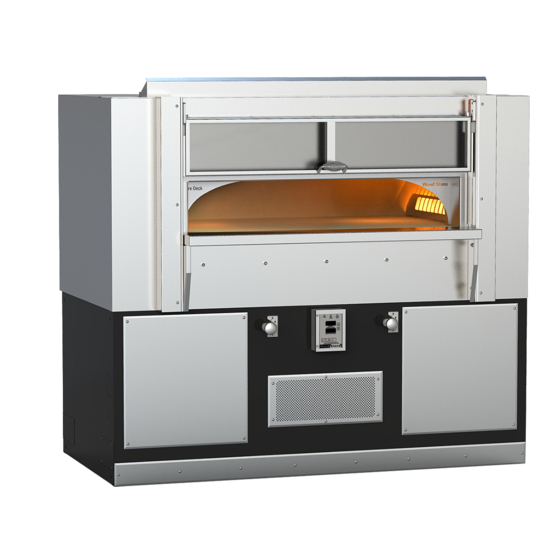

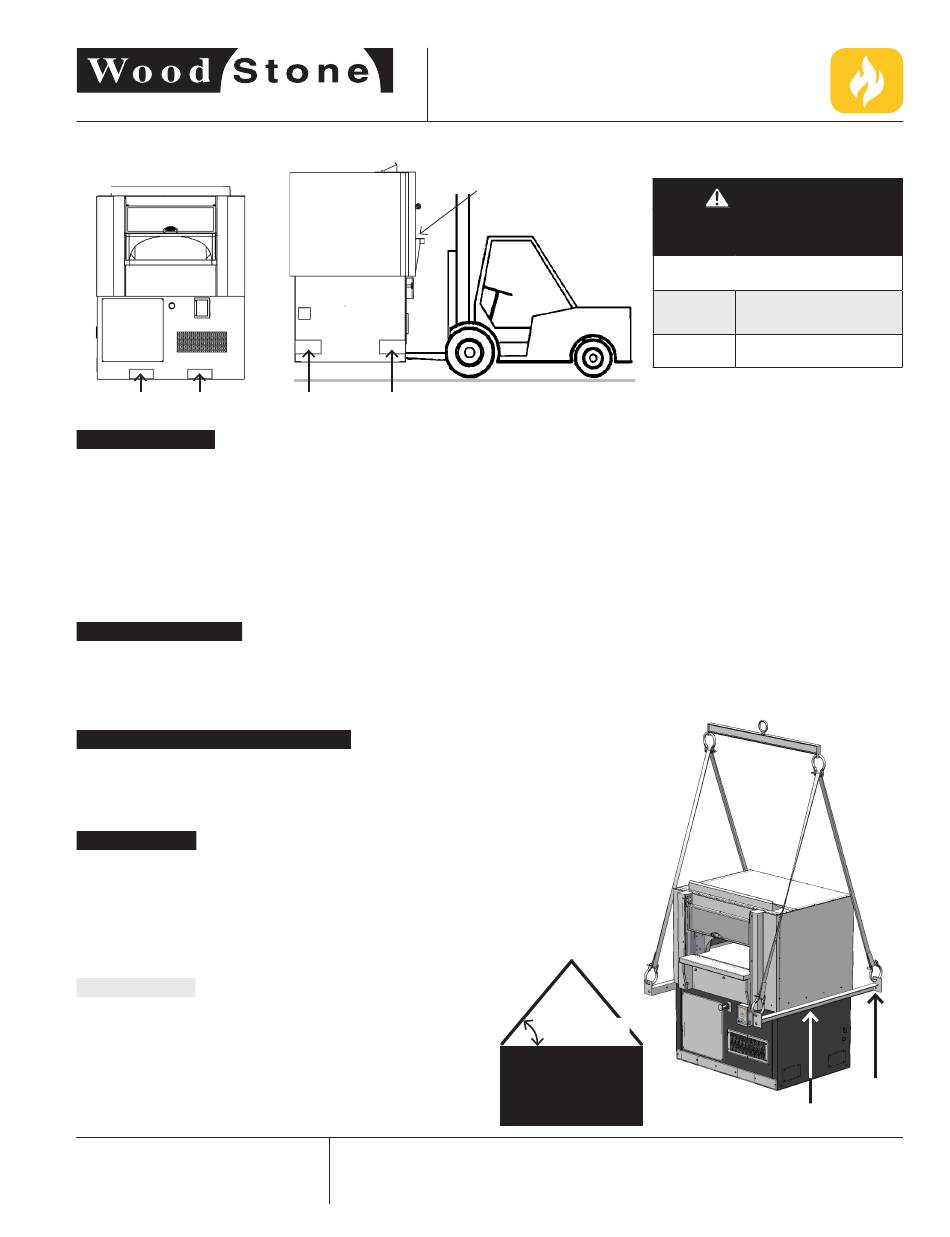

Wood Stone Fire Deck 6045 Installation And Operation Manual

CAUTION HOT PRUDENCE CHAUD
Front Forklift / Pallet Jack Pockets
USING A FORKLIFT.
The Wood Stone Fire Deck 6045 weighs approximately 3,200 lbs� and is top-heavy�
Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven
any other way with a forklift may result in damage� Use extreme caution and make sure that the forks extend all the way through the
pockets provided� Fork length must be at least 5' long� If it is necessary to approach the oven from the front, be sure the mast does
not contact the mantle (shelf)�
There are fork pockets at the front and sides of the oven�
Once the oven is on a smooth, flat floor it can be rolled on its optional heavy-duty, temporary shipping Casters (details next page)�
USING A PALLET JACK.
The oven may also be moved with a Pallet Jack using the front or rear fork pockets only� Once the oven is on a smooth, flat floor it
can be rolled to its final position� DO NOT ATTEMPT TO MANUALLY ROLL THE OVEN UP OR DOWN A RAMP OR INCLINE. Do not
position yourself between the moving oven and an immovable object or surface such as a wall or door frame�
DO NOT TURN THE OVEN ON ITS
Moving a Wood Stone oven can present interesting challenges to even the most
experienced riggers� Make sure to secure the proper equipment and make safety
your first priority� Please don't hesitate to call the factory for technical support�
USING A CRANE.
If you are planning to use a crane to unload the oven,
specify a flatbed truck delivery.
Use the pickeyes provided on the sides of the oven to lift the oven
with a crane� The spreader bar should be of a sufficient length to keep
the sling from contacting the oven, and oriented as shown in fig� 1�
DELIVERY NOTE.
The customer will receive an Oven Shipping Notification when
the oven leaves the Wood Stone factory� This will include a
PRO# and a trucking company contact number� Wood Stone
recommends that you confirm the delivery date/time with the
trucking company before committing to heavy equipment and/
or labor� Our goal is a smooth and safe delivery�
