Crestron DM-NVX-350 Do Manual

DO

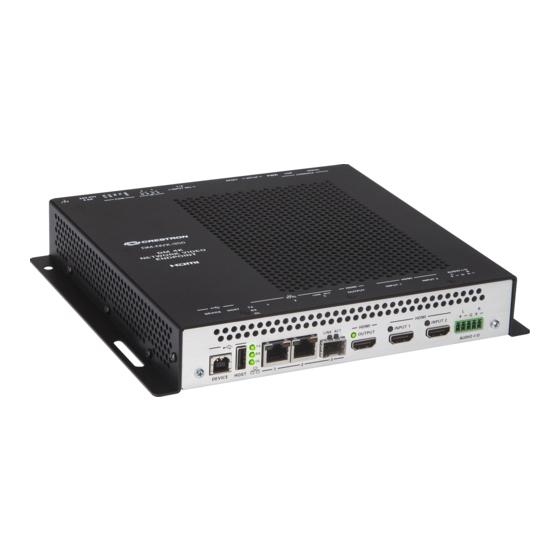

DM-NVX-350/DM-NVX-351
DM NVX™ 4K60 4:4:4 HDR Network AV Encoders/Decoders

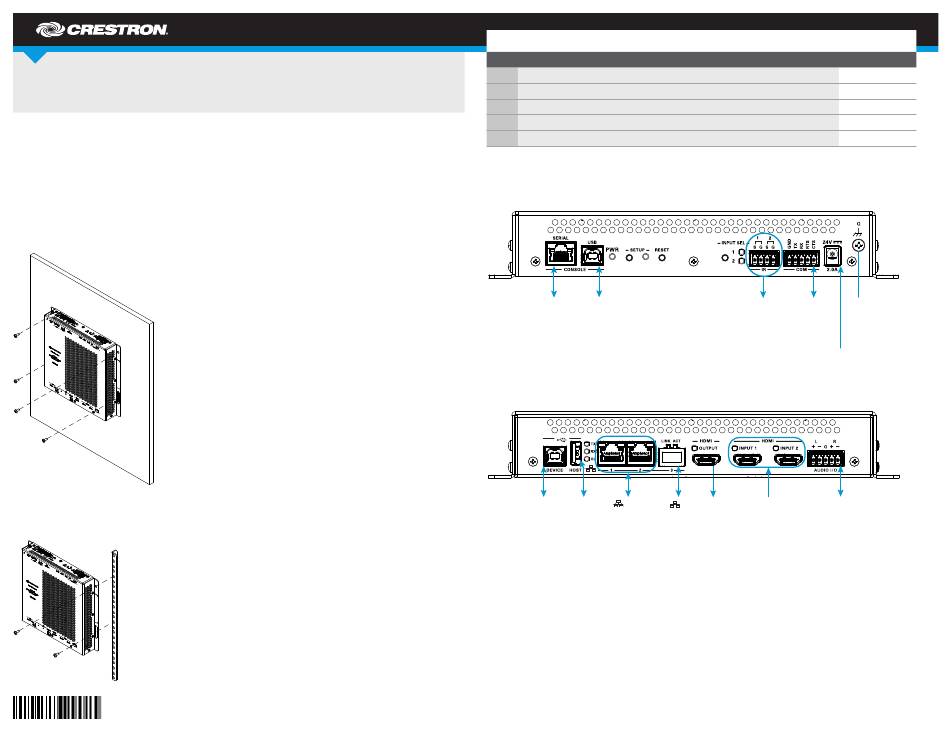

DO Install the Device
The Crestron DM-NVX-350 and DM-NVX-351 can be mounted onto a flat surface or rack rail.
®
Mount onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall or the
underside of a table.
NOTE: Fan ventilation holes are provided on five sides of the device. If the installation necessitates
that another object be positioned flush against the ventilation holes on one side of the device, leave a
minimum clearance of 2 inches of space on all other sides containing ventilation holes.
Mount onto a Rack Rail
Using two mounting screws (not included), mount the left or right mounting flange of the device onto
the front or rear rail of a rack.
GUIDE
DO Check the Box
QTY
1 Cable, USB 2.0, A - B, 6' (1.83 m)
1 Connector, 4-Pin
2 Connector, 5-Pin
1 Power Cord, 5' 10" (1.78 m)
1 Power Pack, 24 Vdc, 2.5 A, 100-240 Vac
DO Connect the Device
Connect the device as required for the application.
Front Panel Connections
SERIAL: USB:
To serial port To USB
on PC port
(cable included) on PC
Rear Panel Connections
DEVICE: HOST: 1–2:
10BASE-T/
To To
USB 100BASE-TX/
USB host
Ethernet
device 1000BASE-T to
switch or
Ethernet switch,
local network
DM-NVX
device, or
other DM NVX™
device
NOTE: The DM-NVX-350 and DM-NVX-351 can be configured to use either the DEVICE port or the
HOST port. Both ports cannot be used simultaneously.
ITEM
COM:
IR 1–2:
To
To IR
RS-232
controllable
device
devices
24V:
24 Vdc from
included power pack
3: HDMI HDMI INPUTS AUDIO I/O:
®
To SFP
OUTPUT: 1–2: Balanced/
port of
To From unbalanced
HDMI audio/video stereo line
display sources level audio
other
input or output
device
PART NUM.
2014966
2003576
2003577
2042043
2045873
Ground
