- Page 1 DigitalMedia™ NVX Series System Design Guide Crestron Electronics, Inc.
- Page 2 Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
-
Page 3: Table Of Contents
NVX System Installation NVX Endpoint Installation ..................... 16 NVX Network Installation....................19 Crestron Service Provider Handoff ................20 Case Studies Case Study #1: Community College 4K AV Distribution via Network ......21 Case Study #2: 4K Residential AV Distribution Network ..........23 Case Study #3: 4K AV Distribution over Fiber .............. -
Page 5: Introduction
(due to the close integration with the scaler during the decoding process). DigitalMedia NVX Series System • 1 Design Guide – DOC. 7977C... -
Page 6: Nvx Design

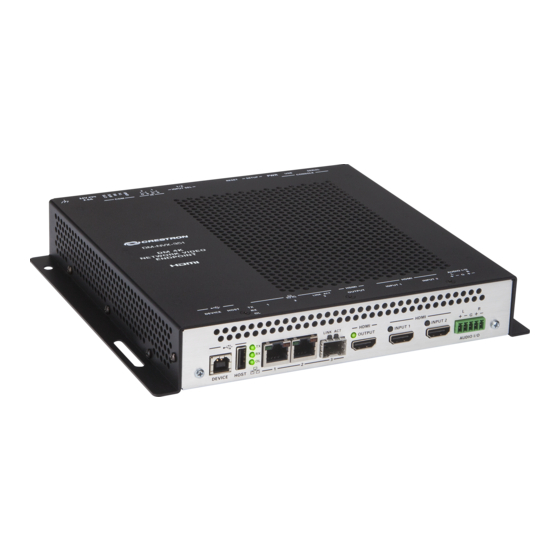

The DM-NVX-351 and DM-NVX-351C are also capable of downmixing a multichannel audio source carried over HDMI. 2 • DigitalMedia NVX Series System Design Guide – DOC. 7977C... - Page 7 Two RJ45 Gigabit Ethernet ports capable of 330 ft (100 m) distances over shielded Cat 5e/6/6a cable • One SFP Gigabit Ethernet port for optional optical connection using Crestron SFP-1G transceiver modules • One USB 2.0 host port for connecting a USB host, such as a PC •...
-
Page 8: Sfp-1G Modules
802.1x using TLS or MS-CHAP v2 authentication, Active Directory service support ® for endpoint management, audio and video stream encryption, secure Crestron IP device control, and secure device console access. • CEC Control: Consumer Electronic Control messages can be passed between endpoints, allowing for easy control of source and display devices that support CEC. -
Page 9: Xio Director
SNMP messaging support for easy administration of NVX networks. For additional information on XIO Director, please contact a Crestron sales representative. Endpoint Bandwidth Design and Management A single DM NVX network link can carry the following data streams: •... -
Page 10: Endpoint Design Considerations
DM-NVX-350 or DM-NVX-351 stand-alone endpoints. • If simultaneous stereo downmix alongside multichannel audio output is required, use DM-NVX-351 or DM-NVX-351C instead of the DM-NVX-350 and DM-NVX- 350C. 6 • DigitalMedia NVX Series System Design Guide – DOC. 7977C... - Page 11 If additional HDMI inputs are required for local switching at the endpoint within typical HDMI cable distances of 15 ft (5m), consider using other Crestron solutions in conjunction with the endpoint, such as the Crestron DM and DMPS families of products.
-
Page 12: Nvx System Design
NVX network segments is to carry NVX multicast streams as well as NVX control and ancillary traffic. A secondary design decision must also be made as to where other Crestron network devices will be located relative to network infrastructure, and particularly whether such devices will coexist on the same segment as the NVX or another segment that has traversal capabilities (but not multicast enabled) to the NVX segment. - Page 13 NVX devices in a nonblocking fashion. If more devices are connected, the uplink becomes a bottleneck, introducing the potential for difficult-to-diagnose blocking problems. DigitalMedia NVX Series System • 9 Design Guide – DOC. 7977C...
-
Page 14: Network Topologies
For small NVX systems that employ only one network switch, use a nonblocking switch so that there is no opportunity for a bottleneck. Star topologies can accommodate very large NVX installations by using large modular switch frames. Star Network Using a Nonblocking Switch 10 • DigitalMedia NVX Series System Design Guide – DOC. 7977C... - Page 15 For applications such as information, signage where more than one display will be readily viewable concurrently and not dependent on viewing of another display in the daisy chain, up to sixty-four endpoints can be daisy chained together. DigitalMedia NVX Series System • 11 Design Guide – DOC. 7977C...
- Page 16 For projects using advanced topologies for deployments, a networking professional with vendor-specific knowledge of the network hardware being deployed must be involved as early as possible in the network design process. 12 • DigitalMedia NVX Series System Design Guide – DOC. 7977C...
-
Page 17: Network Multicast Functionality
802.1p and 802.1q example. It is critical to ensure that all traffic types are affirmatively accounted for in QoS setup to ensure successful QoS operation. DigitalMedia NVX Series System • 13 Design Guide – DOC. 7977C... -
Page 18: Network Security
The designer should therefore focus on 802.1x and Active Directory services within the design. For additional information on deploying security with Crestron products, refer to the DM-NVX Series Supplemental Guide (Doc. 7839), the IP Considerations Guidelines for the IT Professional Design Guide (Doc. - Page 19 Use and plan for XIO Director for endpoint management. XIO Director requires an additional network appliance whose inclusion in a design will require additional consideration to enable management of the entire NVX network from the XIO Director server. DigitalMedia NVX Series System • 15 Design Guide – DOC. 7977C...
-
Page 20: Nvx System Installation
• Disable IGMP proxy on Crestron control processors with routers. Crestron control processors with routers, such as the CP3N, Pro3, AV3, and the DMPS3 line, should have IGMP proxy functionality disabled when connected to the NVX network to ensure NVX multicast traffic does not interfere with the control processor. - Page 21 • If serial and/or IR control is required For both types of endpoints, an external control surface such as a Crestron switch or touch panel may be linked through one of the spare LAN ports. The audio port may be repurposed to be a balanced line input for external analog audio input or for line output to an amplification and speaker system at the endpoint.
- Page 22 Because endpoints can be difficult to find, which can lead to increased costs in programming and maintenance, use descriptive names for endpoints either through the NVX web configuration tool or by replacing the default name in the Crestron Toolbox™ console. Do not rely on the default name or the Crestron IP ID.
-
Page 23: Nvx Network Installation
• Use plenum-rated cables in plenum spaces. Cables such as Crestron DigitalMedia Plenum-rated cable are suitable, as is using fire-rated conduit for any fiber or copper cabling used in plenum spaces. -
Page 24: Crestron Service Provider Handoff
Crestron Service Provider Handoff Once the NVX network and endpoints installed and interconnected, Crestron Service Providers (CSPs) will often be needed. Typical activities of a CSP in an NVX installation can include the following: • Writing appropriate control programs for controllers on the network •... -
Page 25: Case Studies
Any source can be routed to any destination independently, so use a star network topology. • The system can be controlled via Crestron Control App for mobile and tablet devices. • Install a Crestron CP3N control processor at the IDF closet to provide centralized control for the entire system. - Page 26 Case Study #1: Solution Diagram 22 • DigitalMedia NVX Series System Design Guide – DOC. 7977C...
-
Page 27: Case Study #2: 4K Residential Av Distribution Network
• Kitchen and bedrooms will use the TSW-760 touch screen as a control surface. They can also be controlled via Crestron Control App for mobile and tablet devices. • Media room and family room will have TST-902 wireless touch screens for control (due to the cable routing constraint). - Page 28 Case Study #2 Solution Diagram 24 • DigitalMedia NVX Series System Design Guide – DOC. 7977C...
-
Page 29: Case Study #3: 4K Av Distribution Over Fiber
2x2 video walls in each of the 10 locations. Neither density for cards nor stereo downmix is required for this application. • Install ten Crestron PRO3 control processors, one in each location. • Include180 TSW-760 touch panels for each of the eighteen rooms across ten locations, plus another ten TSW-760 touch panels for each video wall room in the ten locations;... - Page 30 Case Study #3 Solution Diagram 26 • DigitalMedia NVX Series System Design Guide – DOC. 7977C...
-
Page 31: Glossary
IETF RFC 3376, and IETF RFC 4604 for v3 Internet Protocol (IP): A communications protocol to relay information across network boundaries between addresses; defined in IETF RFC 791 for IP version 4 DigitalMedia NVX Series System • 27 Design Guide – DOC. 7977C... - Page 32 IETF RFC 3550 Rapid Spanning Tree Protocol (RSTP): A network control protocol for discovering and accounting for network loops and redundancies; defined in IEEE 802. 1d-2004. 28 • DigitalMedia NVX Series System Design Guide – DOC. 7977C...
- Page 33 Virtual Local Area Network (VLAN): A nonphysically sequestered broadcast domain or partition isolated at the data link layer, effectively sequestering switch ports and network traffic across one or more switches from all other ports and traffic DigitalMedia NVX Series System • 29 Design Guide – DOC. 7977C...
- Page 34 Crestron Electronics, Inc. Design Guide – DOC. 7977C 15 Volvo Drive Rockleigh, NJ 07647 (2048398) Tel: 888.CRESTRON 10.17 Fax: 201.767.7576 Specifications are subject to www.crestron.com change without notice.
