DO

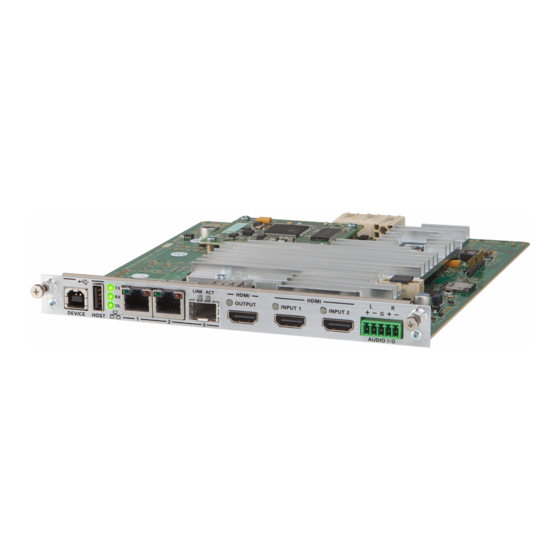

DM-NVX-350C/DM-NVX-351C
DigitalMedia™ 4K60 4:4:4 HDR Network AV
Encoder/Decoder Card
DO

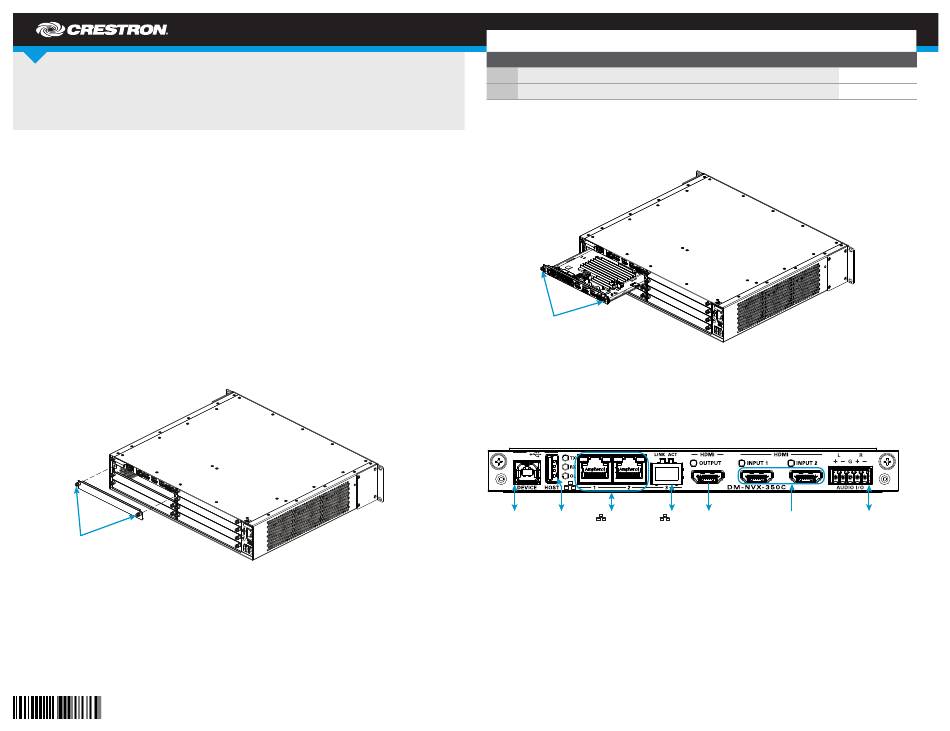

Install the Card
The Crestron
DM-NVX-350C and DM-NVX-351C occupy the DMF-CI-8 card chassis.
®
CAUTION:
The cards are susceptible to damage from electrostatic discharge (ESD).
Observe standard ESD precautions when handling the cards. Always wear an ESD wrist strap that is
connected to ground, and place the cards on grounded surfaces only.
CAUTION:
To prevent damage to a card that is connected to cables, disconnect all cables from the
card before installing the card into a card slot or removing the card from a card slot.
NOTE:
In a new installation of the DMF-CI-8, it is recommended that the cards be installed before
power is applied to the DMF-CI-8. In an existing installation of the DMF-CI-8, the cards can be added
or replaced without the need to shut down the DMF-CI-8 as the cards are hot swappable.
NOTE:
When installing cards into a partially populated DMF-CI-8, install the cards into slots 5–8
before using slots 1–4. Doing so ensures better cooling and lower power consumption.
In addition, always cover empty slots using the filler plates included with the DMF-CI-8.
To install a card into the DMF-CI-8, do the following:
1.
Using a #2 Phillips screwdriver (not included) or your fingers, remove the filler plate of an
unused slot by loosening the two captive panel screws.
Captive
panel screws
GUIDE
DO
Check the Box
QTY
1
Cable, USB 2.0, A - B, 6' (1.83 m)
1
Connector, 5-Pin
2.
Carefully insert the card into the card guides of the selected slot, and then push the card
inward until it is fully seated and engages the chassis backplane.
Captive
panel screws
3.
Finger-tighten the two captive panel screws to secure the card—do not overtighten
the screws.
DO
Connect the Card
Connect the card as required for the application.
DEVICE:
HOST:
1–2:
10BASE-T/
To SFP
To
To
port of
USB host
USB
100BASE-TX/
1000BASE-T to
Ethernet
device
Ethernet switch,
switch or
local network
other
DM-NVX
device, or
device
other DM-NVX
device
ITEM
3:
HDMI
HDMI INPUTS
OUTPUT:
1–2:
To
From
HDMI
HDMI
®
display
audio/video
sources
input or output
PART NUM.
2014966
2003577
AUDIO I/O:
Balanced/
unbalanced
stereo line
level audio
