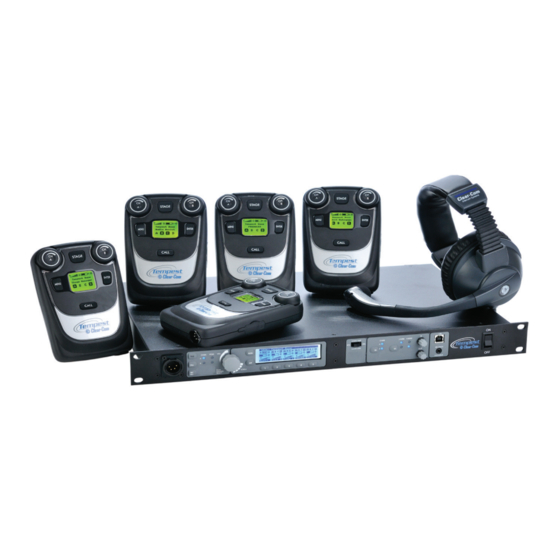

Tempest 2400
®
2 -Channel QuickStart Guide
What's in the box
BaseStation
CM-222 series BaseStation
•
Power Cord
●
2dBi Omni-directional whip antenna
●
3.5mm to 3.5mm 3 conductor data pairing cable
●
» Used to pair a BaseStation to the BeltStation(s)
USB-A to USB-B cable
●
» Used to update BaseStation fi rmware
USB-A to Mini-USB
●
» Used to update BeltStation fi rmware
BaseSync cable
●
» Used if you have more than one BaseStation
Improves RF performance when using multiple systems
●
CD with manual, T-Desk software
●
BeltStation
CP-22 2 series BeltStation
●
Li-Poly rechargeable battery
●
5VDC wall charger with Mini USB connector
●
Remote Transceiver (optional)
Remote RF transceiver
●
RJ-45 to RJ-45 CAT-5 cable
●
2dBi Omni-directional whip antenna (x2)
●
Mounting Plate and screws
●
Directional Antenna Kit (optional)
Directional antennas (x2)
●
Mounting brackets (x2)
●
Antenna Mounting Bar
●
"C" Clamp Mount
●
"RP-TNC" to "N" cables (x2)
●
5 Bay Battery Charger (optional)
Battery Charger
●
AC Cable
●
Note: Charge ALL BeltStation batteries prior to set-up.
What else you may need
Headset, one for each user
●
» May be dynamic or electret microphone, with a 4-PIN
XLR female connector
3-PIN XLR cables to connect to external 2-Wire Intercom
●
system
RJ-45 cables to connect to external 4-Wire Intercom
●
system
RJ-45 cable to connect to PC for T-Desk LAN control
●
81051 9Z Rev B
