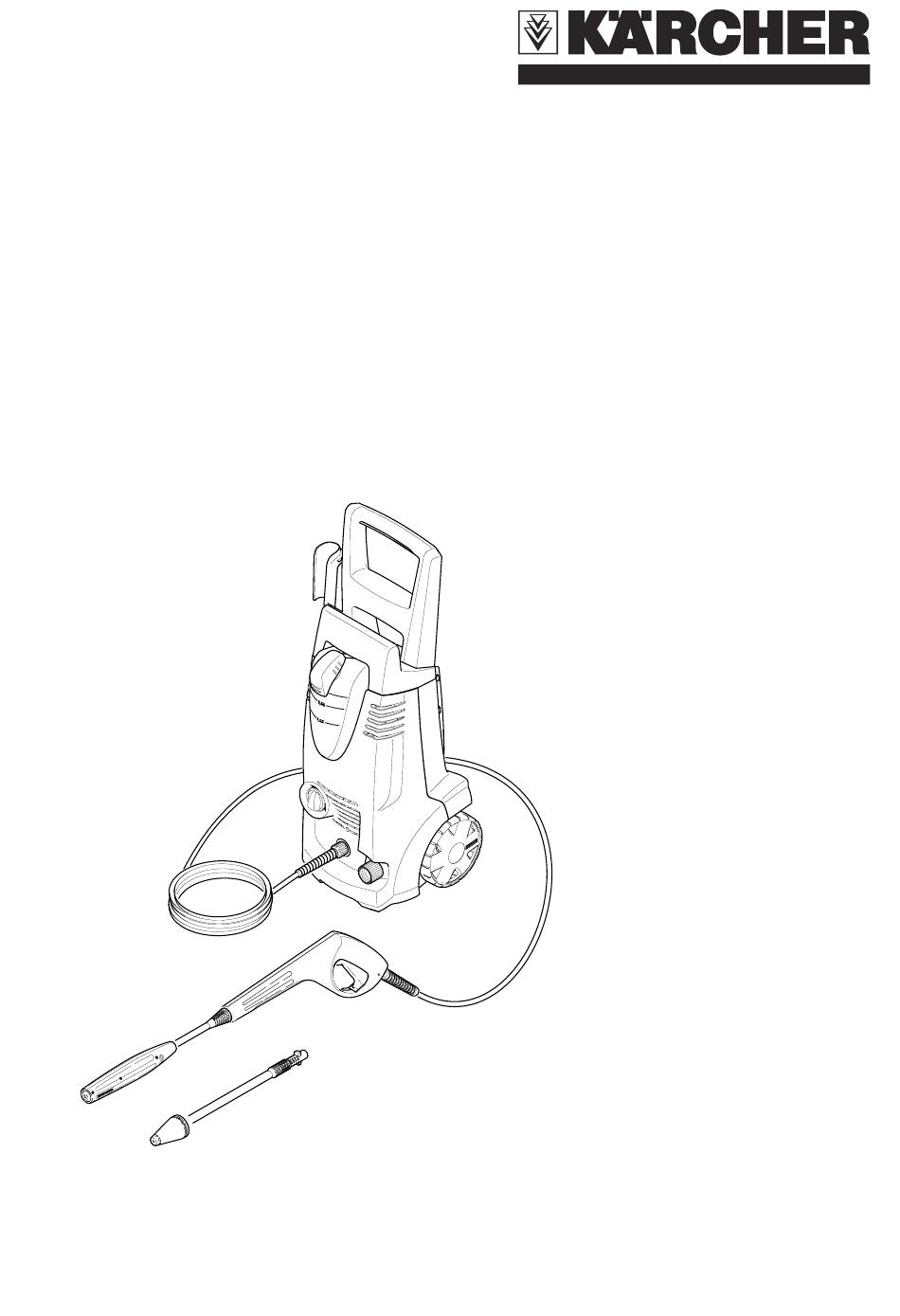

- Page 1 K 3.91 M English Español Français 5.961-806.0 03/06...
-
Page 2: Table Of Contents
HIGH PRESSURE WASHER OPERATOR MANUAL Kärcher Customer Support MODEL OVERVIEW Mexico IMPORTANT SAFETY INSTRUC- 4, 5 TIONS Call: 01-800-024-13-13 for help or visit ASSEMBLY INSTRUCTIONS our website: www.karcher.com.mx OPERATING INSTRUCTIONS 7, 8 Safety Alert Symbols USING THE ACCESSORIES WORKING WITH DETERGENTS DANGER TAKING A BREAK indicates “an imminently hazardous sit-... -
Page 3: Model Overview
MODEL OVERVIEW 1 Power cord with Ground Fault Circuit 12 Trigger Interrupter (GFCI) 2 Water inlet with garden hose con- 13 Trigger gun safety lock nector 14 Vario Power Spray wand 3 High pressure outlet 15 Dirtblaster® (Rotating spray wand) 4 ON/OFF switch CAUTION 5 Detergent tank (removeable) -
Page 4: Important Safety Instruc
IMPORTANT SAFETY INSTRUCTIONS WARNING! physical injuries to the operator and irreversible damage to the machine. When using this product basic To reduce the risk of electrocution, precautions should always be keep all connections dry and off the followed, including the following: ground. -
Page 5: Assembly Instructions
supply. Direct connection via a receiver GROUND FAULT CIRCUIT IN- tank or backflow preventer, for example, TERRUPTER PROTECTION is permitted. This product is supplied with a Ground Dirt in the feed water will damage the Fault Circuit Interrupter (GFCI) built into unit. - Page 6 STEP 2: STEP 5: " " Attach storage for high pressure Place detergent tank into compart- hose and secure with 2 screws ment and attach cap with detergent suction tube. STEP 3: " STEP 6: " Attach the handle and secure with 2 Mount net to the backside of the unit screws.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS STEP 1: " Connect the high pressure hose to the unit’s high pressure outlet. STEP 5: " Plug the Ground Fault Circuit Inter- rupter (GFCI) into a receptacle. Press RESET button, indicator should be “ON”. STEP 2: " Press TEST button, indicator should Insert the spray wand of your choice be “OFF”. -
Page 8: Using The Accessories
STEP 7: " Turn on the high pressure washer (I). The motor starts only if the trigger of the gun is pulled and shuts off when the trigger is released. USING THE ACCESSORIES WARNING Dirtblaster® To avoid serious injury never point This nozzle features a 0º... -
Page 9: Working With Detergents
WORKING WITH DETERGENTS Detergents can only be applied at STEP 5: " low pressure (Min.). Cleaning up: Always draw fresh wa- STEP 1: " ter through the detergent tank when Install the Vario Power Spray Wand. done to flush any remaining deter- Set the spray wand to the low pres- gents from the injection system. -
Page 10: Taking A Break ..Five Minutes Or More
TAKING A BREAK ..five minutes or more STEP 1: " Release trigger and engage gun safety lock. STEP 2: " Turn pressure washer to OFF (O) position. SHUTTING DOWN & CLEAN-UP STEP 1: " Turn the switch to OFF (0) position and unplug cord from outlet. -
Page 11: Winterizing And Long-Term
WINTERIZING AND LONG-TERM STORAGE 1: Disconnect all water connections. of heat as it may dry out the pump " seals. 2: Turn on the machine for a few " seconds, until the water which had CAUTION remained in the pump exits, turn off Failure to follow the above directions immediately. -
Page 12: Cleaning Tips
CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent). Pre-rinse (with or without detergent). Pre-rinse deck and surrounding area with fresh cleaning surface with fresh water. If us- water. If using Kärcher Deck Wash, ap- ing Kärcher Pressure Wash or Degreas- ply to surface at low pressure. - Page 13 pressure washer may remove the Barbecue Grills, Outdoor Power loose paint from the surface. Equipment & Gardening Tools When using on surfaces which might (with or without detergent). Pre-rinse come in contact with food, flush sur- cleaning surface with fresh water. If us- faces with plenty of drinking water.
-
Page 14: Optional Cleaning Accesso
OPTIONAL CLEANING ACCESSORIES Optional accessories are available to your pressure washer by up to 66" with further enhance your cleaning capabili- this extension kit. Includes 4 aluminum ties. These accessories are accurate as sections for variable length. 66" fully as- of the printing date of this manual. - Page 15 the cleaning nozzle in the base of a T 100 Wide Area Surface Cleaner downspout, pull the trigger on the pres- For cleaning surfaces such as patios, sure washer gun and watch as the noz- terraces and driveways without splash- zle shoots out leaves and other debris back, there is no better solution than while climbing upward.
-
Page 16: Troubleshooting
TROUBLESHOOTING Disconnect the machine from the power CAUTION source before making any repair. Symptom Cause Solution Motor will not start On/Off switch is in the “OFF” Turn switch to the “ON” (I) posi- (O) position. tion Power cord is not plugged in. Plug in power cord. Electrical outlet does not sup- Try a different outlet. - Page 17 Symptom Cause Solution No detergent. Detergent suction tube not Check connection. properly connected to the machine. Detergent is too thick. Dilute detergent, for best re- sults use Kärcher detergent. Filter on detergent suction Run warm water through filter tube is clogged. to remove debris.
- Page 18 Kärcher Customer Support USA Call: 1-800-537-4129 for help or visit our website: www.karcher-usa.com Kärcher Customer Service CDN / Service après-vente Kärcher CDN Call: 1-800-465-4980 for help or visit our website: Appeler : 1-800-465-4980 pour obtenir de l'aide ou visiter notre site Web : www.karcher-canada.com Kärcher En MEXICO llame al: 01-800-024-13-13...
