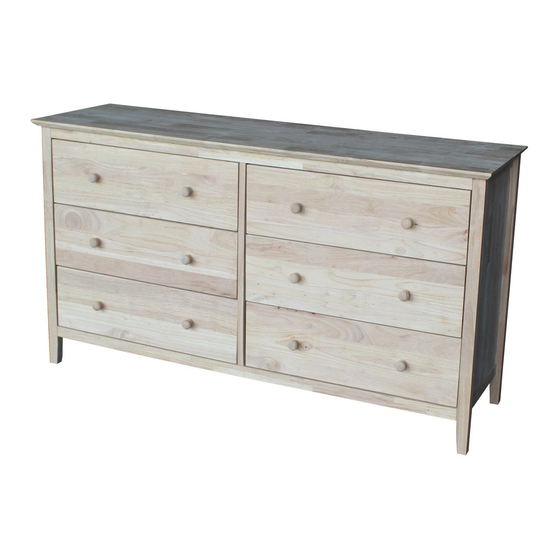

- Page 1 ASSEMBLY INSTRUCTIONS WARNING! Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (steel band included) to secure this product to the wall. Description : BROKLYN 6 DRAWER DRESSER Item No. : BD-8006 ITEM NO.: BD-8006 Printed in Vietnam REVISED DEC 07, 2016 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. -
Page 3: Part List
PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Bottom panel Vertical panel Side panel (L-R) Back rail Back panel Support leg Drawer side (L-R) -
Page 4: Hardware List
HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Bolt Pan head screw (M6 x 30mm) (M4 x 30mm) Spring washer Wooden knob (6.5 x 11mm) - Page 5 STEP 1 Attach the top (A) and bottom panel (B) to vertical panel (C) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (4). STEP 2 Attach the top (A) and bottom panel (B) to side panel (D) with bolts (1), and washers (2) and (3) as shown below.
- Page 6 STEP 3 Attach the top (A) and bottom panel (B) to the other side panel (D) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (4). Attach support leg (G) to vertical panel (C) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (4).
- Page 7 STEP 5 Attach drawer sides (H) to drawer front (I) with screws (5) as shown below. Tighten with a screwdriver. Insert drawer bottom (K) into the grooves at bottom of drawer sides (H) and drawer front (I) as shown below. STEP 6 Attach drawer back (J) to drawer sides (H) with screws (5) as shown below.
- Page 8 STEP 7 Attach support bars (M) to bottom of drawers with screws (8) as shown below. Tighten with a screwdriver. STEP 8 Attach knobs (7) to front of drawers with pan head screws (6) as shown below. Tighten with a screwdriver. Carefully put the drawers into the unit.
- Page 9 STEP 9 Attach steel bands (9) to the unit with screws (10) as shown below. (to secure the product to the wall and reduce the risk of tipping over). Important! Properly attach steel bands (9) to the wall in an area of drywall or plaster with a wood stud: Mark the attachment point(s) with a pencil at the appropriate height positioned over the wood stud(s) in the wall.
