c) The node starts to send data. On the iotsquare cloud server, click the device name, and then click
the application layer real-time data to view the node real-time data.

2.2. Connect to internet in different modes and modes switch

There are wireless WiFi 、wired cable and LTE 4G(optional) three ways to connect to the internet
for RHF2S025.

2.2.1. AP mode

AP mode is RHF2S025's factory default mode. In this mode, the gateway could connect to the
network via DHCP way with a cable. Please connect RHF2S025 network port to the DHCP LAN port of
the router with the network cable.
Except the DHCP, RHF2S025 also supports Static IP access. Please access to the web
configuration to switch the mode.
V0.3 2019-04-23
www.risinghf.com

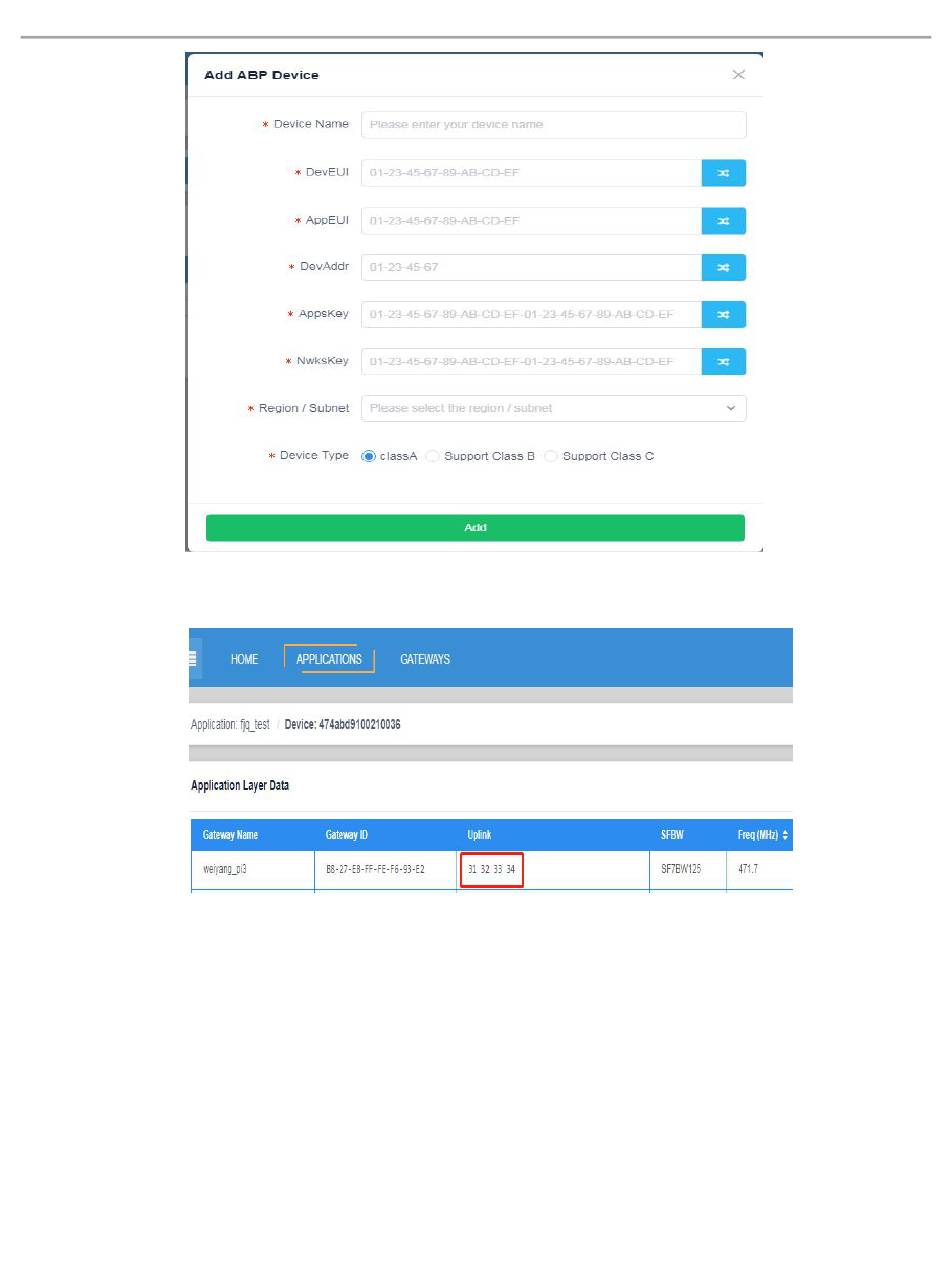

Figure 2- 5 Add the abp node on the iotsquare server
Figure 2- 6 uplink data on the iotsquare server
