Add Device; Add Abp Device - RisingHF RHF2S025 User Manual

RisingHF

2.1.3 Add Device

Select the application, add a node device, select otaa/abp according to the mode of the node, fill
in the node information and frequency plan. Suggested node naming method: node model / product
name _ number.

2.1.3.1 Add abp Device

a) Fill in the device name;
b) Information such as eui/addr is obtained from the node;
c) The key is set by the node, or the default value is used;
d) The frequency plan of the node/gateway/server should be consistent;
e) The device type is compatible with class A by default. For example, the class A node can be omitted,
and the class B/C selects the corresponding option;
f) Click Add;
V0.3 2019-04-23
www.risinghf.com

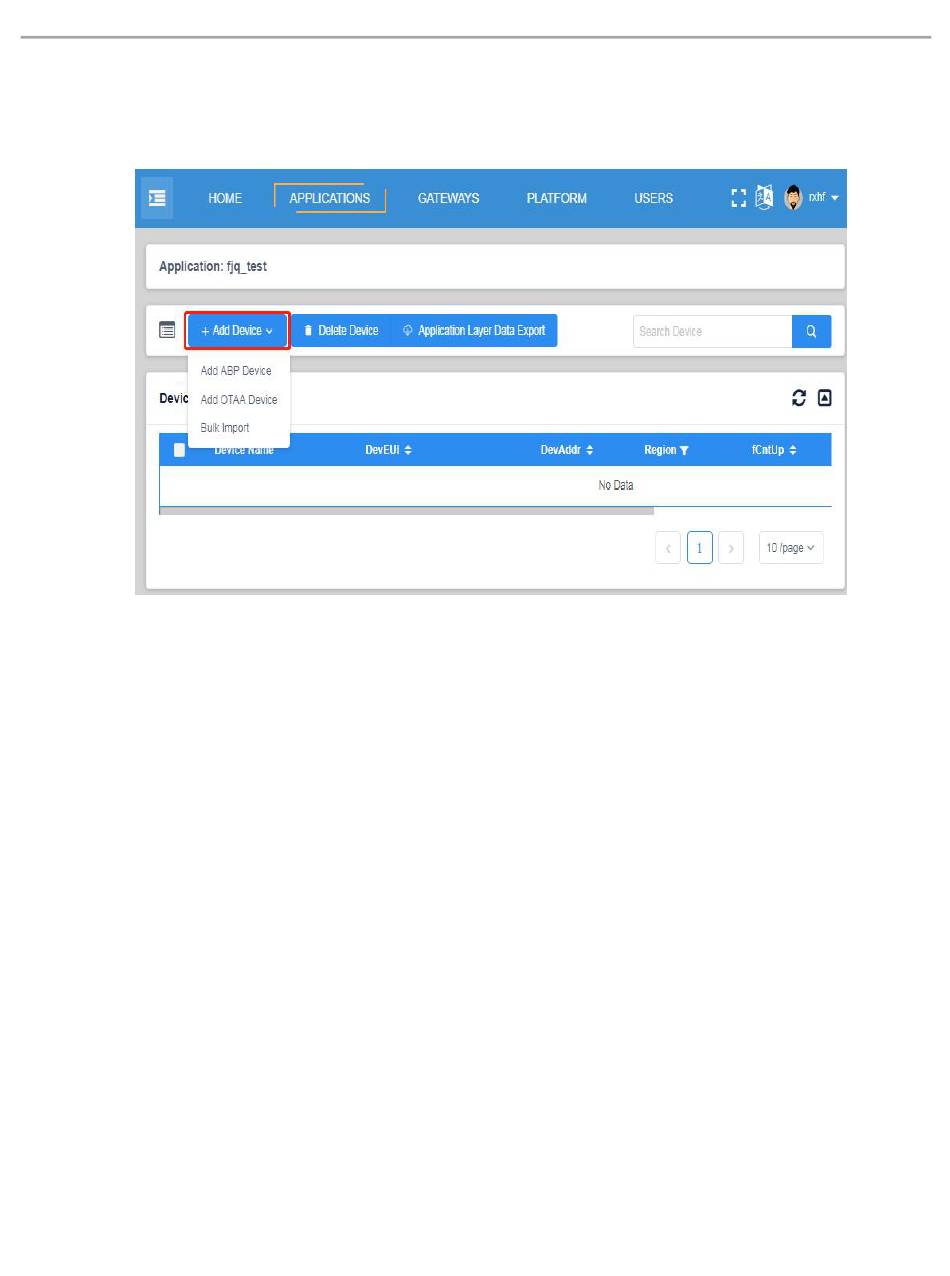

Figure 2- 4 Add node on the iotsquare server
RHF2S025 user manual
7
