5) Click "Switch protocol" to wait for tens of seconds to connect to the internet.

2.2.2. AP/STA mode

In this mode, RHF2S025 gateway will have both AP and STA functions. The gateway will connect
to the internet and cloud server via wireless WiFi, and also provide WiFi services to others stations.
1) On the web page, click Network->Mode
2) Select APSTA in the "Network mode" field and click "Scan wifi"
3) In the StaSsid field, select the gateway SSID you want to connect to and enter the password in
StaKey
V0.3 2019-04-23
www.risinghf.com

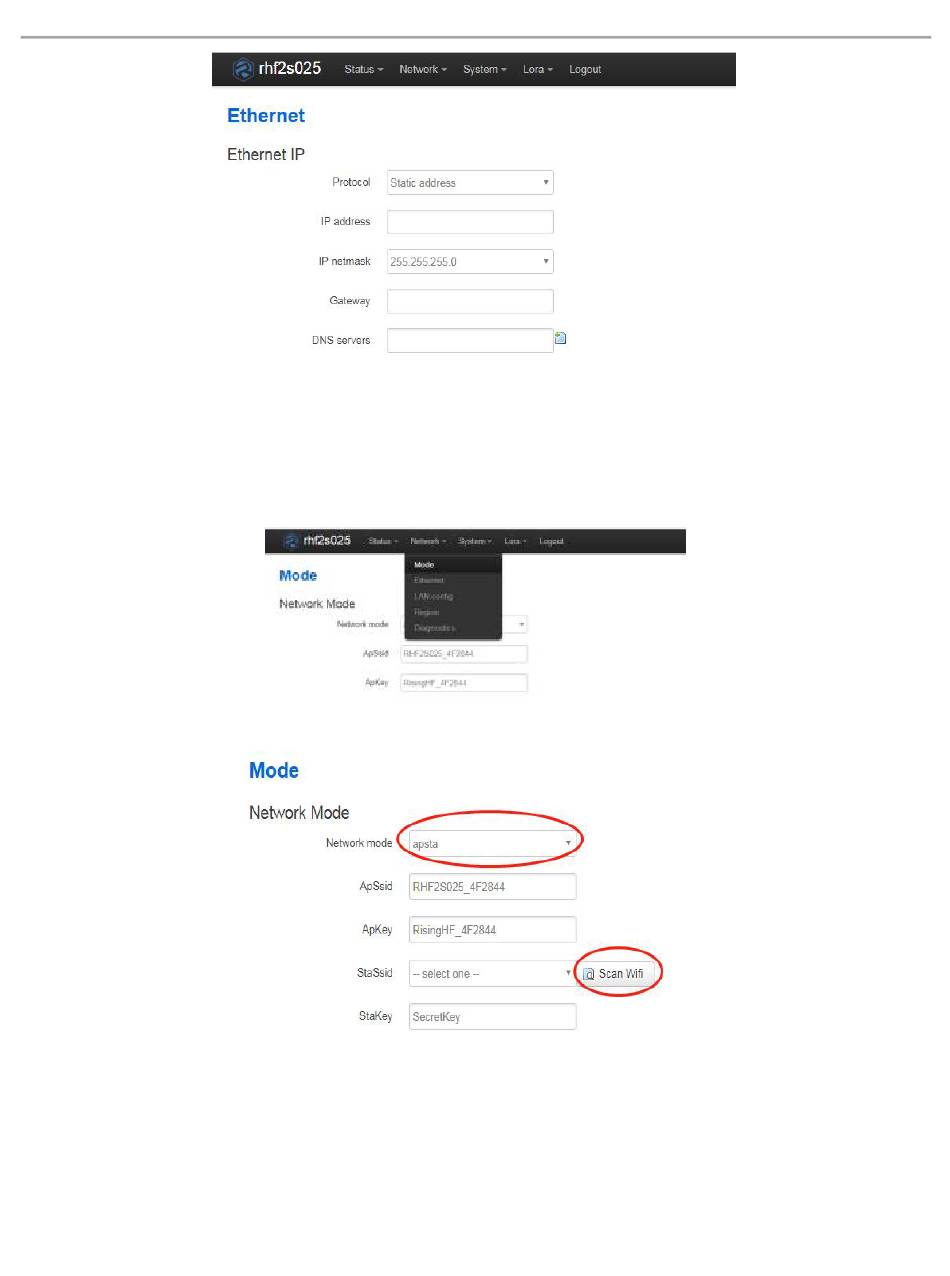

Figure 2- 9 Fill in information with static ip
Figure 2- 10 Enter the mode menu
Figure 2- 11 Select APSTA mode
RHF2S025 user manual
10
