1) RHF3M076 is a USB CDC device. Please install the driver before using it. For installation drivers
please refer to the RisingHF UM01516 User's manual. The driver file can be downloaded from the
RisingHF WiKi or by contacting support@risinghf.com.
2) Open the SSCOM tool and select the COM port and open it.
3) Configure the node/Modem and demo uplink
 //Reset the modem
At+reset
•
 //check or re-wirte the DevAddr
At+id
•
At+id=DevAddr,"01 02 03 04"
•
 //set to ABP mode，ClassA mode
At+mode=LWABP
•
AT+CLASS=A
•
 //set the data rate scheme
At+dr=CN470prequel
•
 //configure the channel (keep the channels same for both GW/server and node side)
At+ch=0,471.5
•
At+ch=1,471.7
•
At+ch=2,471.9
•
• ...
At+ch=7,472.9
•
 //set Rxwin2
At+rxwin2=471.3,dr3
•
 //set initial data rate
at+dr=dr0
•
 //set initial power
AT+POWER=20
•
 //ADR ON or OFF
AT+ADR=ON
•
 //Configure Nwkskey and Appskey (keep the keys same for both server and node side)
AT+KEY=NwkSKey, "2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C"
•
AT+KEY=AppSKey, "2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C"
•
 //disable duty cycle function (please follow the local rules)
at+lw=dc,off
•
At+lw=jdc,off
•
V0.3 2019-04-23
www.risinghf.com

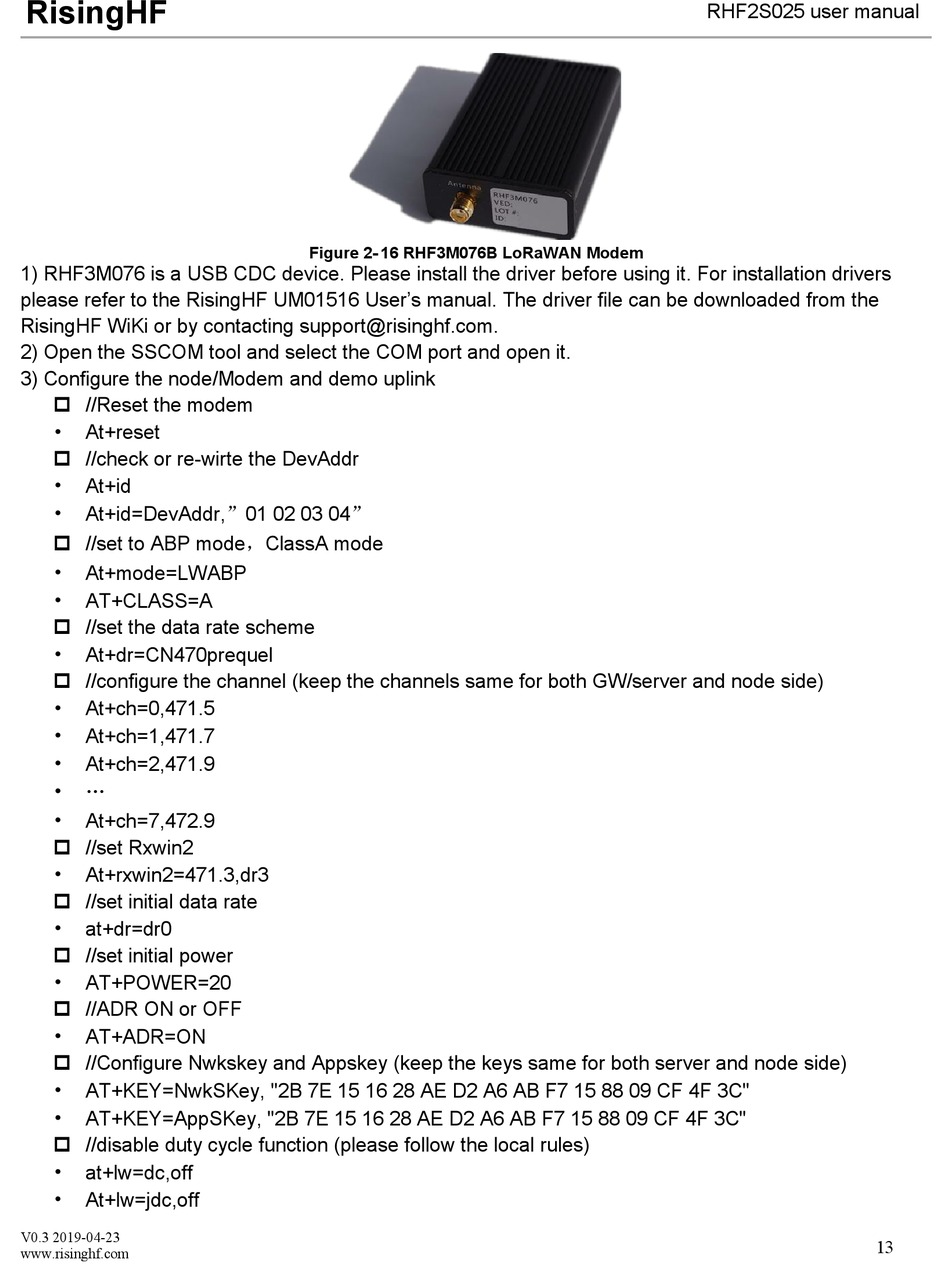

Figure 2- 16 RHF3M076B LoRaWAN Modem
