Port: Cloud server upstream and downstream ports.
Global Config：RHF2S025 is built-in configuration file to modify frequency channels. Please check
the HW of the gateway before doing the channel modifications.
Note: The above configuration options vary depending on the SDK, and the options may be
reduced.
Click Submit to submit the above configuration changes.

3.3. Led instruction

RHF2S025 panel provides a total of six LED for functional instructions, which make users know the
different status of the device. They are Power, System, WiFi, LoRa,USB and 4G instruction LEDs. In
the network RJ45 port there is another LED to show network status.
Power led
System led
V0.3 2019-04-23
www.risinghf.com

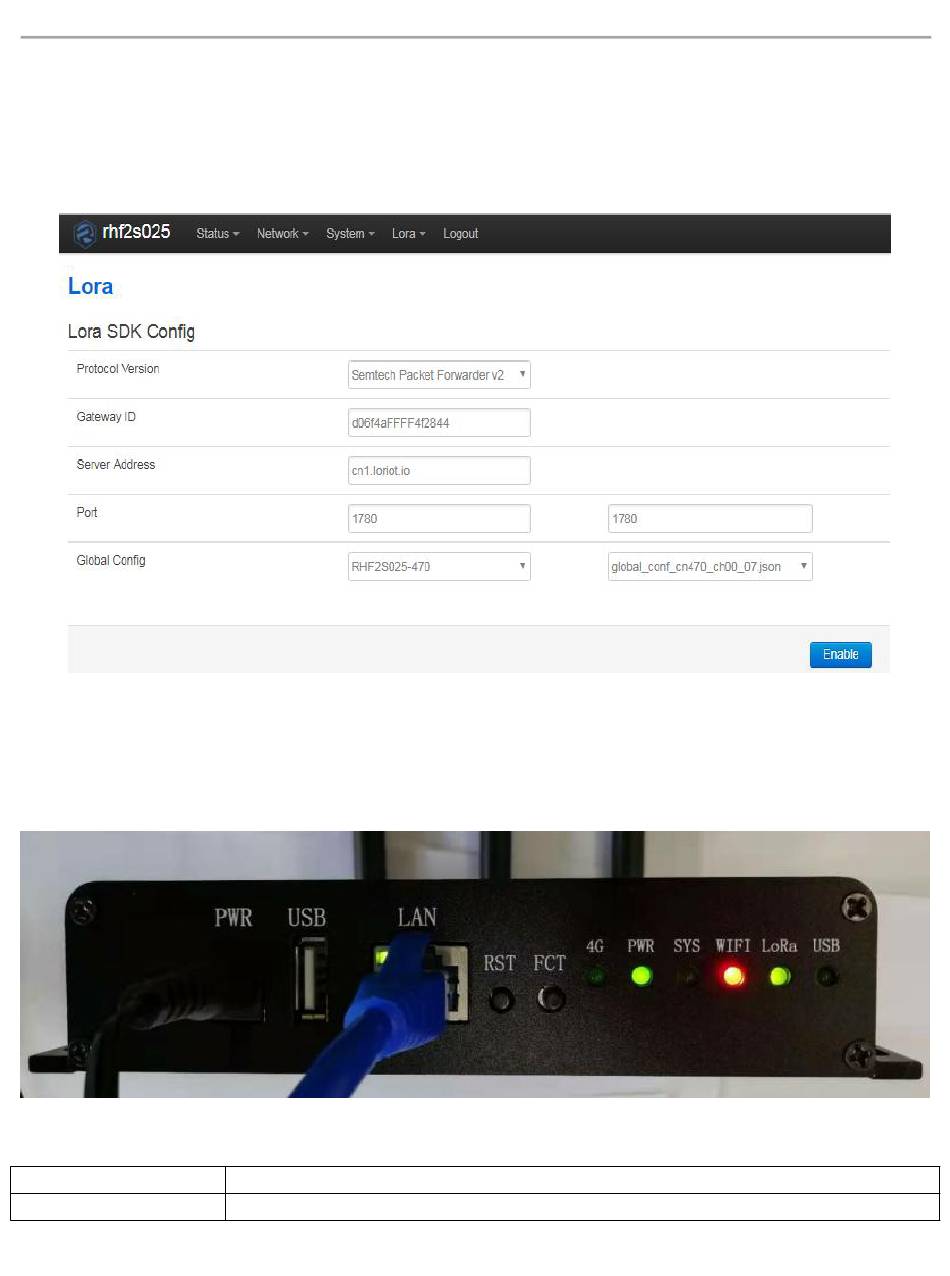

Figure 3- 4 LoRa SDK configuration
Figure 3- 5 RHF2S025 panel display
Table 3- 1 Led descriptions
Power ON.
When the system is fully activated, the led shows green and blinks slowly;
