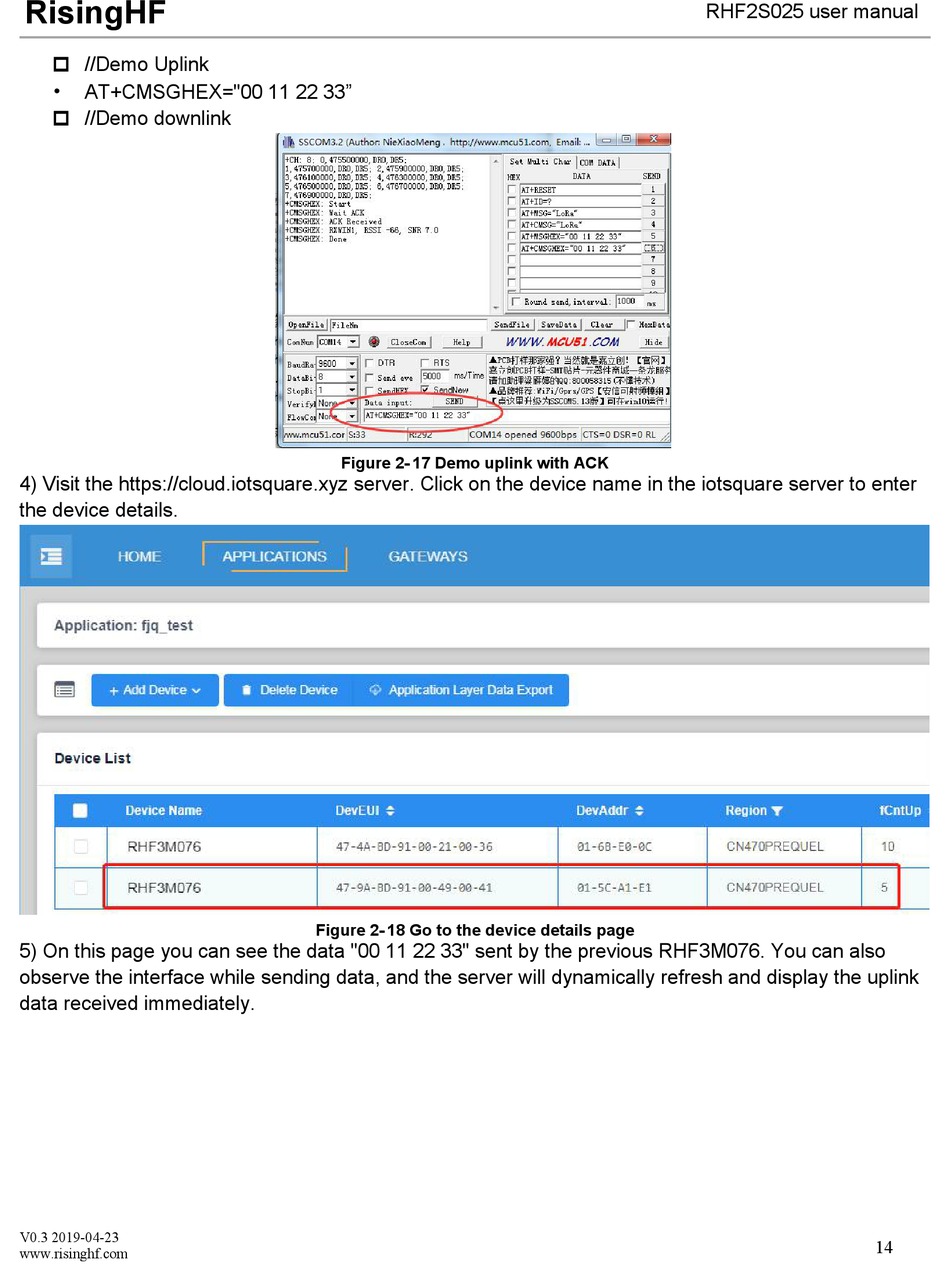

RisingHF RHF2S025 User Manual page 14

RisingHF
 //Demo Uplink
AT+CMSGHEX="00 11 22 33"
•
 //Demo downlink
4) Visit the https://cloud.iotsquare.xyz server. Click on the device name in the iotsquare server to enter
the device details.
5) On this page you can see the data "00 11 22 33" sent by the previous RHF3M076. You can also
observe the interface while sending data, and the server will dynamically refresh and display the uplink
data received immediately.
V0.3 2019-04-23
www.risinghf.com
Figure 2- 17 Demo uplink with ACK
Figure 2- 18 Go to the device details page
RHF2S025 user manual
14
