3. Advanced operation

3.1. Login on the web

RHF2S025 is built-in a web which could be configured by users. The user can access the
"192.168.100.1" into the web configuration interface. Default login user name: admin, password: admin.
RHF2S025 factory default mode is the AP mode, and there are two ways to login into web interface.
Use your PC to scan the device SSID (ie WiFi name) which is "RHF2S025_XXXXXX", "XXXXXX"
stands for the last 3bytes of the device MAC address. After connection succeeding, use the browser to
access 192.168.100.1 into the web configuration page.
Connect the gateway to a router and use DHCP service to get the ip of the device. The hostname
of the gateway also is rhf2s025.
1) Access the ip and open the web page:
V0.3 2019-04-23
www.risinghf.com

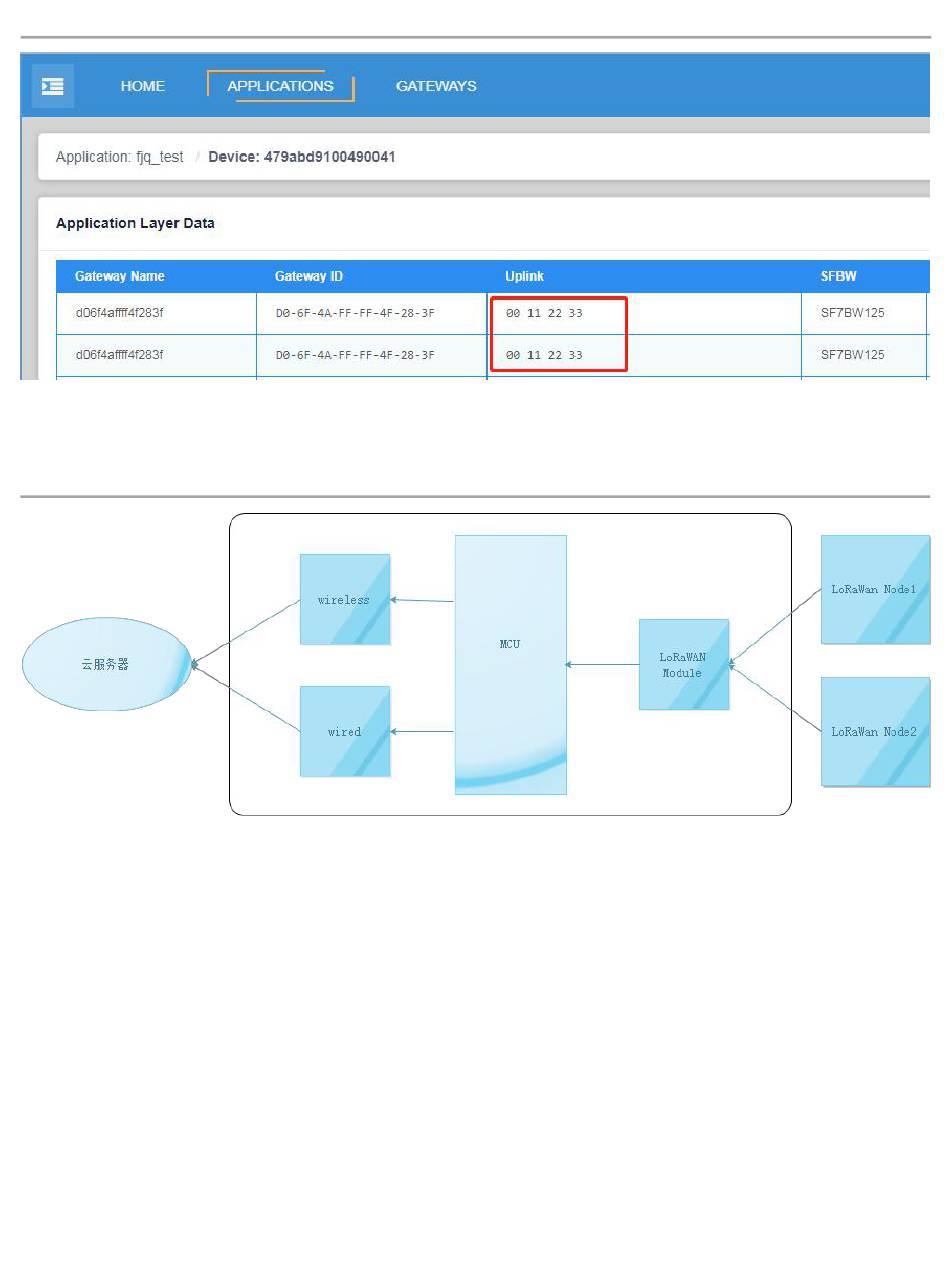

Figure 2- 19 Uplink data received
Figure 3- 1 LoRaWAN communication structure
