Connecting To The Console Port; Figure 5 - Connecting The Y-Cable - Polycom VIU-323 User Manual

Installing the VIU-323
Port 1
26-Pin Male
Connector
RS-366
Female
Connector
V.35 Female
Connector
V.35 RS-366
Cable Cable
V.35 Port RS-366 Port V.35 Port RS-366 Port
H.320 Room System

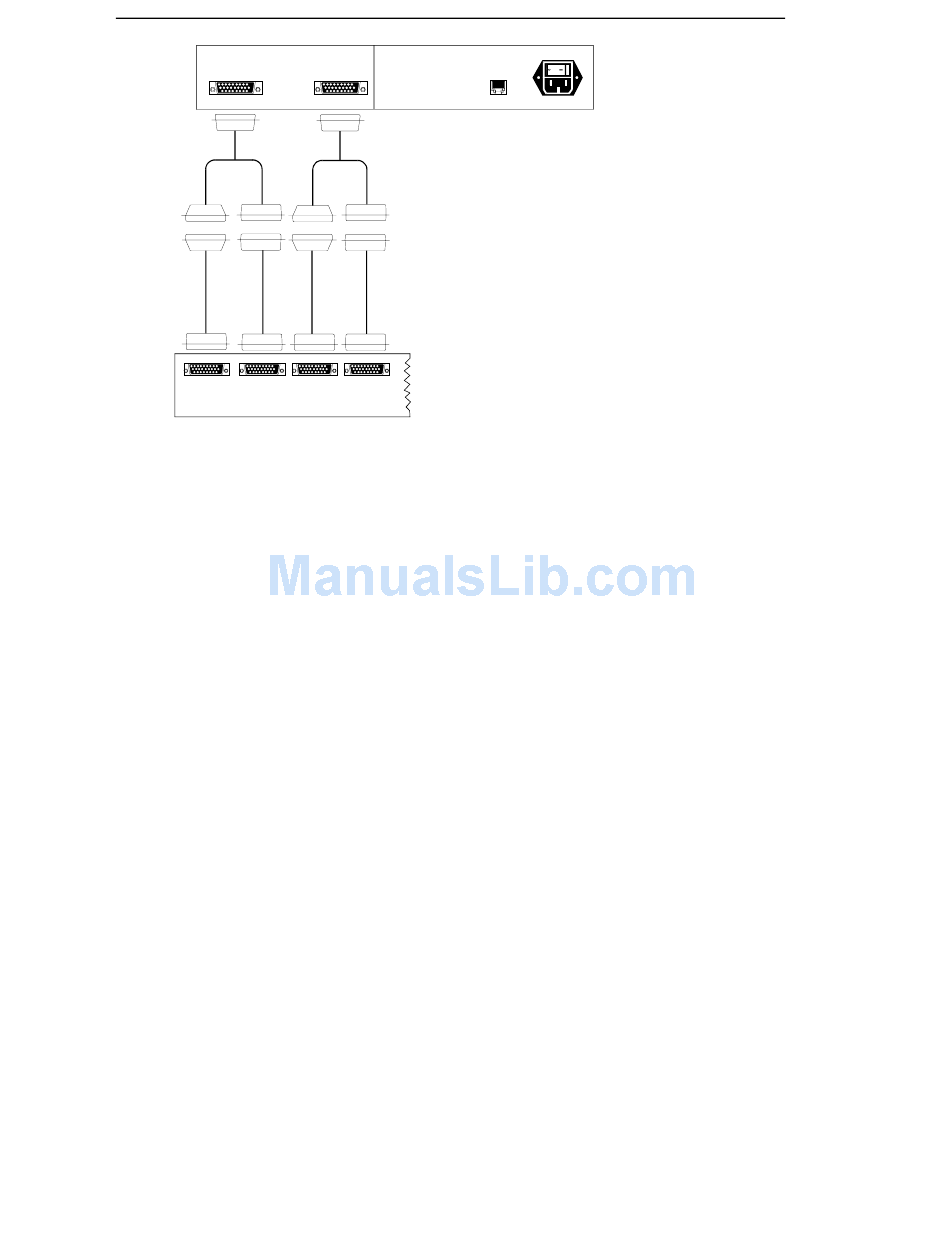

Figure 5 - Connecting the Y-Cable

Connecting to the Console Port

The console (serial) port on the front of the VIU-323 is used to connect the VIU-323 to a PC
or modem.
Use a null modem (crossover) cable to connect the console port's female 9-pin D-type
connector to the configuration PC or modem. For information, see "Appendix A."
From VIU-323 to PC
Connect the VIU-323 console port to a PC to:
3-6
Port 2 LAN 1
26-Pin Male
Connector
V.35
Female
Connector
RS-366 Female
Connector
V.35 RS-366
Cable Cable
POWER
100-240 VAC
