VIU-323 Physical Description

The VIU-323 is built in a low-profile unit designed to comfortably fit in the cabinet of your
H.320 videoconferencing system or in a 19-inch rack.
Front Panel
The VIU-323 front panel contains LEDs and an asynchronous RS-232 serial port that you
can connect to a PC or a modem. Use this port to run a terminal session for defining IP
addresses or running diagnostics.

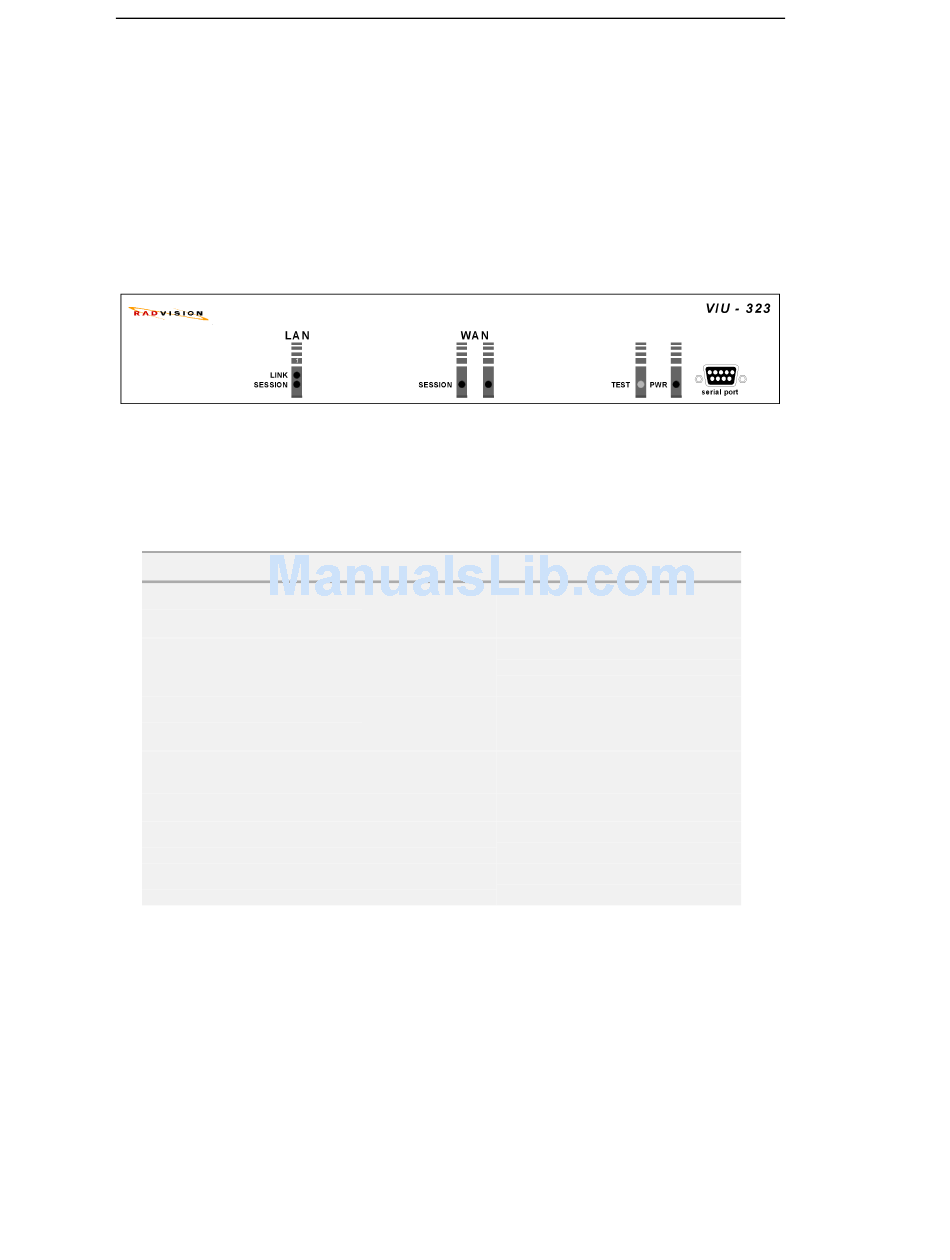

Figure 1 - VIU-323 front panel

LEDs
Front panel LEDs indicate device status and LAN and WAN activity:
LED
Power and Self Test
PWR
TEST
WAN
SESSION (1)
SESSION (2)
LAN
LINK
SESSION
1-2
Color Indicates
Green Power is switched on.
Red VIU-323 is powering up or is being
configured. This turns off after the
VIU-323 successfully powers up.
Green Indicates videoconferencing activity
Green Indicates videoconferencing activity
for two-channel (2B) calls only.
Green LAN link is present; port is
connected to the network.
Green Indicates videoconferencing activity
on the LAN.
