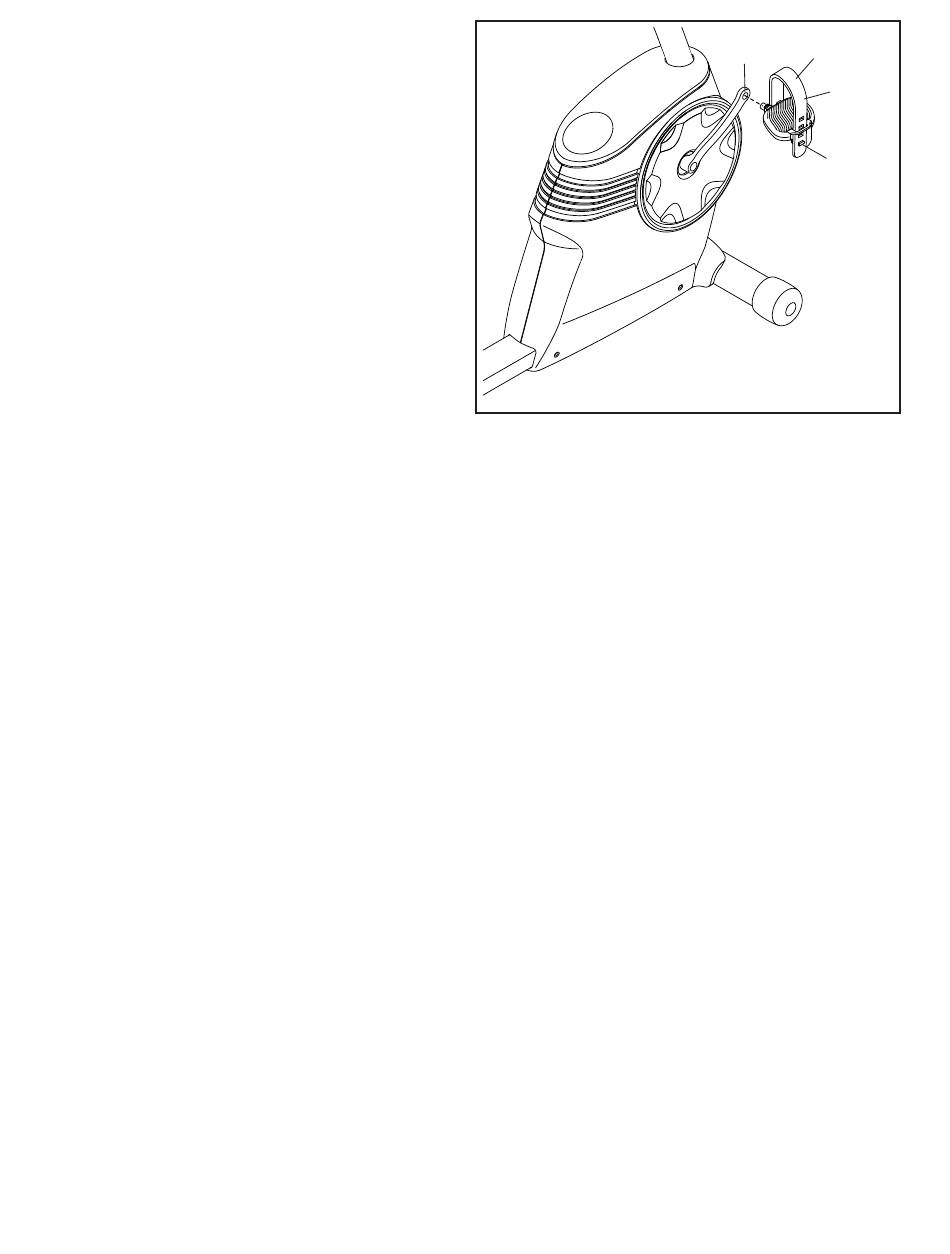

14. Identify the Right Pedal (36), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (36) clockwise into the Right Crank
Arm (83).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm (not
shown).
Adjust the right strap to the desired position, and
press the ends of the straps onto the tabs on the
Right Pedal (36). Adjust the strap on the Left
Pedal (not shown) in the same way.
15. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
14
11
Strap
83
36
Tab
