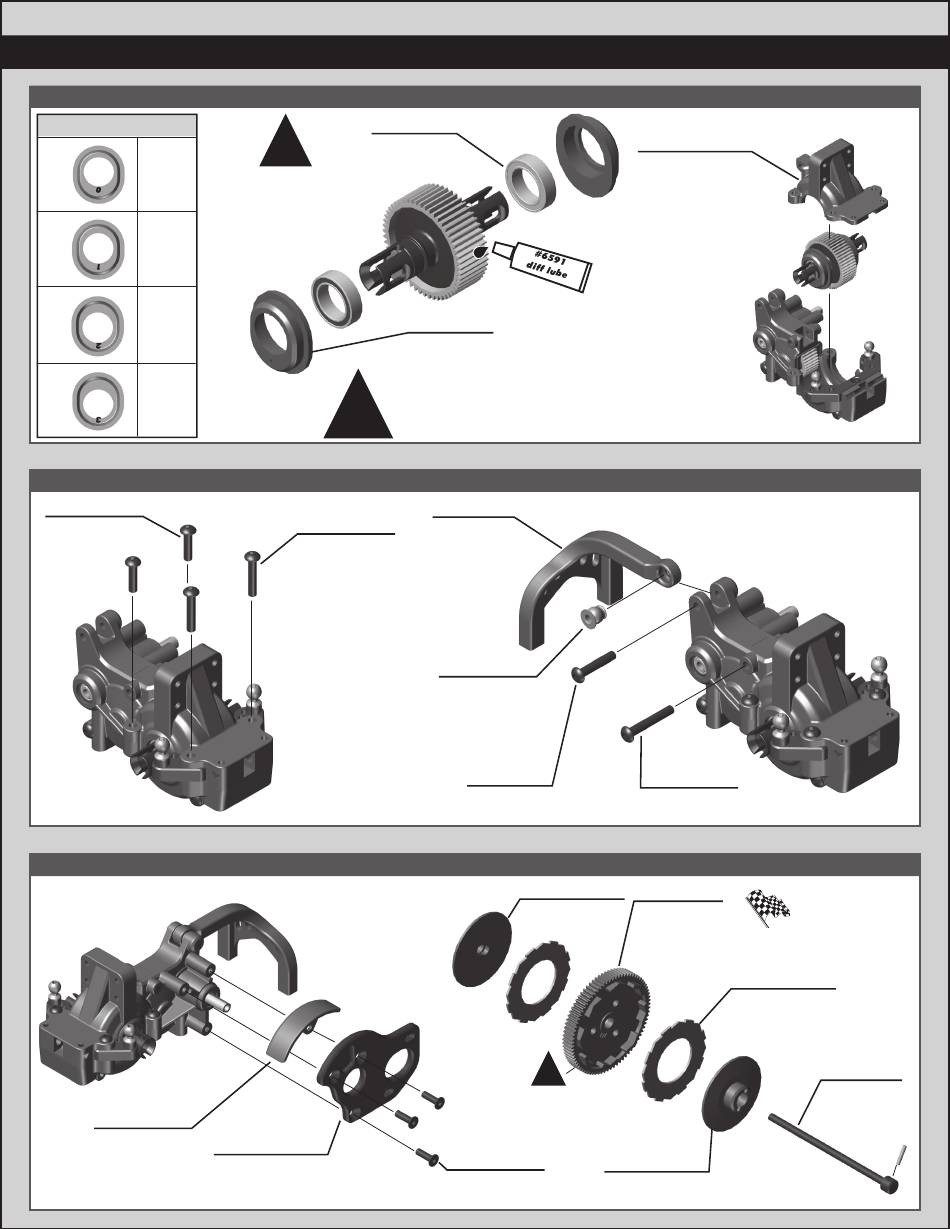

:: Bag 6 - Step 2 :: Bag 6 - Step 2
Diff Height
3
3
Kit
Setup
2
2
1
1
0
0
:: Bag 6 - Step 3 :: Bag 6 - Step 3
x2 x2
89202
3 x 12mm
BHCS
:: :: Bag 6 - Step 4 Bag 6 - Step 4
91813
B6.1 Gear
Guard
91563
!
10x15x4
Bearing
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
!
x2 x2
89203
3 x 16mm
BHCS
71145
T6.2 Laydown
Motor Plate
x2 x2
x2 x2
91792
B6.1 Diff
Height Insert
Diff Height Inserts:
The number on top is the
setting. Stock diff height is
3-0, 3 on top.
91709
Laydown
Chassis
Brace
91819
B6.1 Shock
Pivot Ball
89203
3 x 16mm
BHCS
91803
B6.1 Slipper
Hub, Inner
!
#92295 spur gear
walls should point
away from gear box.
x3 x3
25202
3 x 10mm
FHCS
91791
B6.1 Laydown
Gearbox Top
25188
3 x 20mm
BHCS
92295
Octalock
Spur Gear,
78T 48P
92288
Octalock
Slipper Pad,
19mm
91804
B6.1 Slipper
Hub, Outer
There's also a
72T, 48P spur
gear (#92293)
included for
stock motor use!
x2 x2
91799
B6.1 Top
Shaft Screw
and Pin
