Associated Electrics RC10B6.2 KIT Assembly Manual

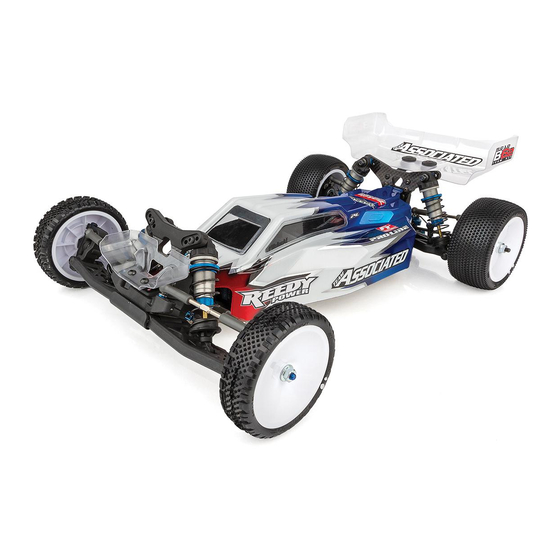

1:10 scale 2wd electric off road competition buggy kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC10B6.2 KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10B6.2 KIT

Summary of Contents for Associated Electrics RC10B6.2 KIT

  • Page 2 New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before you start to build. :: RC10B6.2 KIT Features :: RC10B6.2 KIT Features • Lightweight 7075-T6 hard anodized and +3mm increased length •...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91749) 3x7x3mm (91475) Aluminum (8545) 2.5x8mm (31448) 2.5x6mm (31520) 5x8x2.5mm (31400) 3x8mm (25201) 2.5x8mm (31521) Aluminum (8553) Titanium (91592) 5x10x4mm (91560) 2.5x10mm (31522)
  • Page 4 Each part in the This symbol indicates a Racers Tip. foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 1/20 :: Bag 1 - Bag 1 - Step 1 Step 1 Front 91475 3 x 7 x 3 Ball Bearing 91667 Note orientation Steering of steering rack. 91475 Bellcrank 3 x 7 x 3 (Right) Ball Bearing 91667 Steering Rack 31382 91048...
  • Page 6 :: Bag 2 Bag 2 - - Step 1 Step 1 91850 Chassis, 91656 B6.2 Bulkhead There are two bulkhead settings (25 °, 30 °). 25 ° is the standard used. The arrow should point forward for the desired setting. 25204 M3 x 16mm FHCS...
  • Page 7 :: Bag 2 Bag 2 - - Step 4 Step 4 91719 Servo Mount Align the servo horn 90 degrees 91728 Servo Spacers 89218 M3 x 8mm 31532 Washer M3 x 8mm #91728 - Servo Spacers BHCS are not required for all servos. :: Bag 2 Bag 2 - - Step 5 Step 5...
  • Page 8 :: Bag 2 - Bag 2 - Step 7 Step 7 91685 Front Bumper 91670 25204 25225 Front Hinge Pin M3 x 16mm M3 x 3mm (Inner, 3x34mm) FHCS Set Screw :: Bag 2 - Step 8 Bag 2 - Step 8 #91865 - Front Wing Mount is used as a tuning option to Use the outer most hole on increase front end stabillity by adding a front wing (included).
  • Page 9 :: Bag 3 - Step 2 Bag 3 - Step 2 91049 91776 25215 31532 Heavy-duty Caster M3 Locknut, M3 x 8mm Ballstud, Block black There are three caster BHCS 10mm block inserts included (0°, +/- 2.5 °, +/- 5 °). +5 °...
  • Page 10 :: Bag 4 - Step 2 Bag 4 - Step 2 The (#91772) C and (#91688) D aluminum arm mounts allow for a large amount of setup combinations when using the (#92014) 0.5° and 1° arm mount inserts. Toe-In Anti-Squat C Plate For a complete list of pill setup combinations, please Out 1°...
  • Page 11 :: Bag 5 - Step 3 Bag 5 - Step 3 31522 91780 M2.5 x 10mm Gear Diff BHCS Sun Gear 91785 Gear Diff Outdrive 91782 Gear Diff Gasket Fill to top of the cross pins :: Bag 6 - Step 1 Bag 6 - Step 1 31448 91791...
  • Page 12 :: Bag 6 - Step 3 Bag 6 - Step 3 91791 Diff Height Add a drop of Diff Lube B6.1 Laydown (#6591 - not included) to Gearbox Top the teeth of the diff gear, idler gear, and top shaft. 25225 Setup M3 x 3mm...
  • Page 13 :: Bag 6 - Step 6 Bag 6 - Step 6 91801 25612 Slipper Spring M3 Locknut, 91801 Adapter, Inner Flanged Slipper Spring Adapter, Inner 91801 Slipper Set nut Spring flush with top shaft. 25204 M3 x 16mm 25202 FHCS See page 20 for gear M3 x 10mm mesh, and slipper clutch...
  • Page 14 :: Bag 7 - Step 2 Bag 7 - Step 2 91563 10 x 15 x 4 91438 Bearing Coupler 91860 91859 CVA Bone, B6.2 CVA 69mm Axle, +2mm 91438 91567 CVA Pin 5 x 12 x 4 Bearing Build x2 Build x2 (right and left side) :: Bag 7 - Step 3 91436...
  • Page 15 :: Bag 8 - Step 2 Bag 8 - Step 2 91722 91723 91722 Ball Cup Turnbuckle Ball Cup 3x48mm Front Camber Turnbuckle 26.90mm Racers Tip: Orient the notch Use black grease to the left throughout the (#6588) on the car.
  • Page 16 :: Bag 9 - Step 2 Bag 9 - Step 2 There is a short and long shock eyelet. long shock eyelet. Front and rear shocks use the long eyelet. 4187 Nylon Spacer, (.030) Front: 0 spacers Short / Long Rear: 1 spacers 91820...
  • Page 17 :: Bag 9 - Step 5 25612 M3 Locknut w/Flange Use outside hole in front arm! Make sure the flange on the shock pivot ball is towards the rear arm. 25188 25187 25612 M3 x 20mm M3 x 14mm M3 Locknut BHCS BHCS w/Flange...
  • Page 18 :: Bag 10 - Step 3 Bag 10 - Step 3 Battery 89218 not included! 3 x 8mm 31531 31531 91731 Washer M3 x 6mm M3 x 6mm Battery BHCS BHCS Strap, B6 Front Front 91731 B6 Battery Strap Nut :: Bag 10 - Step 4 Bag 10 - Step 4 91863...
  • Page 19 :: Bag 10 - Step 6 Bag 10 - Step 6 Body Trimming / Mounting: Body Trimming for Length: There are 2 body trimming options depending There are 2 body trimming options depending on what transmission you choose to run. on what transmission you choose to run.
  • Page 20 :: Tuning Tips :: Tuning Tips Painting: Your Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).
  • Page 21 :: Tuning Tips (cont.) :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.

  • Page 22: Ride Height

    :: Tuning Tips :: Tuning Tips Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link (or lowering the ball end) will give the front end less roll and quicken steering *Raise or lower the response.
  • Page 23 :: Shocks :: Shocks :: Ball Differential :: Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.5mm Washer 6575...
  • Page 24 :: Transmission :: Transmission 25188 M3 x 20mm BHCS 89203 25202 M3 x 10mm FHCS 25204 M3 x 16mm FHCS 89203 31383 Ballstud Washers, 5.5x2.0 mm, 89202 blue aluminum 31448 M2.5 x 8mm FHCS 91791 31532 M3 x 8mm BHCS 89202 M3 x 12mm BHCS 89203...
  • Page 25 :: Gear Differential :: Gear Differential 31522 M2.5 x 10mm BHCS 91563 31522 91563 FT Bearings, 10x15x4 mm 91792 91780 B6.1 Gear Differential Rebuild 91782 91782 B6.1 Gear Differential Seals 91783 B6.1 Gear Differential Case 91785 91780 91784 B6.1 Aluminum Cross Pins 91783 91785 B6.1 Gear Differential Outdrives...
  • Page 26 :: Front Arm :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25187 91048 25215 M3 Locknut, Black 31382 FT Ballstud Washer, aluminum1mm 31510 M2 x 4mm BHCS 91049 31532 31531 M3 x 6mm, BHCS 31382 25215 31532 M3 x 8mm, BHCS...
  • Page 27 :: Front Shock Tower :: Front Shock Tower 25188 M3 x 20mm BHCS 25202 M3 x 10mm FHCS 25612 M3 Locknuts w/Flange 31530 M3x5mm BHCS 89208 M3x14mm FHCS 91768 B6.1 Front Shock Tower 91771 91771 B6.1 Shock Tower Covers 91768 25188 91815 91815...
  • Page 28 :: Front Bulkhead / Steering :: Front Bulkhead / Steering 25187 M3 x 14mm BHCS 25204 M3 x 16mm FHCS 25211 M3 x 10mm BHCS 25225 M3 x 3mm Set Screw 31283 Ball Studs, Long, 5mm 31382 Ballstud Washers, 5.5x1.0 mm, blue aluminum 89202 M3 x 12mm BHCS...
  • Page 29 :: :: Factory Team and Option Parts Cont... Factory Team and Option Parts Cont... :: Factory Team and Option Parts Factory Team and Option Parts 1369 FT Alum. Clamping Servo Horn 23T, 15.5 mm 91802 B6.1 Vented Slipper Hub, (inner) 1370 FT Alum.
  • Page 30 :: Reedy Competition Motors & Spare Parts :: Reedy Competition Motors & Spare Parts :: Reedy Chargers / :: Reedy Chargers / Charger Accessories Charger Accessories Sonic 540-M3 6.5 5.0mm 1S-2S Balance Charge lead w/SP Clip (4mm) Sonic 540-M3 6.0 4.0mm 1S-2S Balance Charge lead w/SP Clip (4mm) Sonic 540-M3 5.5 27200...

  • Page 31: Contact Information

    :: Contact Information :: Contact Information Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! Associated Electrics, Inc. 21062 Bake Parkway Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com...
  • Page 32 B6.2 Kit Setup Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Front Suspension: Ride Height: 16mm Bump Steer Spacing: Ball Stud Spacing: Camber: -1° Toe: +1° #91680 +1 Anti-Roll Bar: #91822 Blue, 1.0mm Steering Plate: Arm Type: #91673 Gull-Wing, Standard Axle Height: Tower Type:...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Front Suspension: Ride Height: Bump Steer Spacing: Ball Stud Spacing: Camber: Toe: Anti-Roll Bar: Steering Plate: Arm Type: Axle Height: Tower Type: Steering Stop Spacing: Ball Stud Spacing: Caster Block Insert: Steering Block: Bulkhead Type:...
